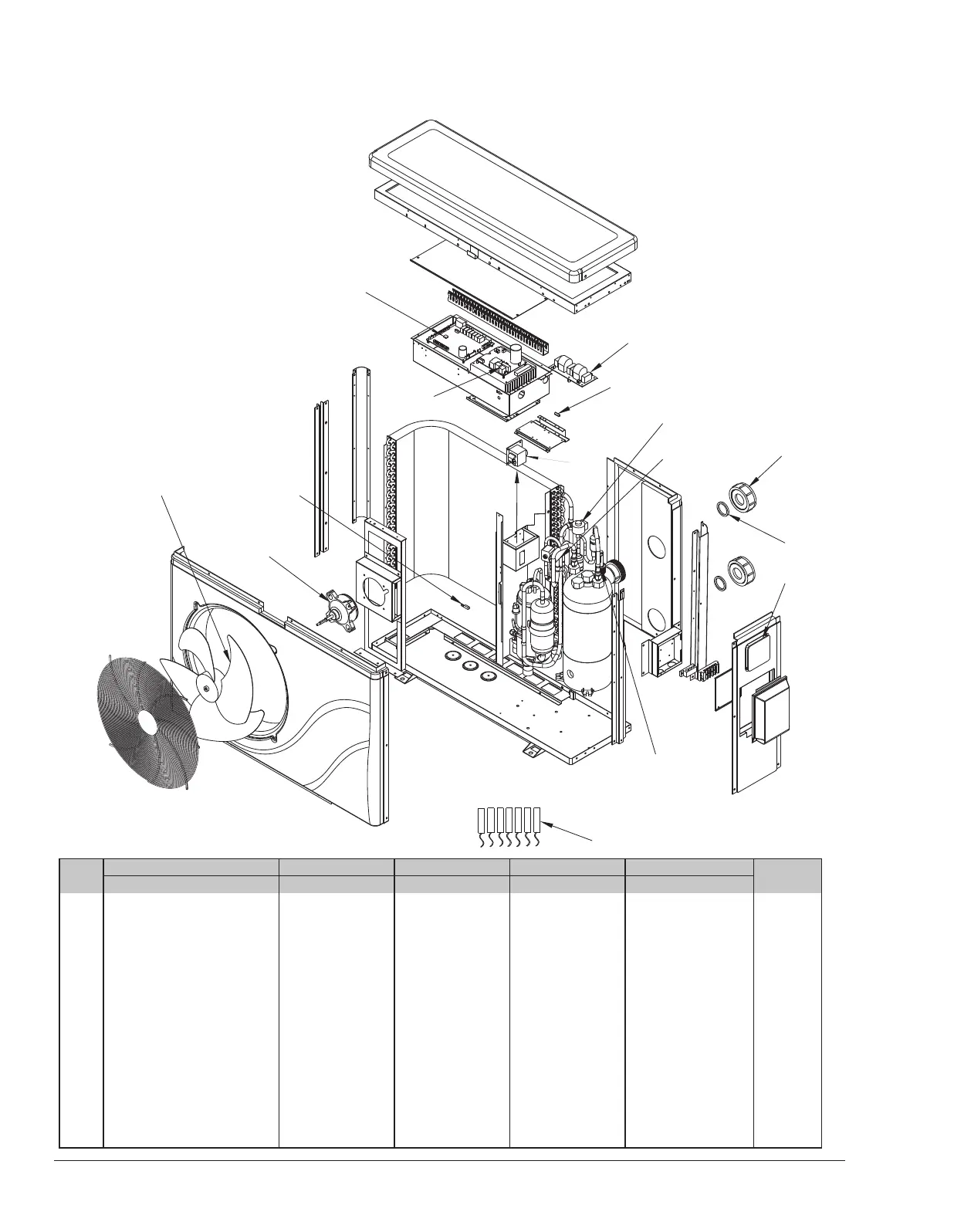

11. ILLUSTRATED PARTS LIST
1
4
2
5
3
8
9
10
6
7
12
13
14
15
F10768
INVERTER MODELS CROSSWIND-30-I CROSSWIND-40-I CROSSWIND-50-I CROSSWIND-65-I
DESCRIPTION (Kit P/N) (Kit P/N) (Kit P/N) (Kit P/N)
1 Water flow switch H000404 H000404 H000404 H000404 241808
2 PC board H000405 H000405 H000405 ?H000405 241809
3 Power filter plate H000406 H000406 H000406 H000406 241810
4 touch controller H000407 H000407 H000407 H000407 241811
5 Inverter board H000408 H000408 H000408 H000408 241812
6 fan motor H000409 H000409 H000409 H000409 241813
7 Fan blade H000410 H000410 H000410 H000410 241814
8 Electronic expansion valve coil H000411 H000411 H000411 H000411 241815
9 4-way valve coil H000412 H000412 H000412 H000419 241816
10 Water unions H000413 H000413 H000413 H000413 241817
11 Water union gasket H000414 H000414 H000414 H000414 241818
12 Full Set of Sensors H000415 H000415 H000415 H000415 241819
13 Reactor H000416 H000416 H000416 H000420 241820
14 Fuse H000417 H000417 H000421 H000422 241821
15 Drain kit H000418 H000418 H000418 H000418 241822
CALL
OUT
Instruction
P/N
Inverter Models
6100.64_Crosswind.indd 24 11/26/2019 4:16:50 PM
