2.3 Water & Gas Circuit Connection
2.3.1 Water Circuit
Figure 2-1 indicates a suggested connection method.

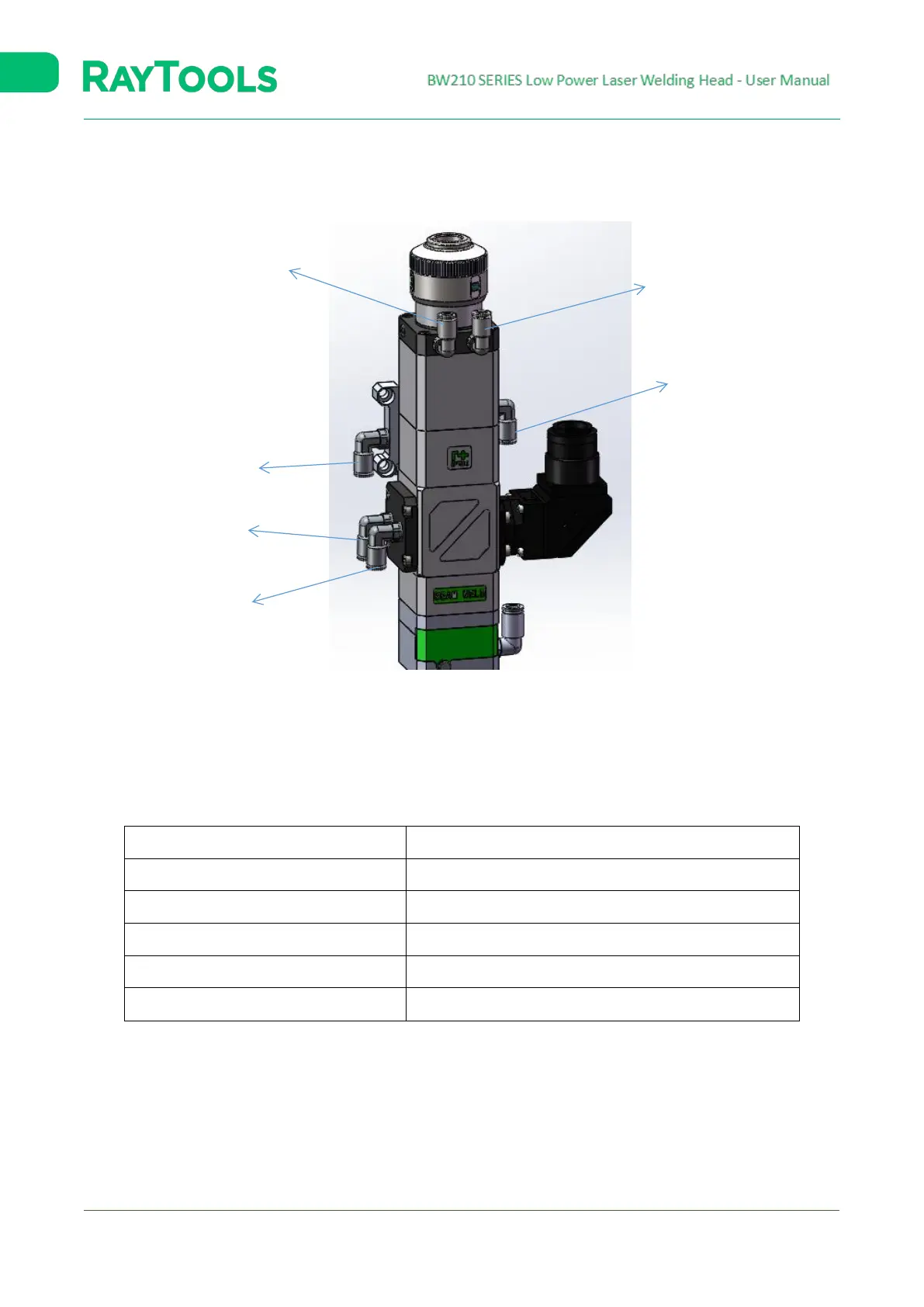

Fig. 2-1 Water Circuit Connection
Use a water tube (Ф6mm) to make a loop by connecting interface 2-3-4-5
Interface 1: water inlet; Interface 6: water outlet
Water cooling specifications
Minimum flow speed
1.8L/min (0.48gpm)
Water pressure
＞ 0.4Mpa
Entry temperature
≥ room temperature
＞
dew point
Hardness
(relative to CaCO3) ＜ 250mg/L
PH range
6 to 8 (deionized or distilled water)
Particle size allowed
＜ 200μm (diameter)
Interface 2
Interface 1
Interface 4
Interface 5
Interface 6
Interface 3
