RCS TR65 - Thermostat Control Screen; Temperature Display

5
Thermostat Control Screen

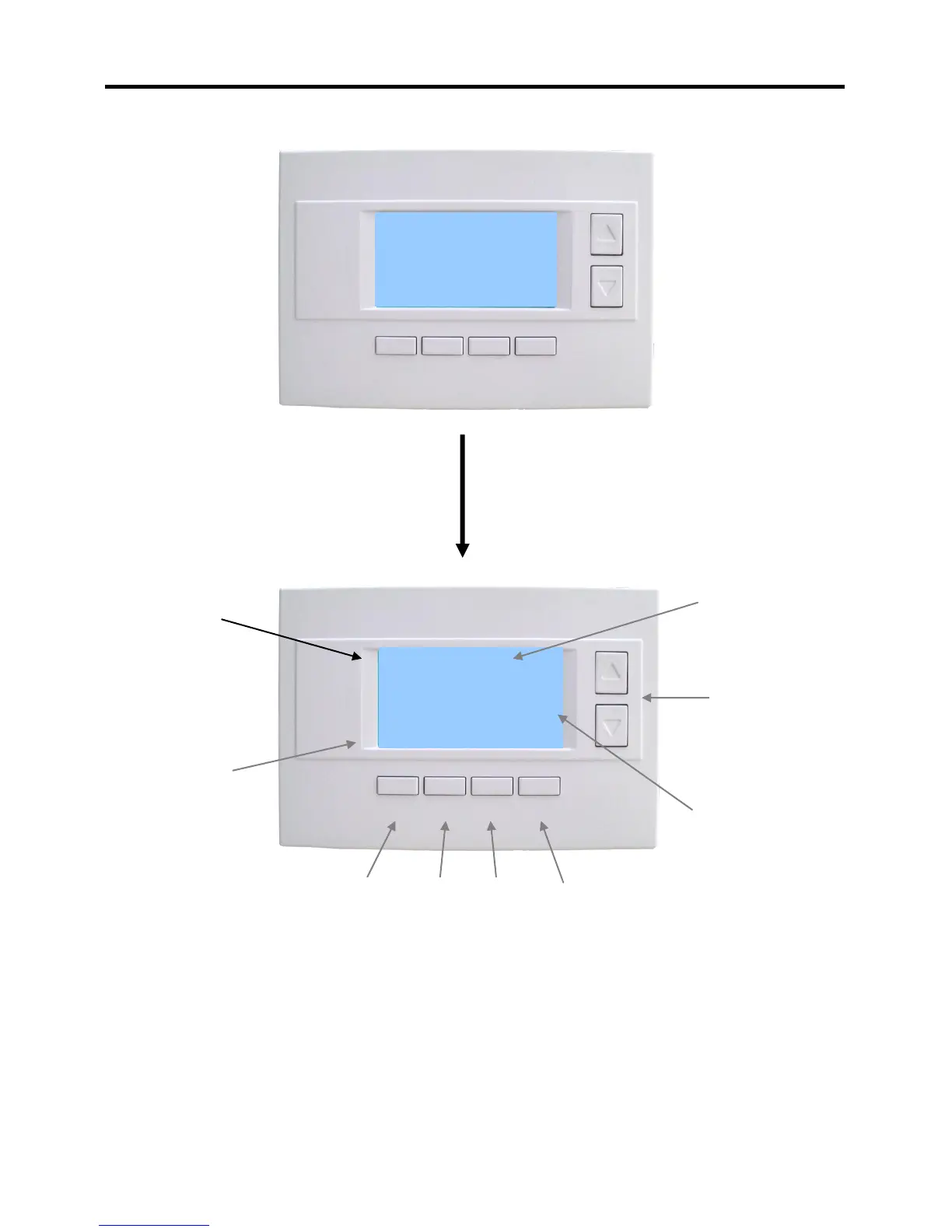

Minimized Screen
Main Thermostat Control Screen
The main Thermostat Control Screen is the screen that is normally displayed on the thermostat.
Temperature Display
The thermostat will normally display the current room temperature from the internal temperature sensor
(or a remote sensor, if installed).
Outside Temperature Display
It the thermostat has an outside temperature sensor installed, the outside temp will be displayed.
75
72
Press any button to return to
the thermostat control screen
The Minimized Screen
shows only the room
temperature.
It is displayed if you set the
“Screen Timeout” in the
User Settings Menu to a
time greater than 0.
If set to 0, the minimized
screen is disabled, and the
main thermostat screen is
normally displayed
MENU
COOL
MODE
72 H
AUTO
FAN
HOLD
74
2
75 C
4:30 PM
SYS OFF
ECON
HOLD
NO MSG
On-screen
dynamic
button labels
Setpoint
Up/Down
Buttons
Heating (H)
And
Cooling (C)
Setpoints
Main
Menu
System
Mode
Fan
Mode
Schedule
Mode
Outside 85
Outside
Temperature
Display
Time
Display
