INSTALLATION DESCRIPTION
The controller meets NEMA 4X/IP65 requirements for
indoor use to provide a watertight seal in steel panels with a
minimum thickness of 0.09 inch, or aluminum panels with
a minimumthickness of 0.12 inch. The units are intended to
be mounted into an enclosed panel. It is designed so that the
units can be stacked horizontally or vertically (see Figure
1). The bezel assembly MUST be in place during
installation of the unit.
INSTRUCTIONS:
1. Prepare the panel cutout to the dimensions shown in
Figure 1, Panel Installation.
2. Remove the panel latch from the unit. Discard the
cardboard sleeve.
3. Carefully remove the center section of the panel gasket
and discard. Slide the panel gasket over the unit from the
rear, seating it against the lip at the front of the case.
4. Insert the unit into the panel cutout. While holding the
unit in place, push the panel latch over the rear of the
unit, engaging the tabs of the panel latch in the farthest
forward slot possible.
5. To achieve a proper seal, tighten the panel latch screws
evenly until the unit is snug in the panel, torquing the
screws to approximately 7 in-lbs (79 N-cm). Over
tightening can result in distortion of the panel, and
reduce the effectiveness of the seal.
Note: The installation location of the controller is important.
Be sure to keep it away from heat sources (ovens, furnaces,
etc.), and away from direct contact with caustic vapors,
oils, steam, or any other process byproducts in which
exposure may affect proper operation.
-2-

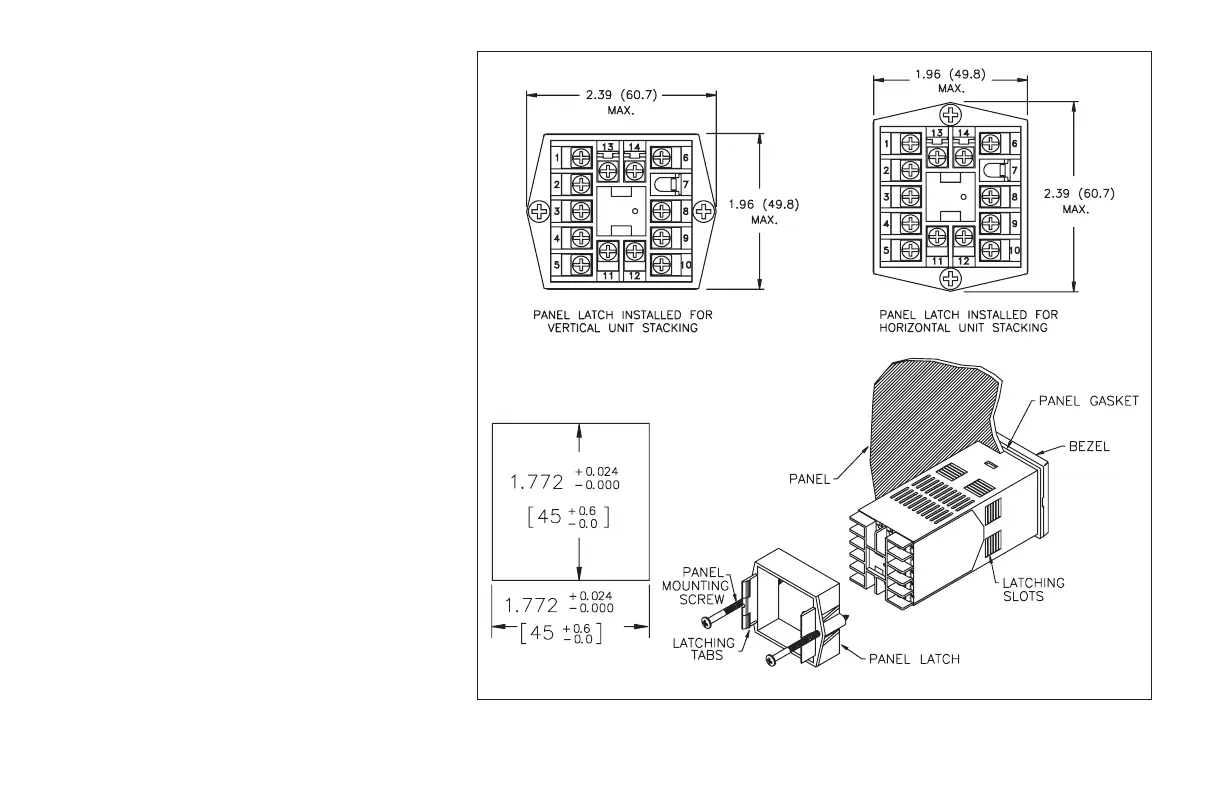

Figure 1, Panel Installation
