5.10 TYPICAL SETUPS
REDARC recommends that the Charger be installed by a suitably qualified person.

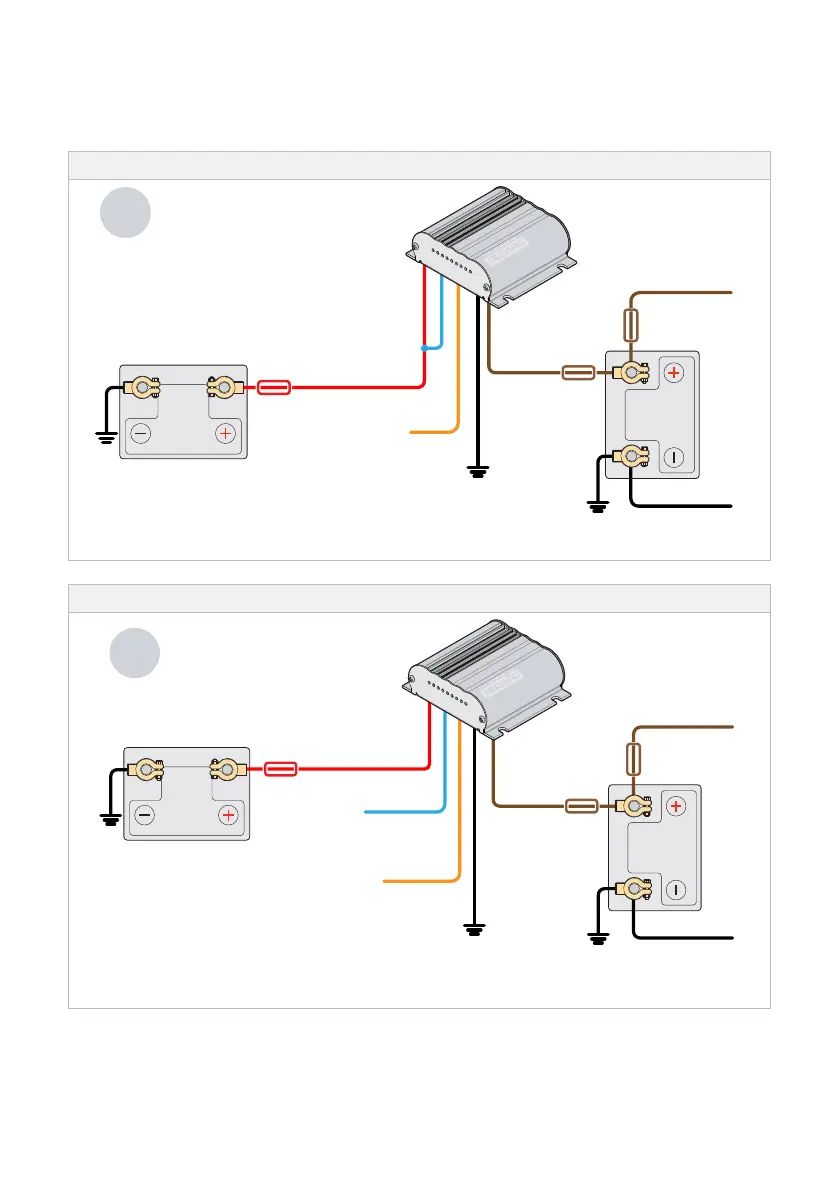

Figure 12: BCDC1220 12V Starter Battery Installation
Start
Battery
All ground
points must be
connected to
chassis earth
Auxiliury
Battery
Load
Fuse
Loads
30 A
Fuse
30 A
Fuse
RED
BLUE
ORANGE
BROWN
BLACK
12V
INPUT
BCDC1220
Charging Prole Select
(refer to page 12)
Figure 13: BCDC1220-IGN 12V Starter Battery Installation
To vehicle
ignition
BCDC1220-IGN
All ground points
must be connected
to chassis earth
Auxiliury
Battery
Load
Fuse
Loads
30 A
Fuse
30 A
Fuse
RED
BLUE
ORANGE
BROWN
BLACK
12V
INPUT
Start
Battery
Charging Prole Select
(refer to page 12)

Redarc BCDC1220 Specifications

General

Input Voltage	9 - 32VDC
Output Voltage	12V DC
Output Current	20A
Dimensions	150mm x 120mm x 37mm
Weight	0.65 kg
Battery Types Supported	AGM, Gel, Calcium
Charger Type	DC to DC
Protection Features	Over Temperature, Short Circuit, Reverse Polarity
