22 | Installation — Mounting

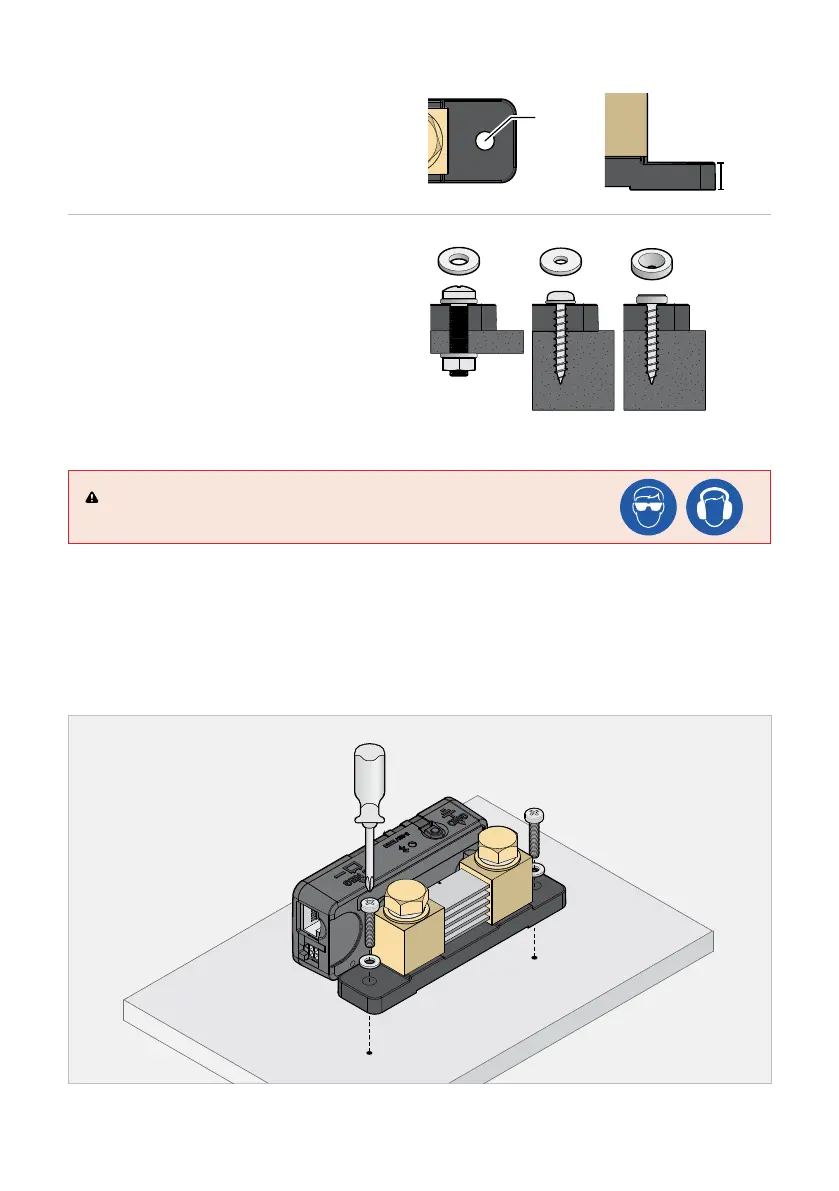

MOUNTING HARDWARE
When mounting the Battery Monitor, both
Mounting Holes must be used.
Ensure the selected fasteners are suitable for the
mounting surface and there is clearance‑t through
the Mounting Holes on the Battery Monitor.
Ø 6.5 mm
(1/4")
8 mm
(5/16")
Fasteners are
not supplied
Two fasteners are required for mounting the
Battery Monitor. REDARC recommend using
M6 (1/4") to M4 (#8) fasteners with washers.
If using countersunk fasteners, apply
countersunk washers to avoid damaging
the Mounting Holes.
DO NOT mount the Battery Monitor using
adhesives or adhesive tape.
Ø 6.5 mm
(1/4")
8 mm
(5/16")
Fasteners are
not supplied
MOUNTING STEPS
WARNING: Use suitable Personal Protective Equipment (PPE) when operating
power tools.
1. Conrm clearances around the Battery Monitor are adequate.
2. If clearance/pilot holes need to be drilled, place the Battery Monitor in its nal position and mark the
centre of each Mounting Hole.
3. Remove the Battery Monitor and drill the holes. De‑burr the drilled holes and remove any swarf. Touch up
any bare metal surfaces that have been exposed with a rust‑inhibitor.
4. Fasten the Battery Monitor in place, applying a washer in between the fastener and Mounting Hole.
To Next Page
