Installation — Wiring | 25

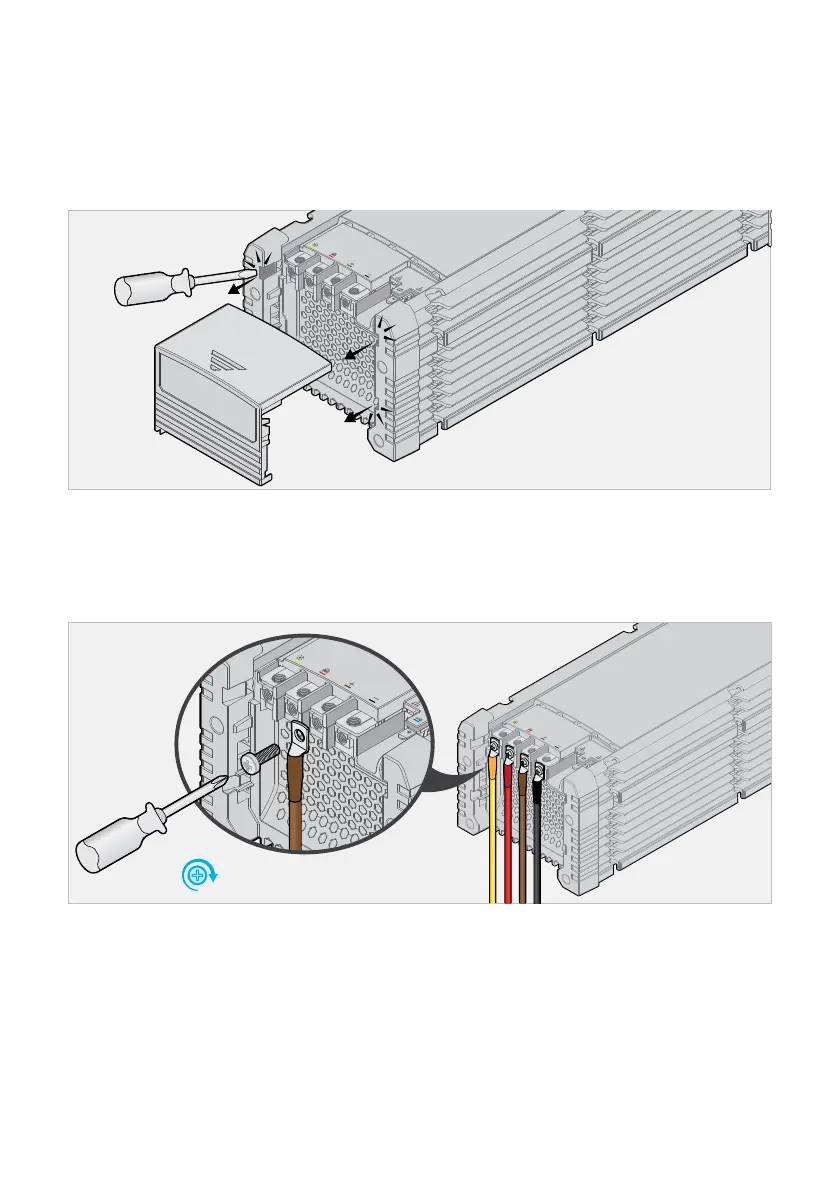

CONNECTIONS TO THE MAIN UNIT
REMOVABLE TERMINAL COVER
To remove the terminal cover from the Main Unit, use a medium‑sized (5 to 6 mm (3/16 to 1/4")) at blade
screwdriver to insert into the four recesses and gently lever it out.
Avoid pulling or tugging on the terminal cover while levering, as this may damage the terminal cover clips.
LUG CONNECTIONS
Connect the cables to their corresponding terminals on the side of the Main Unit using the supplied fasteners.
Secure using the supplied M6 Pan Head bolts and torque to 4.0 – 5.0 N·m (3.0 – 3.7 lbf·ft). Do not use a rattle
gun or impact driver to secure.
4.0 – 5.0N·m
3.0 – 3.7lbf·ft
