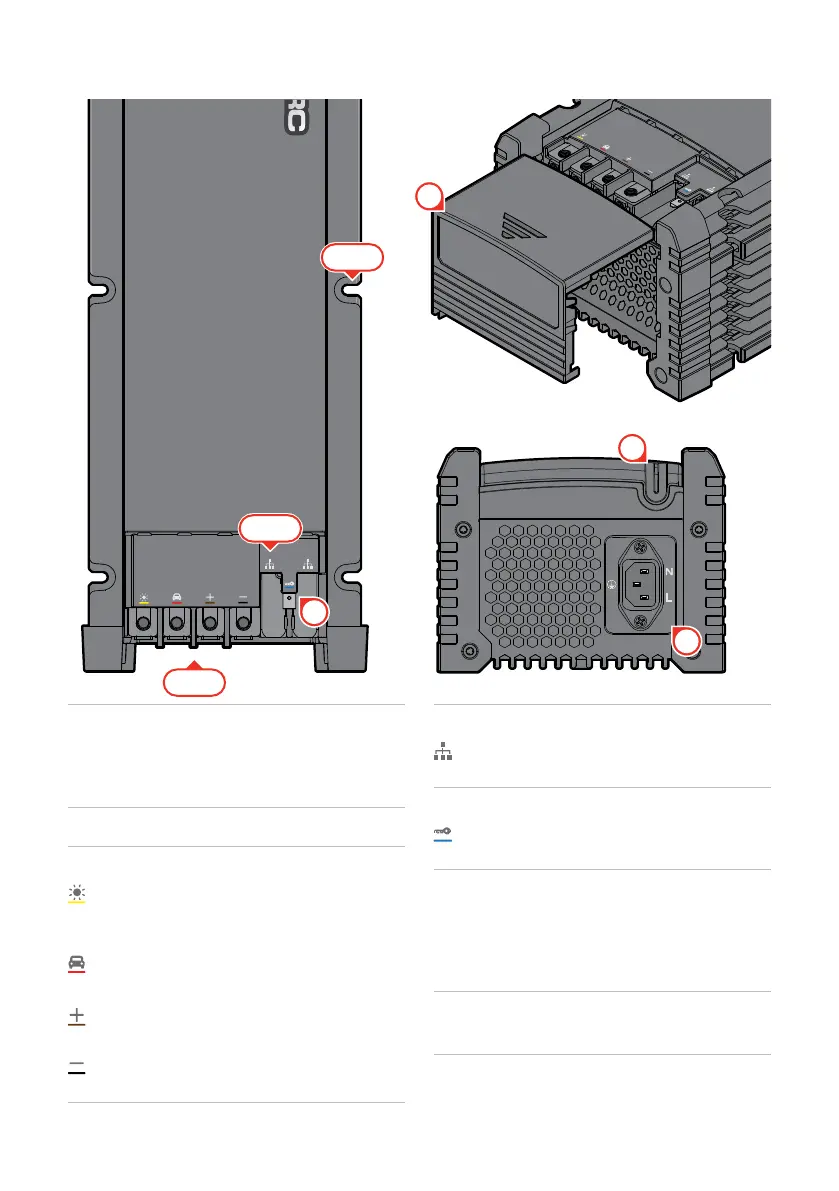

Manager Alpha Overview | 7
PARTS OF THE MAIN UNIT
1. Terminal Cover
Removable Cover (using a medium‑sized
(5 to 6 mm (3/16 to 1/4")) at blade screwdriver)
to protect cable connections (page25).
2. Mounting Points (×6)
3. Terminal Inputs/Outputs
Solar: Input terminal to allow unregulated,
solar panel/s to charge the auxiliary battery
(page30).
Start Battery: Input terminal to the vehicle's
start battery positive (+) terminal (page29).
Auxiliary Battery: Output terminal to the auxiliary
battery positive (+) terminal (page26).
Common Ground: Terminal to common ground
(page28).
4. R-Bus Interface Input
Cable connections for the Display and
Battery Monitor (page32).
5. Vehicle Ignition Input
Input terminal to an ignition signal for vehicles
with smart alternators (page32).
6. Status LED
On start‑up, the status LED will normally light
up white, then red for a short period. If there are
faults, the status LED will light up red and the
Display will show the active faults (page45).
7. AC Mains Socket
Allows AC Mains charging (page36).
5
7
6
1
2 (×6)
4 (×2)
3 (×4)
