28 | Installation — Wiring

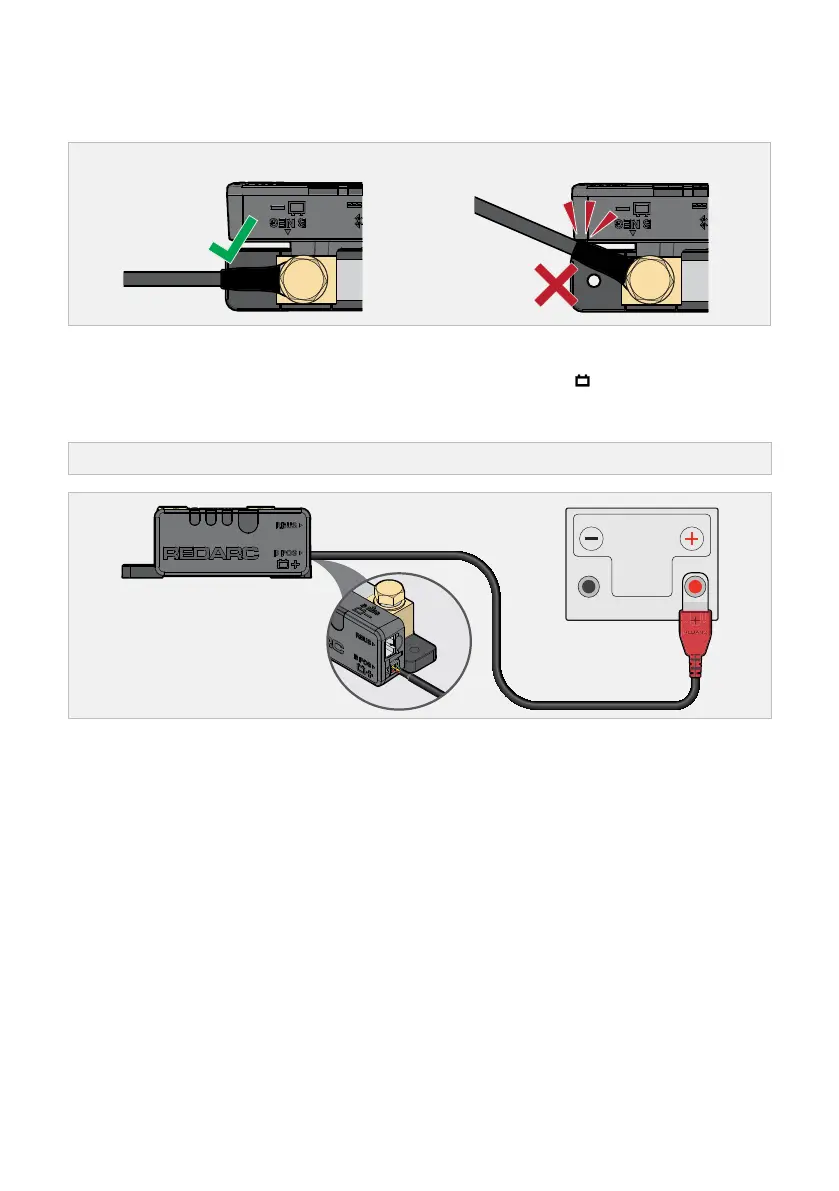

CORRECT LUG FITMENT
Hold the Ground and Battery Negative cables when torquing to avoid the cables touching the Battery Monitor
Housing, this will prevent potential damage to the Battery Monitor.
Cable away from the Battery Monitor Housing Cable touching Battery Monitor Housing
BATTERY SENSE LEAD CONNECTION
Insert the Battery Sense Connector on the Battery Sense Lead into the BPOS ( +) socket on the Battery
Monitor. Then, connect the Battery Sense Lug to the auxiliary battery positive (+) terminal using appropriate
fasteners to secure.
NOTICE: Do not t the Battery Sense Lead between the auxiliary battery and lugs carrying high currents.
Auxiliary
Battery
Battery Sense
Connector
Battery
Sense Lug
