MOUNTING STEPS
WARNING: Use suitable Personal Protective Equipment (PPE)
when operating power tools.
NOTICE: Do NOT modify the plastic housing or mounting holes in any way. Modification to the
unit will void the warranty.
1. Confirm that the clearances around the TVMSRogue Main Unit are adequate; see 'Mounting
Clearances'(page15).
2. If clearance/pilot holes need to be drilled, place the TVMSRogue in its final position and
carefully mark the centre of each mounting hole. For centre dimensions of mounting holes,
see 'General Specifications'(page43).
3. Drill the clearance/pilot holes. De -burr the drilled holes and clear away swarf. Touch up any bare
metal surfaces that have been exposed with a rust-inhibitor (e.g. primer).

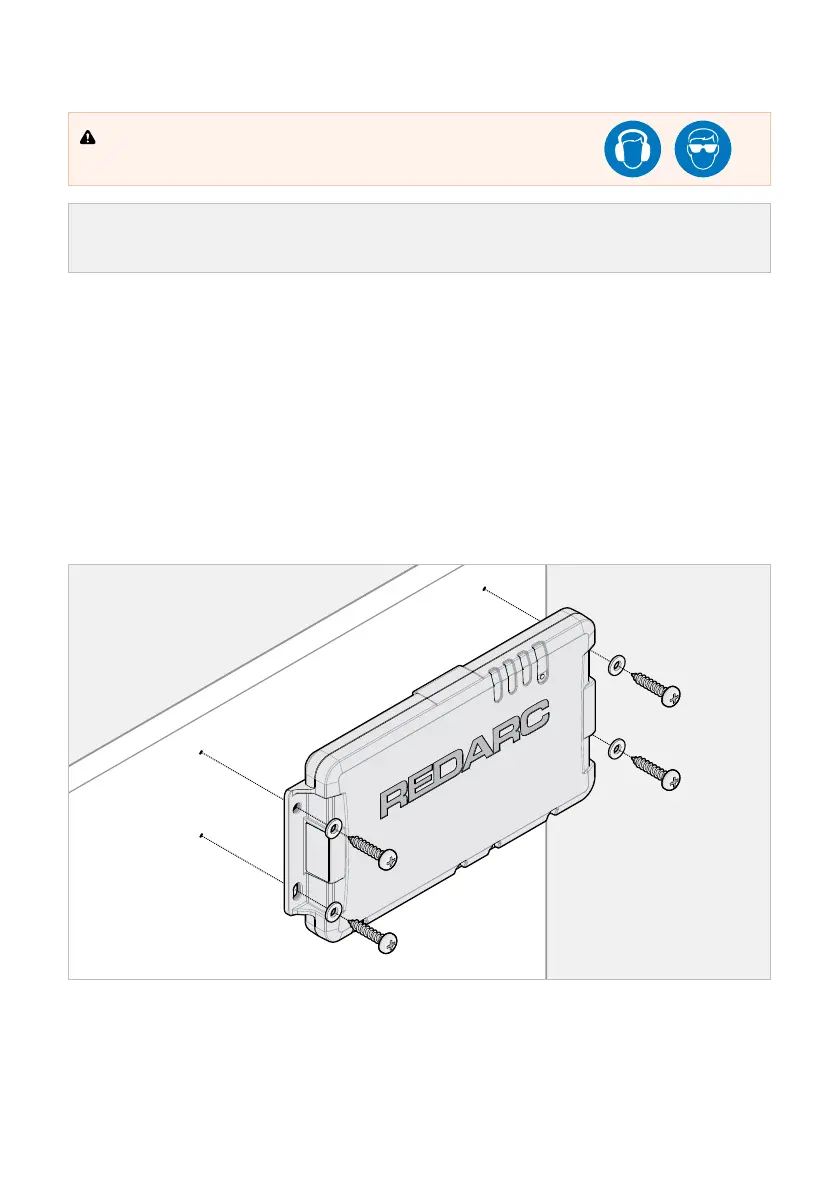

4. Fasten the TVMSRogue in place, applying a washer in between the fastener and the plastic
housing. Do not over-tighten the fasteners, as this could damage the Mounting Holes or plastic
housing of the Main Unit.
