Redarc TVMS Rogue - Connector Pinouts; Power Cable Pinouts; Output Cable Pinouts

48 | Technical Specifications

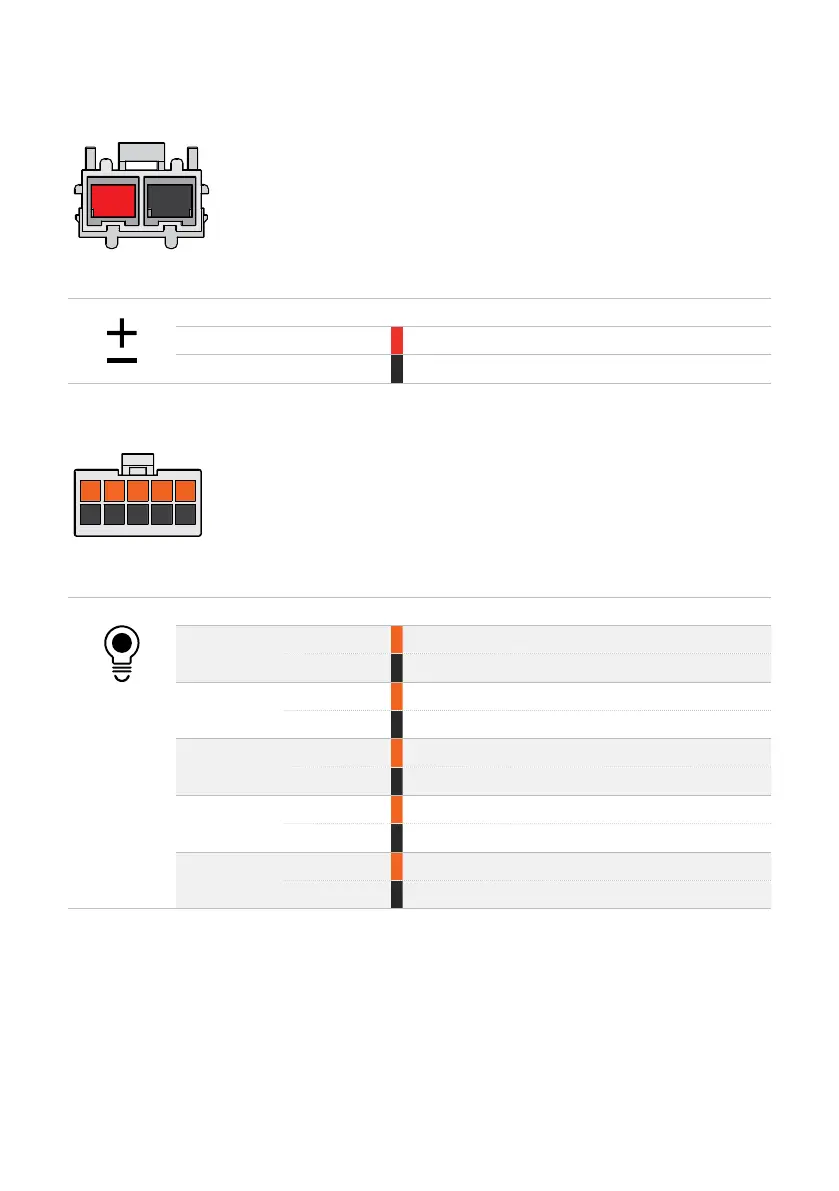

CONNECTOR PINOUTS
POWER CABLE CONNECTOR (A) PINOUTS
1 2
(Wire entry view)
Channel ID Terminal Colour Function
+ 1 Red 12 V Supply Positive
− 2 Black 12 V Supply Negative
OUTPUT CABLE CONNECTORS (C/D) PINOUTS
8 7 6 510
4 3 2 15
(Wire entry view)
Channel ID Terminal Colour Function
C/D 1
10 Orange Output C/D 1 Positive
5 Black Output C/D 1 Negative
C/D 2
9 Orange Output C/D 2 Positive
4 Black Output C/D 2 Negative
C/D 3
8 Orange Output C/D 3 Positive
3 Black Output C/D 3 Negative
C/D 4
7 Orange Output C/D 4 Positive
2 Black Output C/D 4 Negative
C/D 5
6 Orange Output C/D 5 Positive
1 Black Output C/D 5 Negative
