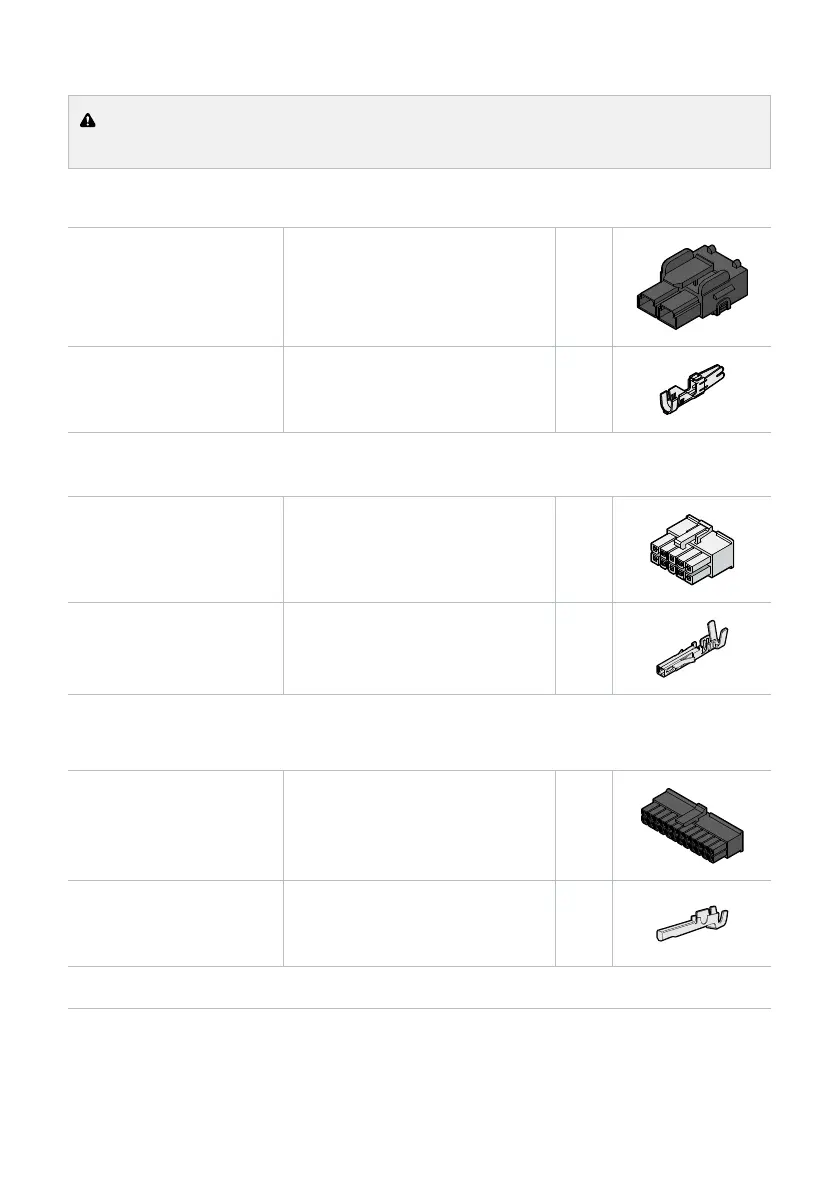

CONNECTOR PART NUMBERS
CAUTION: Installer-supplied connector housings and crimp terminals must be the same as
those specified.
POWER INPUT CABLE CONNECTOR
Molex 428160212
10.00 mm Pitch Mini-Fit Sr.
Receptacle Housing, Single Row,
2Circuit, Black
×1
Molex 428150134
Mini-Fit Sr. Crimp Terminal, Female,
8 AWG, Silver (Ag)
×2
OUTPUT CABLE CONNECTOR
Molex 039012100
Mini-Fit Jr. Receptacle Housing, Dual
Row, 10 Circuits, UL 94V-2, Natural
×2
Molex 457503111 (reel)
Mini-Fit Plus Crimp Terminal,
16AWG, Copper (Cu) Alloy, Tin (Sn)
×20
INPUT CABLE CONNECTOR
Molex 430252400
Micro-Fit 3.0 Receptacle Housing,
Dual Row, 24 Circuits, UL 94V-0,
Black
×1
Molex 430300001 (reel)
Molex 430300038**
Micro-Fit 3.0 Crimp Terminal,
Female, with Tin Plated Phosphor
Bronze Contact, 20–24 AWG
×24
** Alternative option – the larger 18 AWG contact can be used.
