Installation — Wiring | 25
SWITCH WIRING
BASIC SWITCHES
For connector pinout information, see 'Input Cable Connector (E) Pinouts', 'Switches'(page49).
1. Connect the wires from the Switch to a numbered pair of Blue and Grey wires on the Input
Wiring Loom (at E 1-8).
2. Insulate the ends of individual unused wires to prevent them from shorting. DO NOT heatshrink/
tape multiple unused wires together as a single bundle.
3. Configure via the REDARC Configurator App.

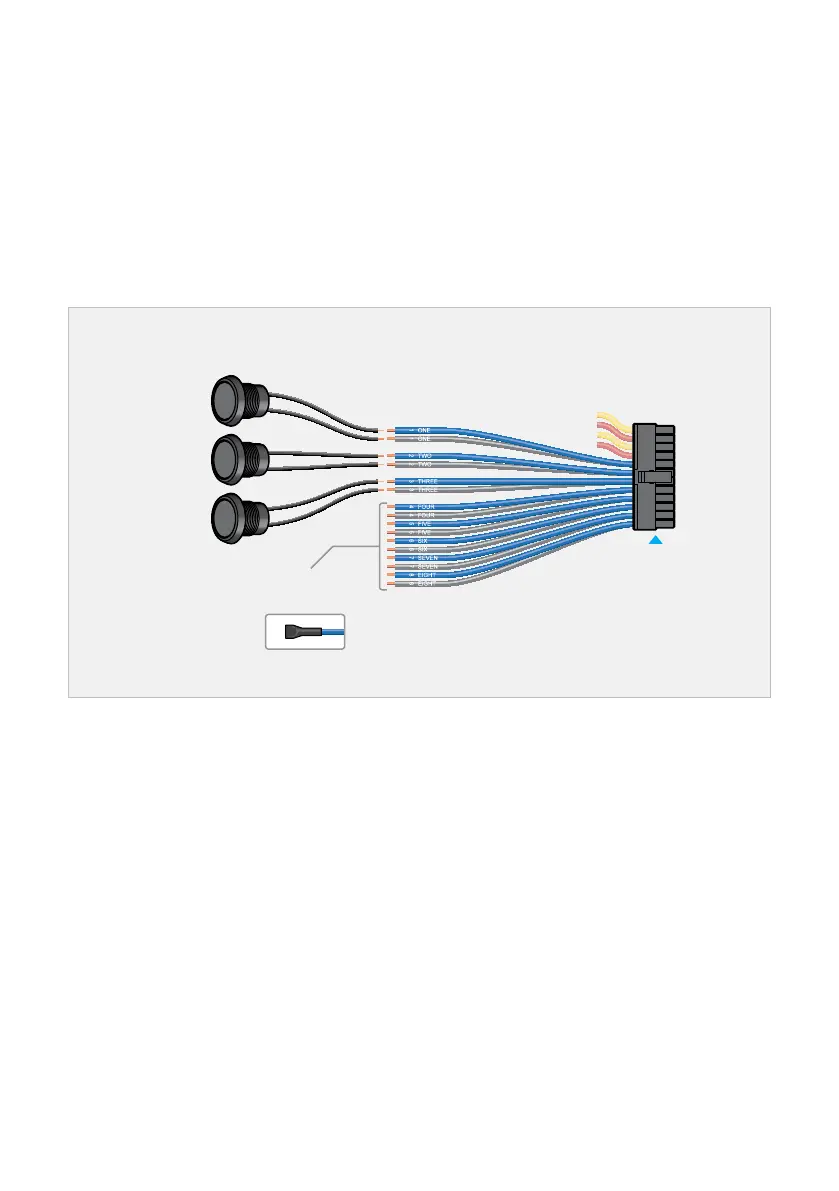

Basic Switch Wiring (two-wire switch)
Switches
Insulate ends of
individual unused wires
Input Loom
To Next Page
