Redarc TVMS Rogue - Input Cable Pinouts

Technical Specifications | 49

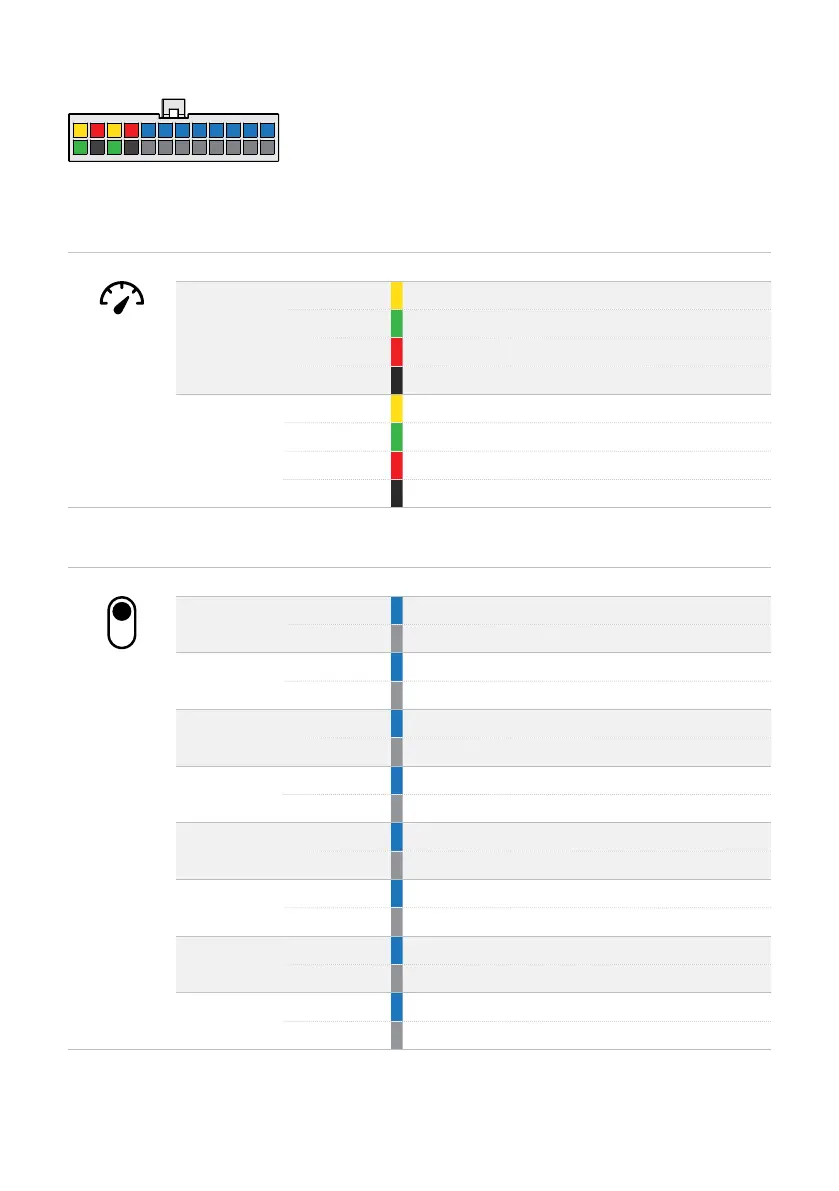

INPUT CABLE CONNECTOR (E) PINOUTS
24 23 22 21 20 19 18 17 16 15 14 13
12 11 10 9 8 7 6 5 4 3 2 1
(Wire entry view)
SENSORS
Channel ID Terminal Colour Function
E A1
24 Yellow Sensor Input 1 Sense Positive
12 Green Sensor Input 1 Sense Common
23 Red Sensor Input 1 Supply Positive
11 Black Sensor Input 1 Supply Negative
E A2
22 Yellow Sensor Input 2 Sense Positive
10 Green Sensor Input 2 Sense Common
21 Red Sensor Input 2 Supply Positive
9 Black Sensor Input 2 Supply Negative
SWITCHES
Channel ID Terminal Colour Function
E1
20 Blue Switch Input 1 Positive
8 Grey Switch Input 1 Common
E2
19 Blue Switch Input 2 Positive
7 Grey Switch Input 2 Common
E3
18 Blue Switch Input 3 Positive
6 Grey Switch Input 3 Common
E4
17 Blue Switch Input 4 Positive
5 Grey Switch Input 4 Common
E5
16 Blue Switch Input 5 Positive
4 Grey Switch Input 5 Common
E6
15 Blue Switch Input 6 Positive
3 Grey Switch Input 6 Common
E7
14 Blue Switch Input 7 Positive
2 Grey Switch Input 7 Common
E8
13 Blue Switch Input 8 Positive
1 Grey Switch Input 8 Common
