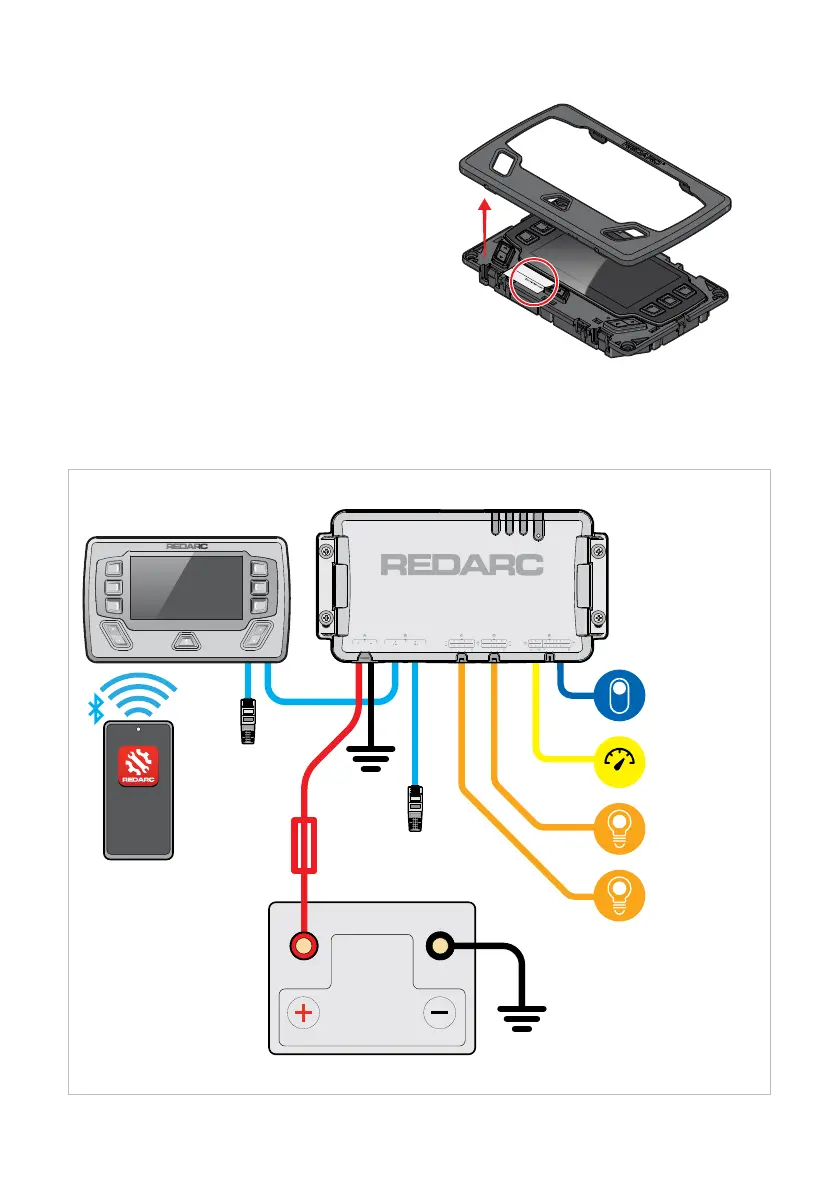

DISPLAY COMPATIBILITY
TVMSRogue is only compatible with REDARC
Displays (DISP4300) that have a serial number
greater than 2207089886-xxxx.
The display Serial Number label is located on the
body of the Display. It can be viewed by removing
the display fascia.
WIRING DIAGRAM — BASIC INSTALL
Output D
To Loads
Input E A1/A2
To Sensors
Input E 1−8
To Switches
To Ignition
Output C
To Loads
Terminating
Resistor
Terminating
Resistor
RedVision®
App
Display
Fuse
50 A
Auxiliary
Battery
