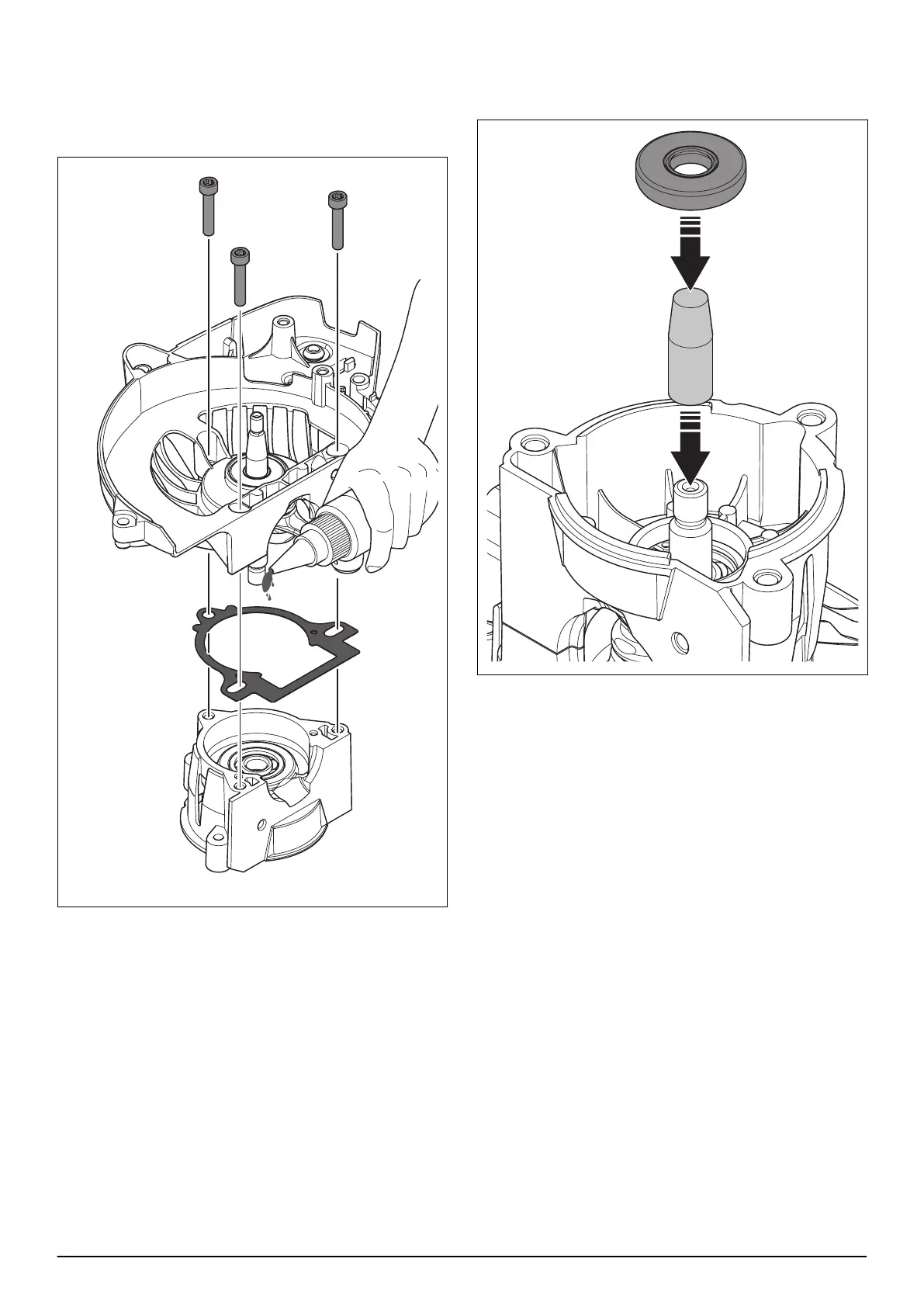

5. Install the gasket to the clutch side of the crankcase
half. Lubricate the crankshaft pin with some drops of
oil and move the crankcase half on the clutch side
into position. Tighten the 3 crankcase screws in
turns. Make sure that the crankshaft can rotate
easily.
6. Put an assembly sleeve on the crankshaft on the
clutch side to prevent damage to the sealing ring.
Lubricate the crankshaft with oil and install the
sealing ring.
7. Assemble in the opposite sequence of
To assemble
the crankcase and crankshaft on page 47
.
1108 - 001 - 24.11.2020 Repair instructions - 49
