Reer EOS4 User Manual

EOS4 SAFETY LIGHT CURTAIN
14 8540733 • 10th February 2009 • Rev.1
English
Multibeam Models
 These models are suitable for whole body
detection and must not be used to detect arms
or legs.
The minimum safety distance S is determined
according to the following formula:
S = 1600 (t
1
+ t
2
) + 850
The recommend height H from the reference surface G
(ground) is as follows (ISO 13855 Standard) :
G

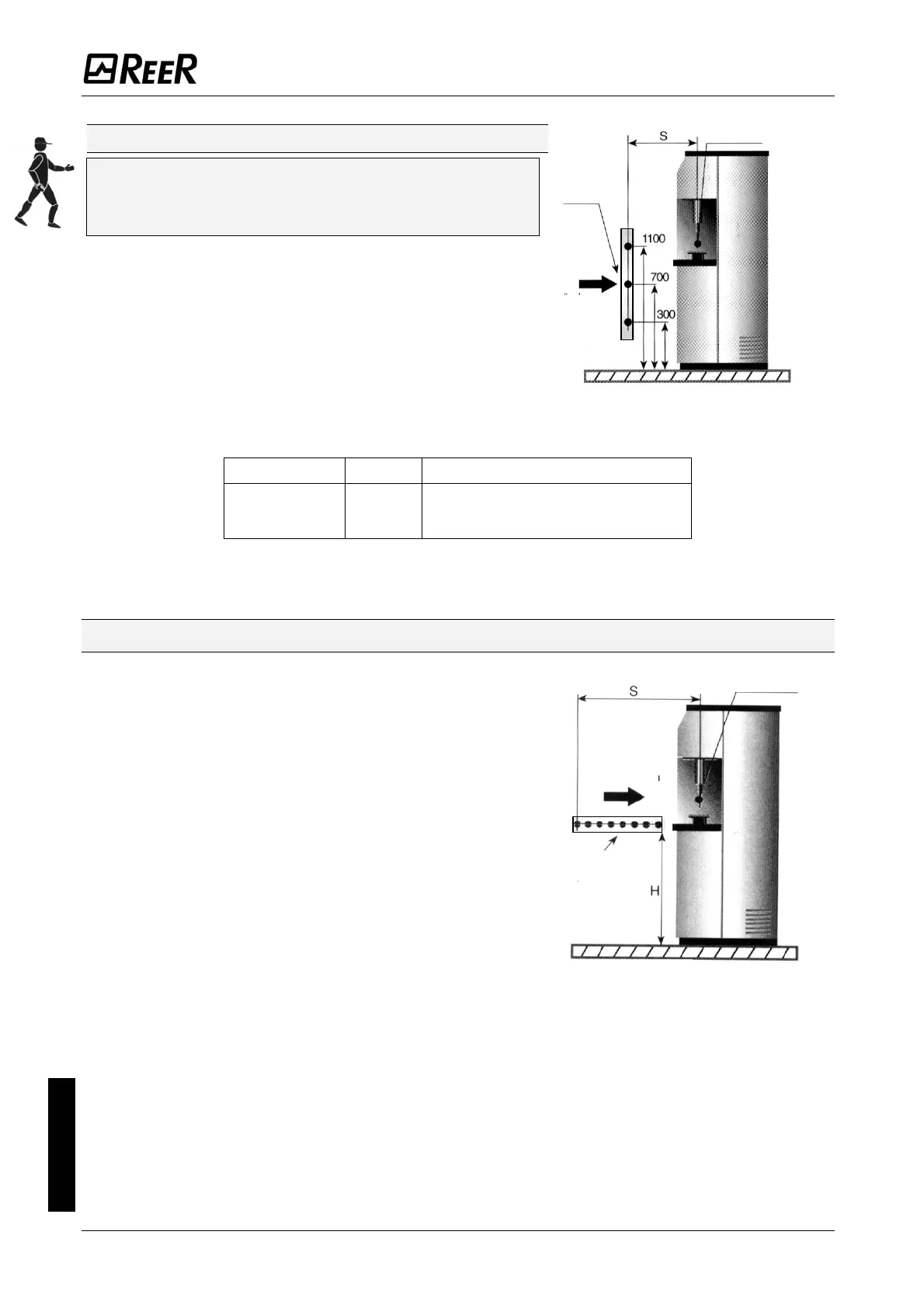

Figure 14 - Multibeam
MODEL BEAMS Recommended height H (mm)
EOS4 2B
EOS4 3B
EOS4 4B
2
3
4
400 – 900
300 – 700 – 1100
300 – 600 – 900 - 1200
Table 3 - Height H of Multibeam models
Horizontal positioning of the light curtain
When the direction of approach of the body is parallel to
the plane of the protected area, the light curtain must be
positioned so that the distance between the far end of the
dangerous area and the outermost beam is equal to or
greater than the minimum safety distance S calculated as
follows:
S = 1600(t
1
+ t
2
) + 1200 – 0.4H
where H is the height of the protected surface from
the machine reference plane;
H = 15(D-50)
(D=resolution)
In this case, H must always be less than of 1m
(ISO 13855 Standard).
G
Figure 15 - Horizontal positioning
Light grid
point of
dan
g
e
r
direction
of
approach
reference plane
Light curtain
point of
dan
g
e
r
direction
of approach
reference plane

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
