Reer EOS4 User Manual

EOS4 SAFETY LIGHT CURTAIN
16 8540733 • 10th February 2009 • Rev.1
English

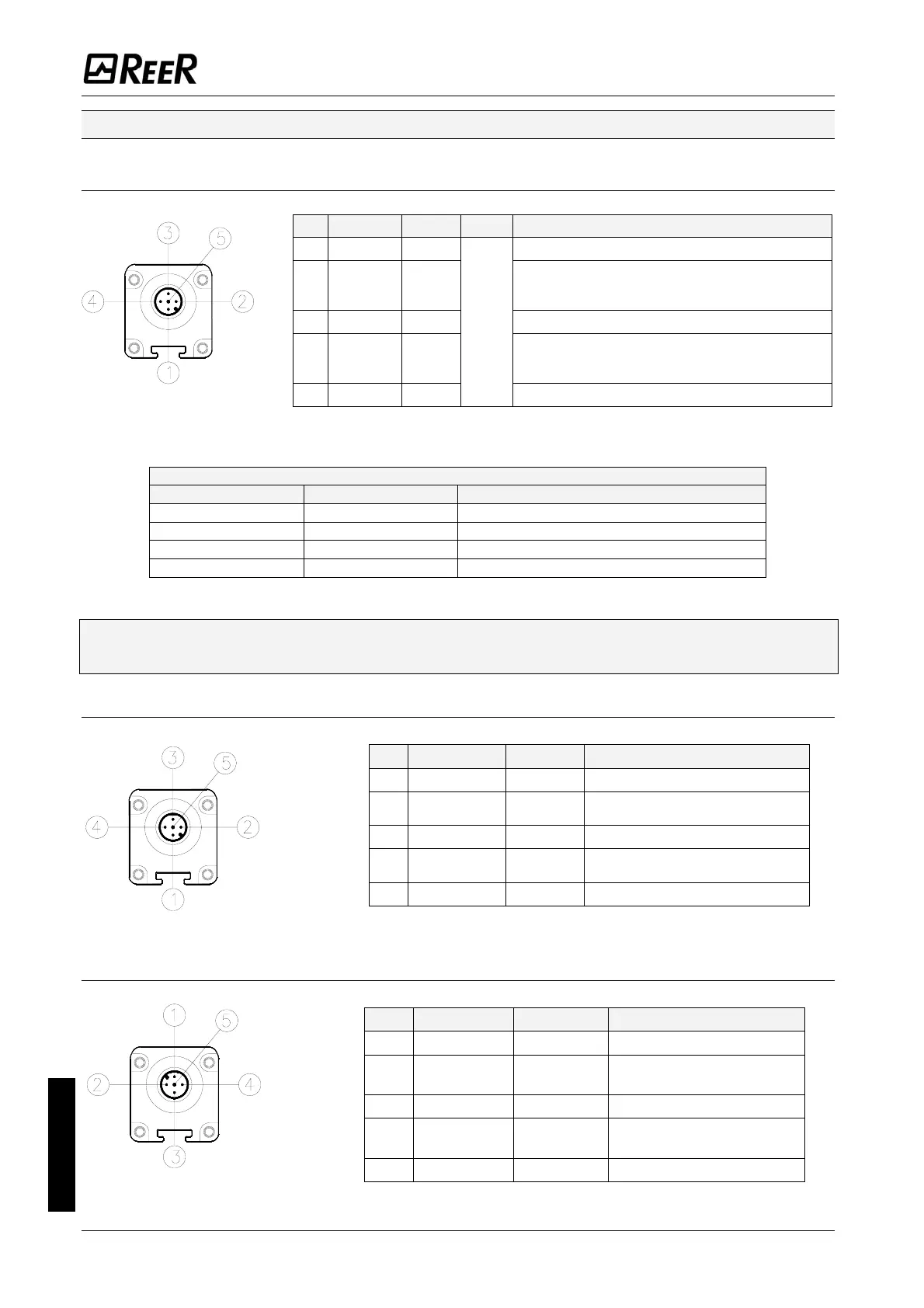

Emitter connections
STANDARD - WITH INTEGRATED CONTROL FUNCTIONS - MASTER MODELS
M12 5-pin primary connectors.
PIN
COLOUR NAME TYPE DESCRIPTION
1 Brown 24VDC 24VDC power supply
2 White RANGE0
Light curtain configuration
complying with the EN61131-2 standard
(ref. Table 5)
3 Blue 0VDC 0VDC power supply
4 Black RANGE1
Light curtain configuration
complying with the EN61131-2 standard
(ref. Table 5)
5 Grey FE
INPUT
Ground connection
Table 4 - M12, 5 pin
Master/Standard/with integrated control functions TX
RANGE AND TEST SELECTION - (PRIMARY CONNECTOR M12, 5 PIN)
PIN 4 PIN 2 MEANING
24V 0V
Selection HIGH Range
0V 24V
Selection LOW Range
0V 0V
Emitter in TEST
24V 24V Selection error
Table 5 – Range and TEST selection
Î
For correct operation of the light curtain, pins 2 and 4 of the Emitter must be
connected as indicated in Table 5.
SLAVE/SLAVE2 MODELS - M12, 5-pin primary connector.
PIN COLOUR NAME DESCRIPTION
1 Brown 24VDC
24VDC power supply
2 White
LINE_A
Communication
MASTER-SLAVE
3 Blue 0VDC
0VDC power supply
4 Black
LINE_B
Communication
MASTER-SLAVE
5 Grey FE
Ground connection
Table 6 - M12, 5-pin Primary Slave TX
MASTER MODELS – M12, 5-pin secondary connector.
SLAVE2 MODELS – M12, 5-pin secondary connector.
PIN COLOUR NAME DESCRIPTION
1 Brown 24VDC 24VDC power supply
2 White
LINE_A
Communication
MASTER-SLAVE
3 Blue 0VDC 0VDC power supply
4 Black
LINE_B
Communication
MASTER-SLAVE
5 Grey FE Ground connection
Table 7 - M12, 5-pin Secondary TX

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
