Reer EOS4 User Manual

EOS4 SAFETY LIGHT CURTAIN
8540733 • 10th February 2009 • Rev.1 17
English

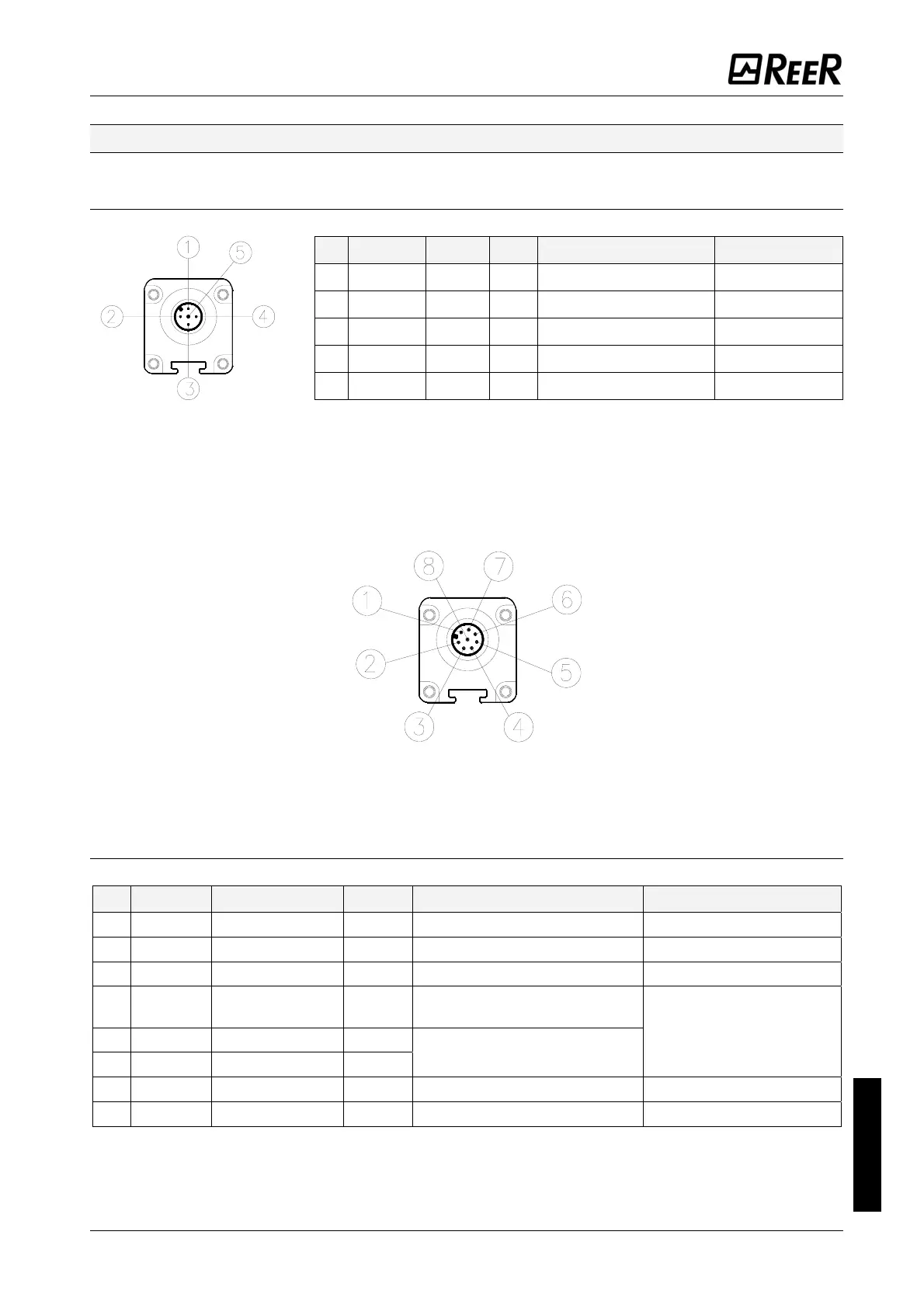

Receiver connections
STANDARD MODELS - M12, 5-pin connector.
PIN COLOUR NAME TYPE DESCRIPTION OPERATION
1 Brown 24VDC - 24VDC power supply -
2 White OSSD1 OUT Static safety output 1 PNP active high
3 Blue 0VDC - 0VDC power supply -
4 Black OSSD2 OUT Static safety output 2 PNP active high
5 Grey FE - Ground connection -
Table 8 - M12, 5 pins Primary RX
MODELS WITH INTEGRATED CONTROL FUNCTIONS - M12, 8-pin connector.
MASTER MODELS - M12, 8-pin primary connector.
PIN COLOUR NAME TYPE DESCRIPTION OPERATION
1 White OSSD1 OUTPUT Static safety output 1 PNP active high
2 Brown 24VDC - 24VDC power supply -
3 Green OSSD2 OUTPUT Static safety output 2 PNP active high
4 Yellow K1_K2/RESTART INPUT
Feedback from external
contactors
5 Grey SEL_A INPUT
6 Pink SEL_B INPUT
Light curtain configuration
Complying with the
EN61131-2 standard
(ref. Par. "Configuration
and operating modes")
7 Blue 0VDC - 0VDC power supply -
8 Red FE - Ground connection -
Table 9 - M12, 8 pins RX

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
