Reer EOS4 User Manual

EOS4 SAFETY LIGHT CURTAIN
26 8540733 • 10th February 2009 • Rev.1
English

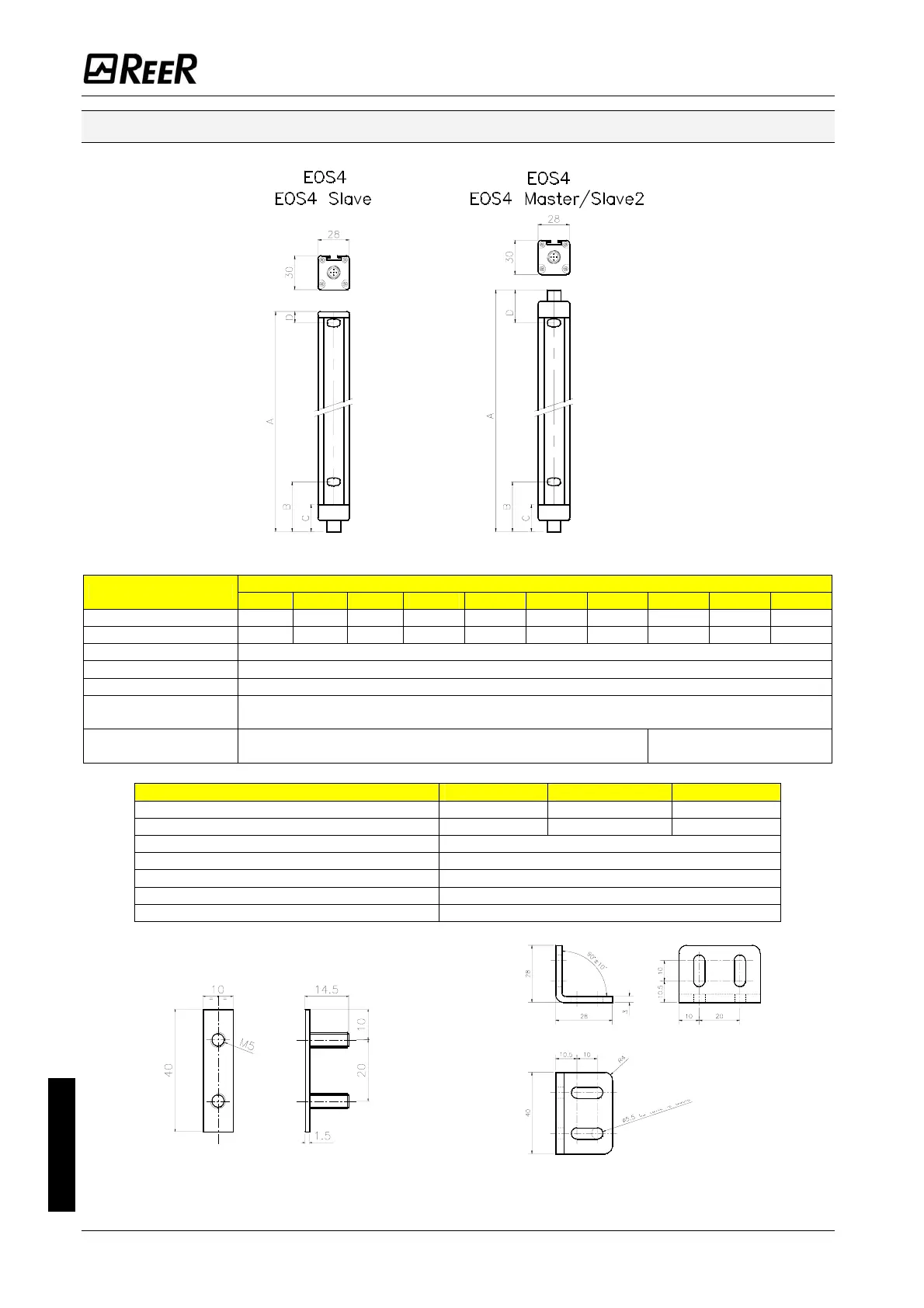

Dimensions
Figure 25 - Emitter and Receiver
Height
Model
150 300 450 600 750 900 1050 1200 1350 1500
A 213 363 513 663 813 963 1113 1263 1413 1563
A (Master/Slave) 236.5 386.5 536.5 686.5 836.5 986.5 1136.5 1286.5 1436.5 1586.5
B 61.5
C 29.5
D 11
D (Master/Slave2)
(With 2 connectors)
34.5
Fastening 2 LE TYPE brackets with 2 inserts
3 LE TYPE brackets with
3 inserts
Model 2B 3B 4B
A 653 953 1053
A (Master/Slave2) 677 977 1077
B 102
C 29.5
D 51
D (Master/Slave2) (With 2 connectors) 75
Fastening 2 LE TYPE brackets with 2 inserts
Figure 26 - FIE inserts and LE fastening brackets (provided)

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
