Reer EOS4 User Manual

EOS4 SAFETY LIGHT CURTAIN
8540733 • 10th February 2009 • Rev.1 21
English

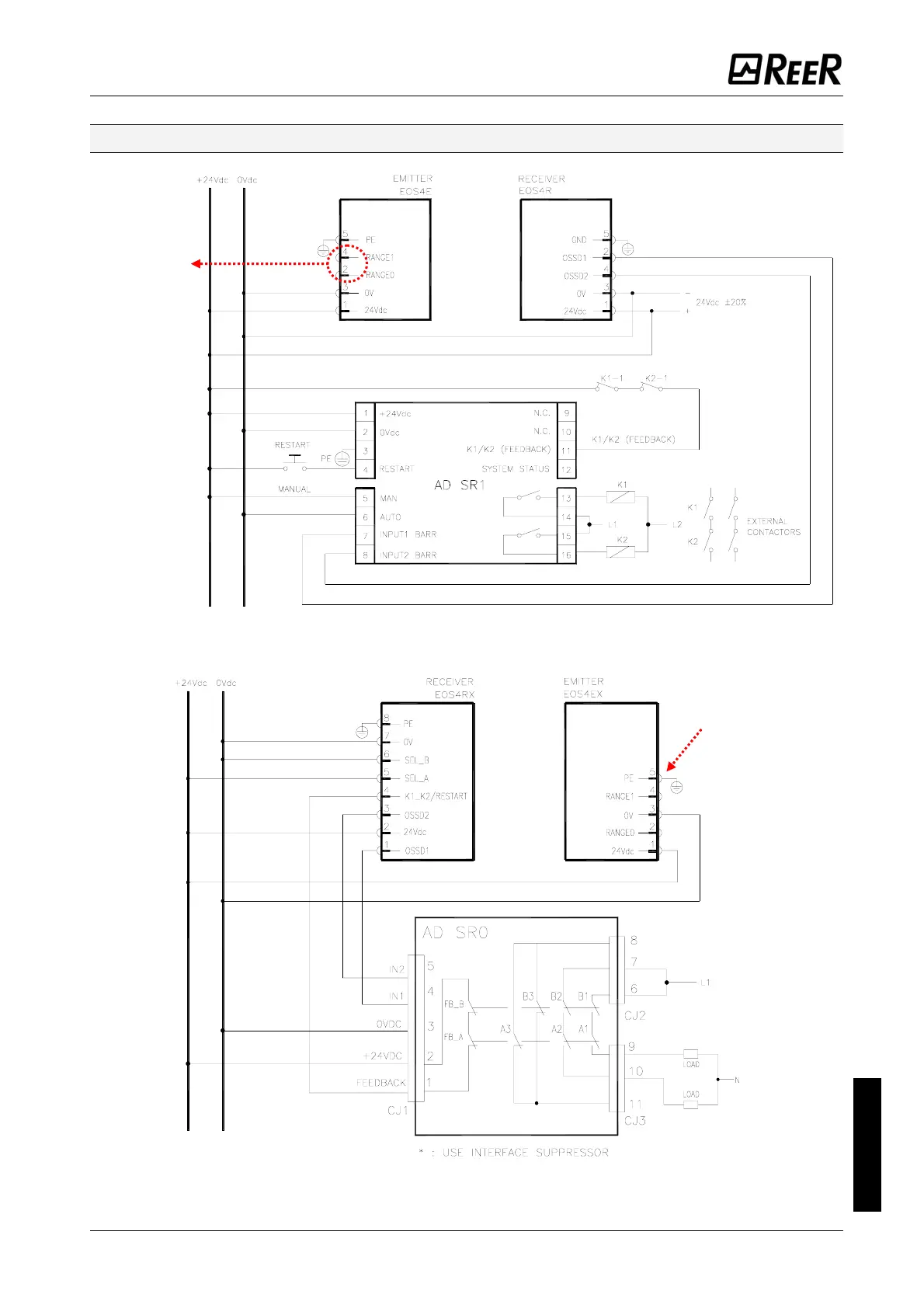

Examples of connection with REER safety modules
Figure 21 - EOS4 A: Manual operation with AD SR1 module
Figure 22 - EOS4 X: Automatic operation with AD SR0 module
For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.
For correct operation
of the light curtain,
connect pins 2 and 4
of the Emitter as
indicated in Table 4.

Reer EOS4 Specifications

General

Power Supply	24 VDC ±20%
Resolution	14 mm
Safety Category	Type 4
Operating Temperature	+55 °C
Protection Rating	IP65
Detection Capability	Opaque objects
Connection	M12 connector
Response Time	≤ 20 ms
Outputs	2 x safety outputs (OSSDs)
