Rev 19 Page31
Figure 8: Buoyancy Reconfiguration Diagram

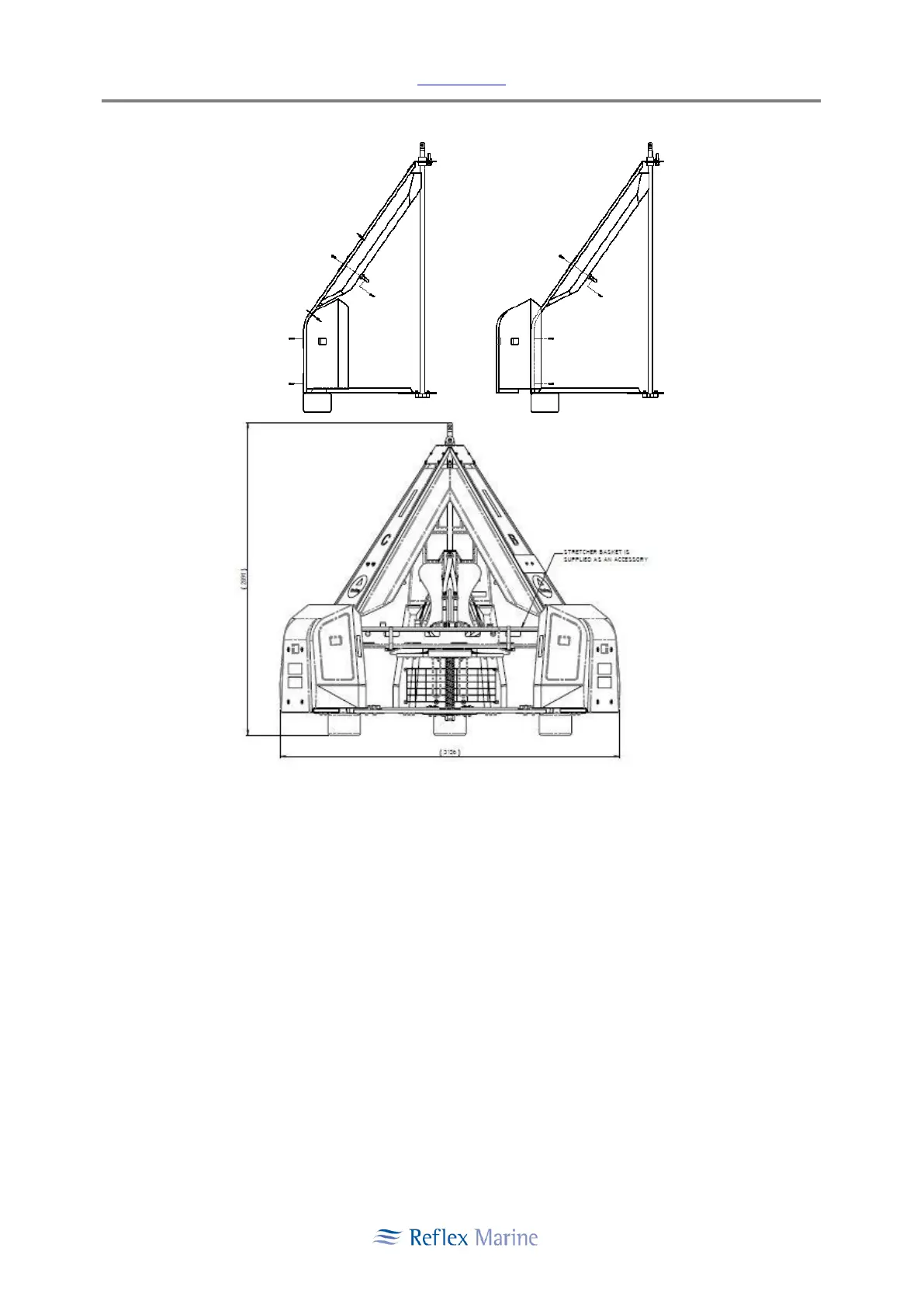

vi. Refer to Figure 9: Stretcher Fitting Diagram.
vii. Remove the lower fixing bolts (2 x M10 Dome Cap) from seat facing door B - C.
viii. Loosen the upper fixing bolt (1 x M10 Dome Cap) and loosen the nut from seat facing door B
- C. The seat can be removed once the bolt head is passed through the key-slot.
ix. Seat harness can now be fastened behind the central column to provide a clear area for the
stretcher frame.
x. Position the stretcher frame on the seat base. Align the tab with the hole on circular plate
and fix with M10 dome cap bolt and wing nut.
To Next Page
