8 HANDLING, SHIPPING AND STORAGE
8.1 Dimensions
The FROG-3 overall dimensions are as follows:
In standard 3 seat mode:
Height
2900 mm
(9.5 ft)
Max Width 1
2200 mm
(7.2 ft)
Max Width 2
2500 mm
(8.2 ft)
Tare Weight
485 kg
(1069 lb)
In stretcher mode:
Height
2900 mm
(9.5 ft)
Max Width 1
2400 mm
(7.9 ft)
Max Width 2
3200 mm
(10.5 ft)
Tare Weight
485 kg
(1069 lb)
8.2 Handling & Transportation
8.2.1 Forklift
Handling of the FROG-3 with a forklift truck may damage the underside of the FROG-3 (landing feet,
cross braces or main column). Therefore the unit must be secured to a pallet specifically designed
for forks.
8.2.2 Crane
When lifting the FROG-3 with short chain or strop, a temporary shackle should be fixed to the back-
up eyebolt. Care must be taken not to damage the FROG-3 lifting sling set. The shackle should not
be fitted through the thimble of the sling eye.
8.2.3 Securing
For deck fastening, Reflex Marine Ltd recommends using the peripheral braces around the floor
grating. An example showing a deck fastening configuration is shown in Figure 11.

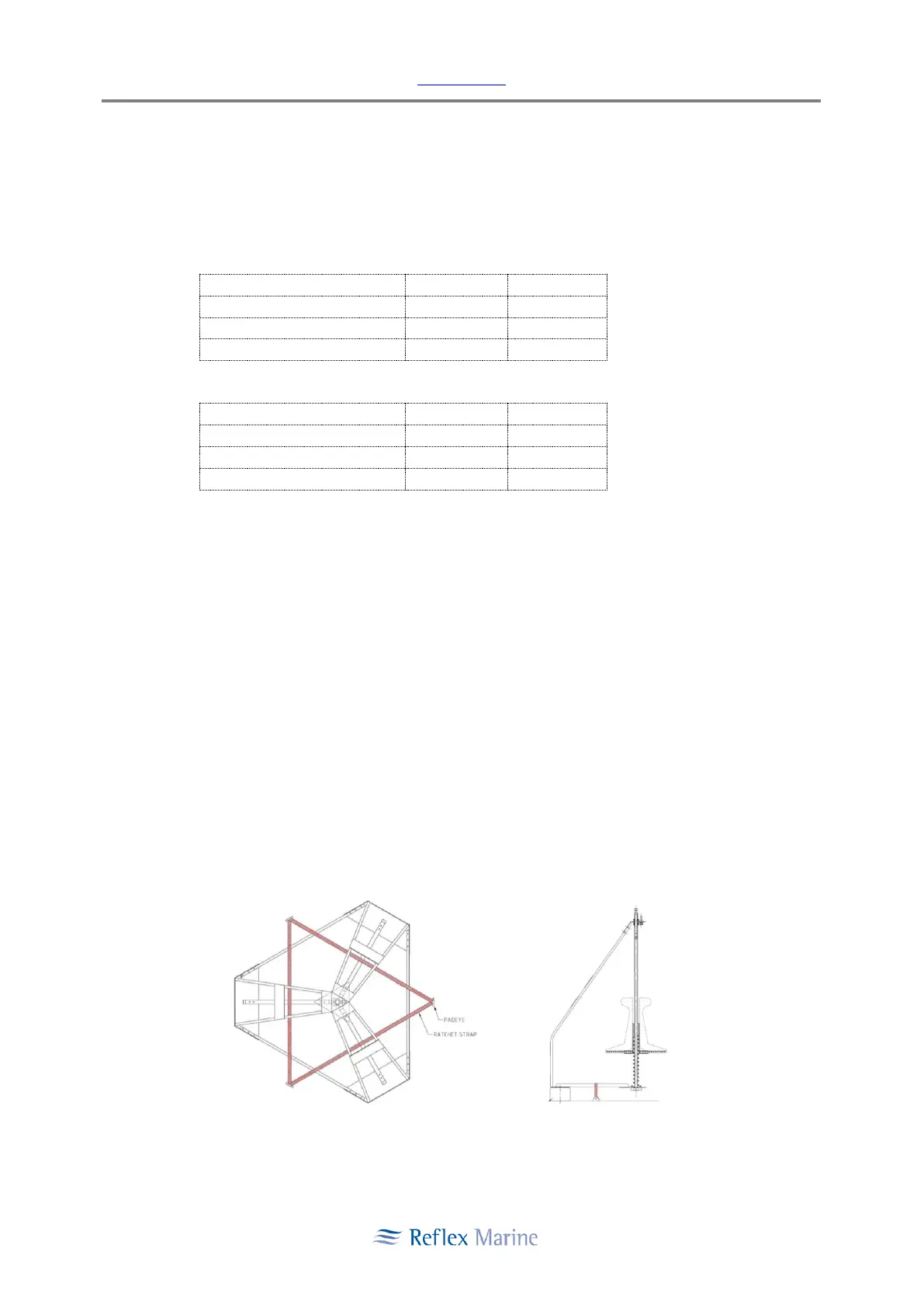

Figure 11: FROG-3 Recommended Strapping Method
8.2.4 Inspection
Link to Index Link to Index
