Regency Grandview G600C - Chase Vent Installation - Cool Wall (Part #776-941)

28 | Grandview
®
G600C Gas Fireplace
installation
Chase Vent Installation - Cool Wall (Part #776-941)
08.25.20920-301
G600EC/G600C
1
08.11.20920-150
G600EC
1
29
Ceiling
Max 2” (51 mm)
Ceiling
Max 2” (51 mm)
Side View
Top of enclosure
CHASE VENT INSTALLATION—COOL WALL
(PART #776-941)

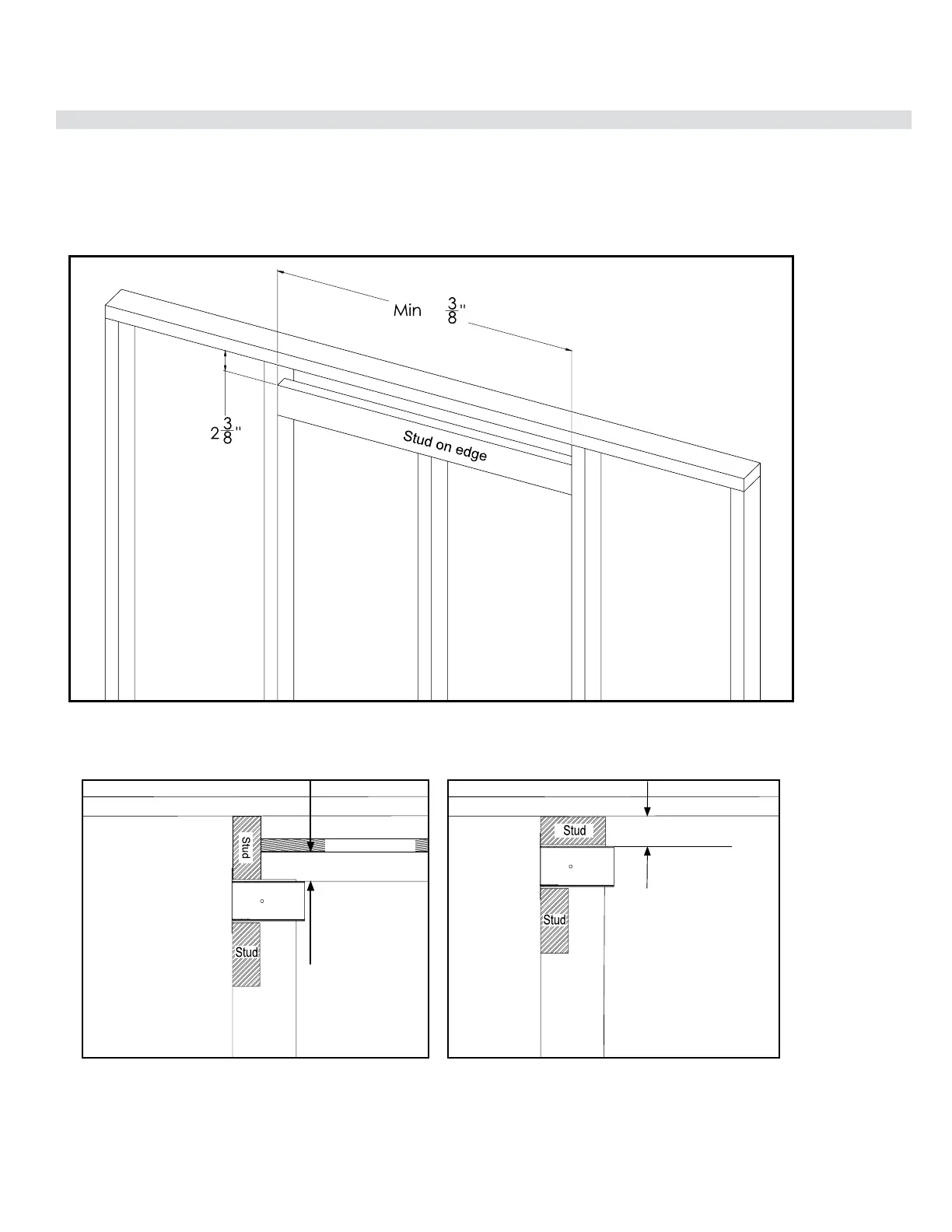

Framed opening must be at least 2 3/8” (60 mm) tall, and at least 29 3/8” (746 mm) wide to accomodate the chase vent. The
top of the chase vent opening must be 2” (51 mm) or less from the top of the chase enclosure. Fasten the chase vent with
screws and construction adhesive.
If the chase vent is not being used, a minimum 58 in
2
(374 cm
2
) opening in the enclosure is required to maintain safe operating
temperatures. This can be achieved in a number of ways including a reveal at the top of the chase.
08.11.20920-150
G600EC
1
29
Ceiling
Max 2” (51 mm)
Ceiling
Max 2” (51 mm)
Side View
Top of enclosure
(746 mm)
(60 mm)
