Crystal Tray Installation (Part #776-937)
09.30.20920-295
CRYSTAL TRAY INSTALLATION
Page 1
Part #776-937
G600EC/G600C

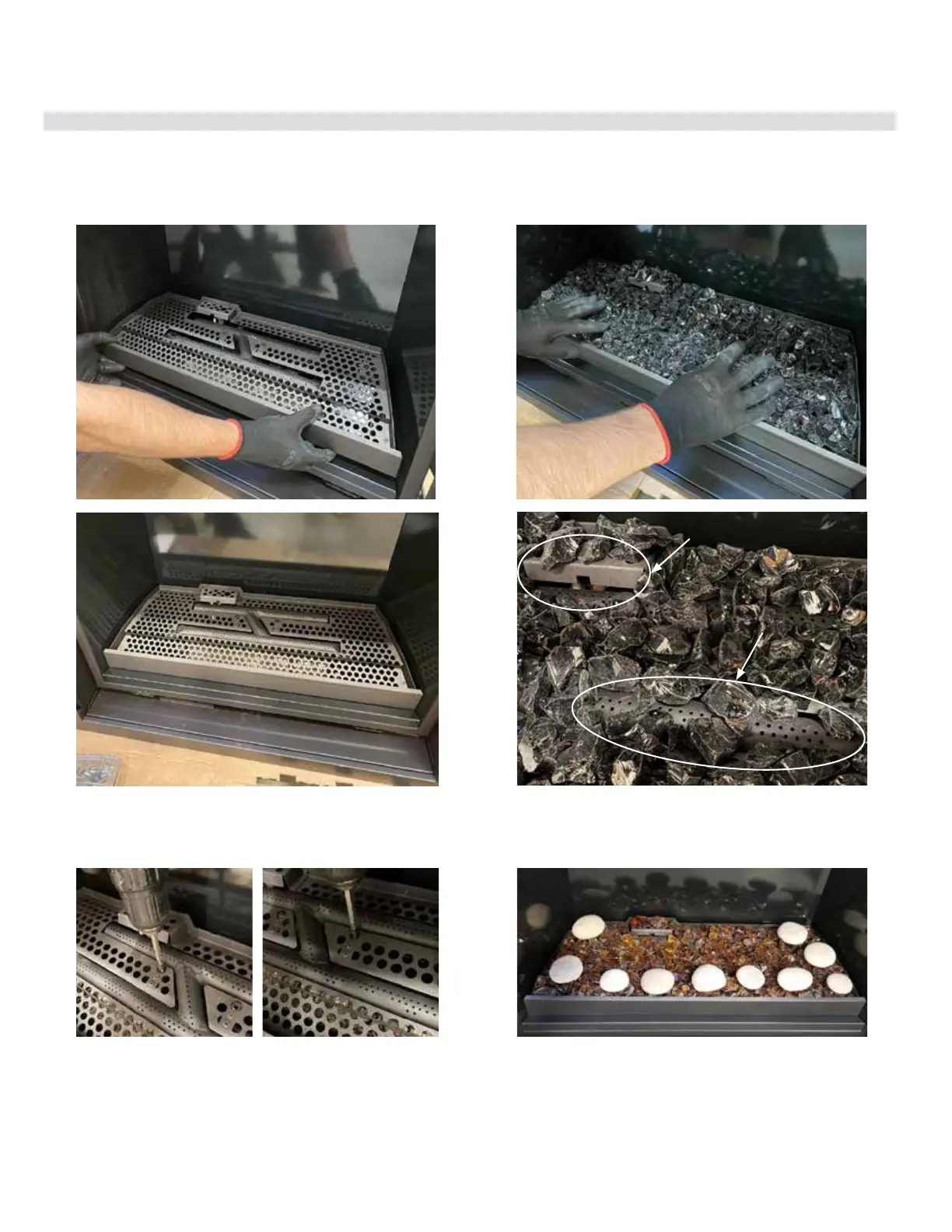

2. Attach the crystal tray with two screws, one on the middle
left and another on the middle right of the tray, as shown
below.
3. Add 5 lbs of crystal media and spread it across the tray in
one even layer. Important: ensure that at least 50% of the
gas burner porting remains uncovered. Do not cover
the pilot area.
BURNER PORTING
PILOT
4. If using volcanic stones as additional media, add a maximum
of 10, as shown below. Important: Volcanic stones should
not cover any of the gas burner porting or pilot areas.
Note: The optional brick, steel, or enamel panels must be
installed prior to the crystal tray.
1. Place the crystal tray over the burner, as shown below.
5. To remove the crystal tray, reverse the steps above.
