maintenance

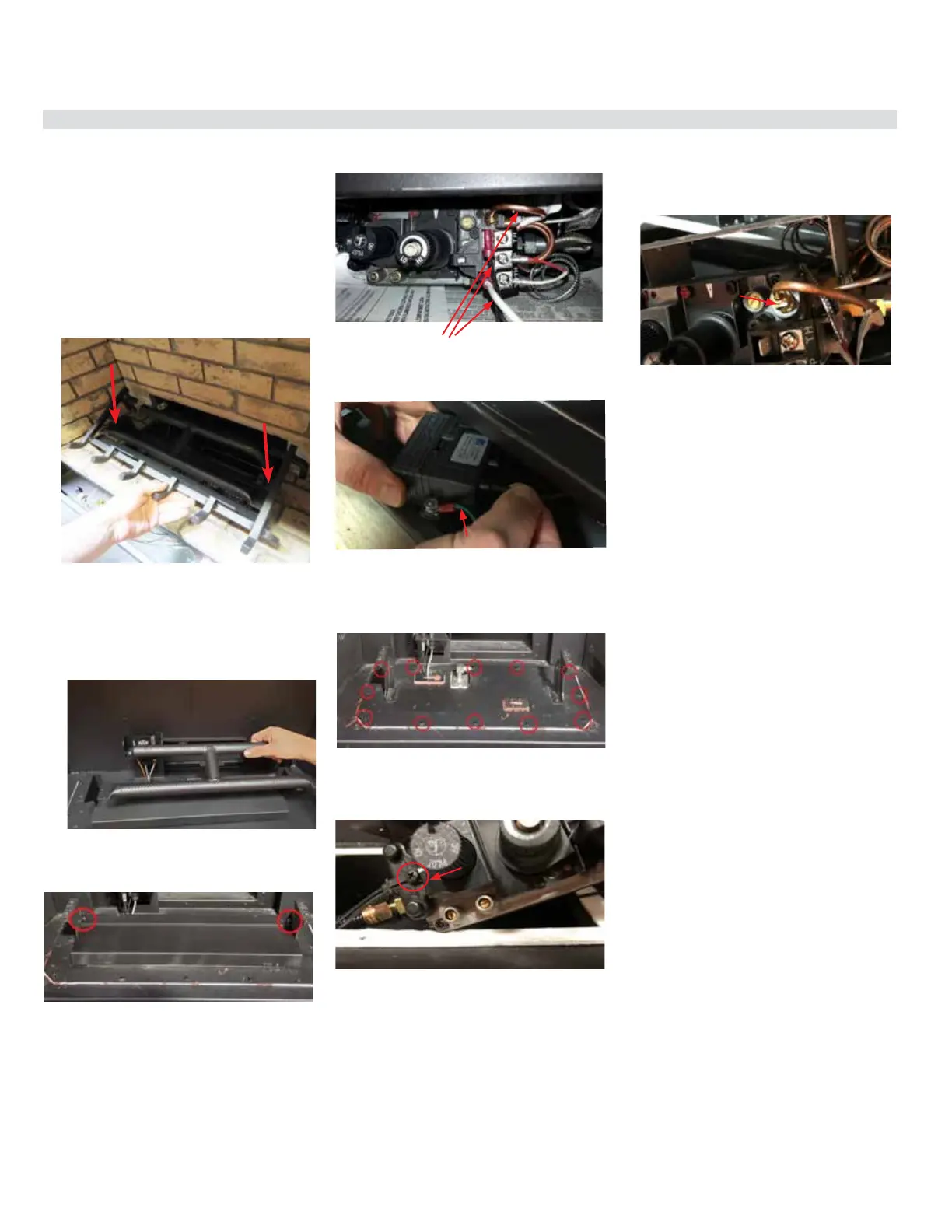

Removing Valve
12. Remove the 12 screws securing the valve tray
assembly in place (Diagram 6) and then lift out
entire assembly.
1. Shut off the gas and electrical supply.
2. Remove the safety screen.
3. Remove the glass door.
4. Remove the logs and glass.
5. Remove the log grate assembly by removing 2
screws and sliding tray forward to remove.
Diagram 1: Remove left and right screws.
Diagram 2
8. Remove 2 screws securing the fan access
(Diagram 3).
Diagram 3
Switch wires
Diagram 6
Replacing Thermocouple
1. Follow steps 1-13 for replacing valve.
2. Disconnect thermocouple at gas valve.
3. Disconnect thermocouple at pilot assembly end.
4. Replace thermocouple.
5. Reverse steps 1-13.
6. Remove lower (brick or enamel) panel.
7. Remove 3 screws securing the bruner and then
slide the burner assembly to the right to release
it from the orifice, then lift it out
10. Disconnect the two switch wires from the valve,
as shown below.
Valve Replacement
13. Remove Philips head screws securing DC
sparker box, as shown below.
11. Disconnect spark electrode from DC sparker
box, as shown below.
Diagram 5
Diagram 4
Diagram 7
9. Disconnect the inlet gas line.
Thermocouple
Electrode wire
Philips head screw
