80 | Grandview
®
G600C Gas Fireplace
installation
This heater does not require a 120V A.C. sup-
ply. In case of a power failure, it will continue
to operate using the on/off switch provided.

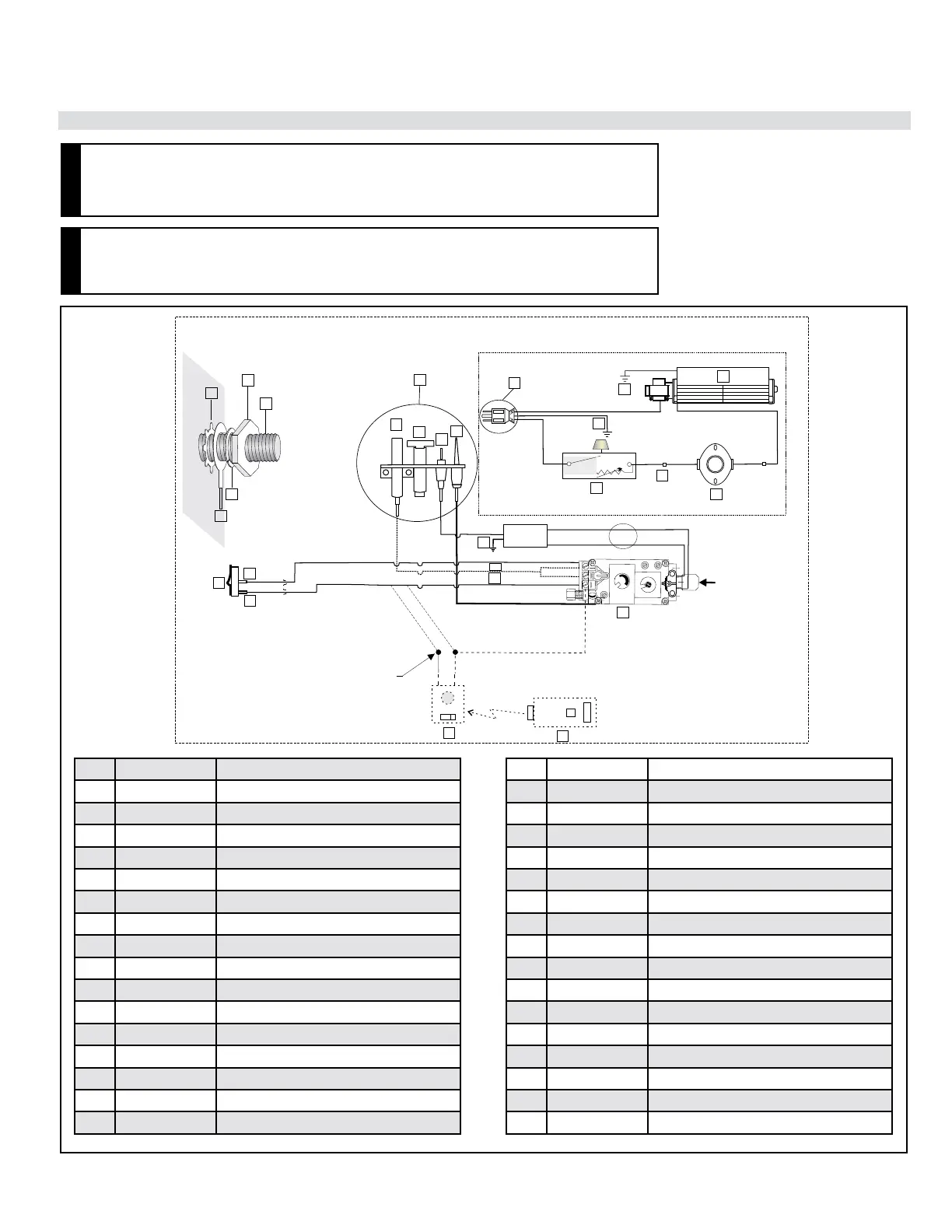

Wiring Diagram With and Without Thermostat/Remote Control
WARNING
Electrical Grounding Instructions
This appliance is equipped with a three pronged (grounding) plug for your protection
against shock hazard. Plug it into a properly grounded three-prong receptacle. Do not
cut or remove the grounding prong from this plug.
CAUTION
Label all wires prior to disconnection when servicing controls. Wiring errors can
cause improper and dangerous operation. Verify proper operation after servicing.
Ensure that the wires do not touch a hot surface and are away from sharp edges.
Item Part No. Description
1 N/A Star Washer
2 N/A Nut
3 N/A #8 Ground Lug (for mobile home)
4 N/A Lock washer
5 910-692 Fan Ground Wire
6 911-314 Two-Way Switch
7 910-805 White Wire
8 911-313 Black Wire
9 Pilot Assembly
910-038/P NG
910-039/P LP
W840470 Pilot Assembly Gasket (not shown)
10 910-341 Thermopile
11 910-096 Two-Way Pilot Hood
12 910-030 Electrode
13 910-386 Thermocouple
Item Part No. Description
14 911-159 120 V AC Power Cord
15 910-692 Green Ground Wire
16 910-412 Rotary Speed Control
17 910-962 Ground Wire
18 911-290/P Fan
19 910-811 Black Wire
20 910-142 Fan Thermodisc (normally open)
21 910-692 Ground Wire
22 910-073 DC Spark Box
23 910-074 Spark Generator c/w Switch
24 911-240 Brown Wire
25 910-478 S.I.T. Valve NG/LP
26 911-303 Remote Transmitter (Optional)
911-302 Remote Receiver (Optional)
910-407 Wall Thermostat (Optional)
910-404/P Programmable Wall Thermostat (Optional)
S.I.T. Valve
Green/Vert
Neutral/Neutre
Live/
Sous
tension
Black/
Noir
ON OFF
2
To/À Thermocouple IN
I
H
O
L
F
F
O
N
O
O
L
I
T
P
ON OFF
Regency
Brown/Brun
White/Blanc
(To/À THTP)
(To/À TH)
(To/À TH)
Gas In/Entrée de gaz
22*
Live/
Cut here/Couper ici
*Contains 1 AA battery/Contient 1 pile AA
3
4
5
1
6
7
10
11
12
13
8
9
21
14
Sous
tension
15
Black/
Noir
17
Black/
Noir
18
16
20
25
27
26
23
White/Blanc
Black/Noir
7
24
19
