Regency Grandview G600C - Venting Arrangement - Vertical Terminations - Co-Linear Flex System into Masonry Fireplaces

56 | Grandview
®
G600C Gas Fireplace
installation

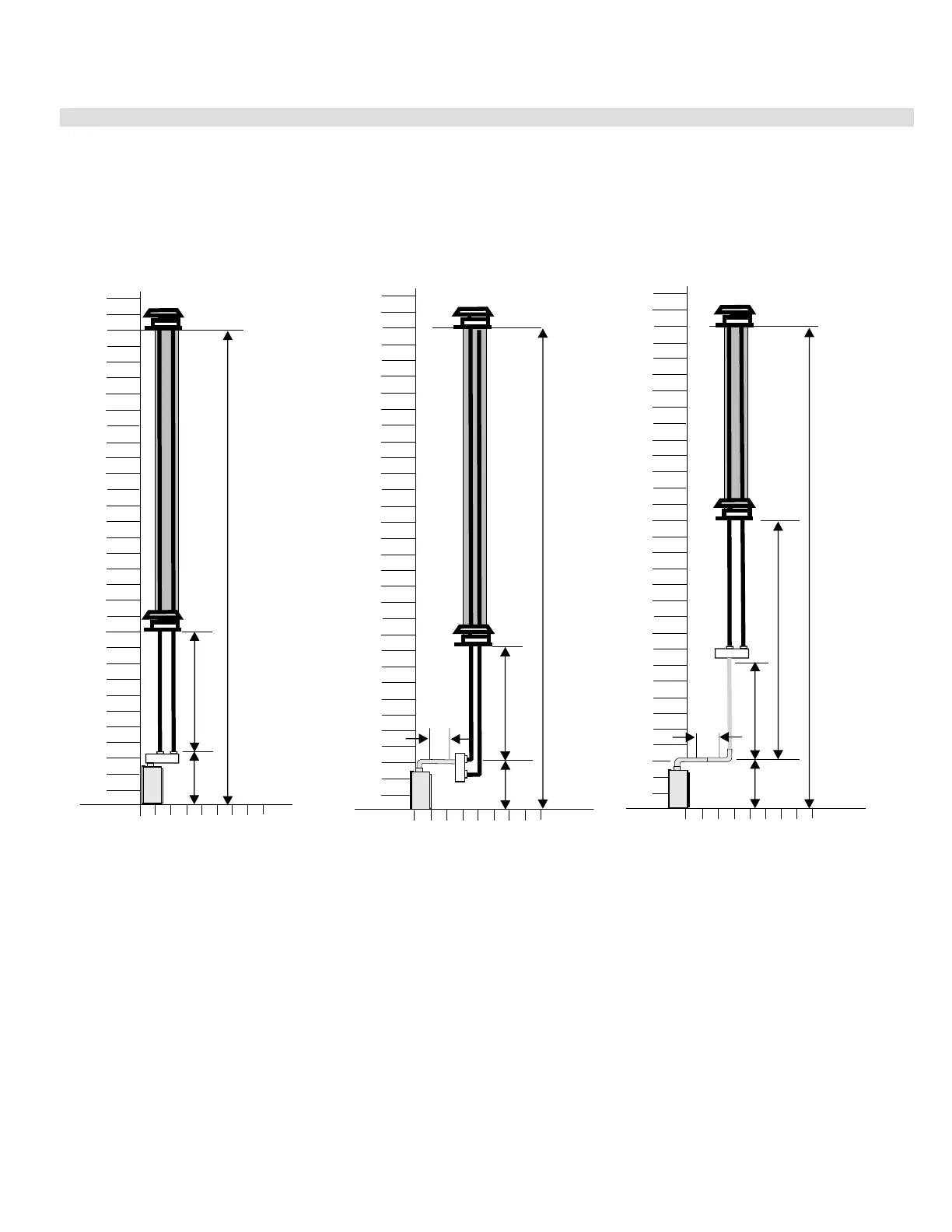

Venting Arrangement - Vertical Terminations - Co-linear Flex System Into Masonry Fireplaces
FOR BOTH RESIDENTIAL & MANUFACTURED HOMES
30' (9.14 m) Max.
8' (2,44 m) Min.
40”
1016 mm
30
Horizontal Distance (Feet)
Vertical Height (feet)
8' (2,44 m) Min.
39-1/2" 1003 mm
30' (9.14 m) Max.
30
Horizontal Distance (Feet)
Vertical Height (feet)
2' (0,61 m) max.
Combined min. of 8' (2.44 m)
6' (1.82 m) max.
39
-1/2"
1003 mm
Combined max. of 30' (9.14 m)
30
Horizontal Distance (Feet)
Vertical Height (feet)
2' (0.61 m) max.
IMPORTANT: As shown below, the unit can only be vented from the top, not from the rear.
Restrictor at Set #1 (2" open)
