Regency Grandview G600C - Clean Front Installation-Framing (Non Cool Wall)

32 | Grandview
®
G600C Gas Fireplace
installation

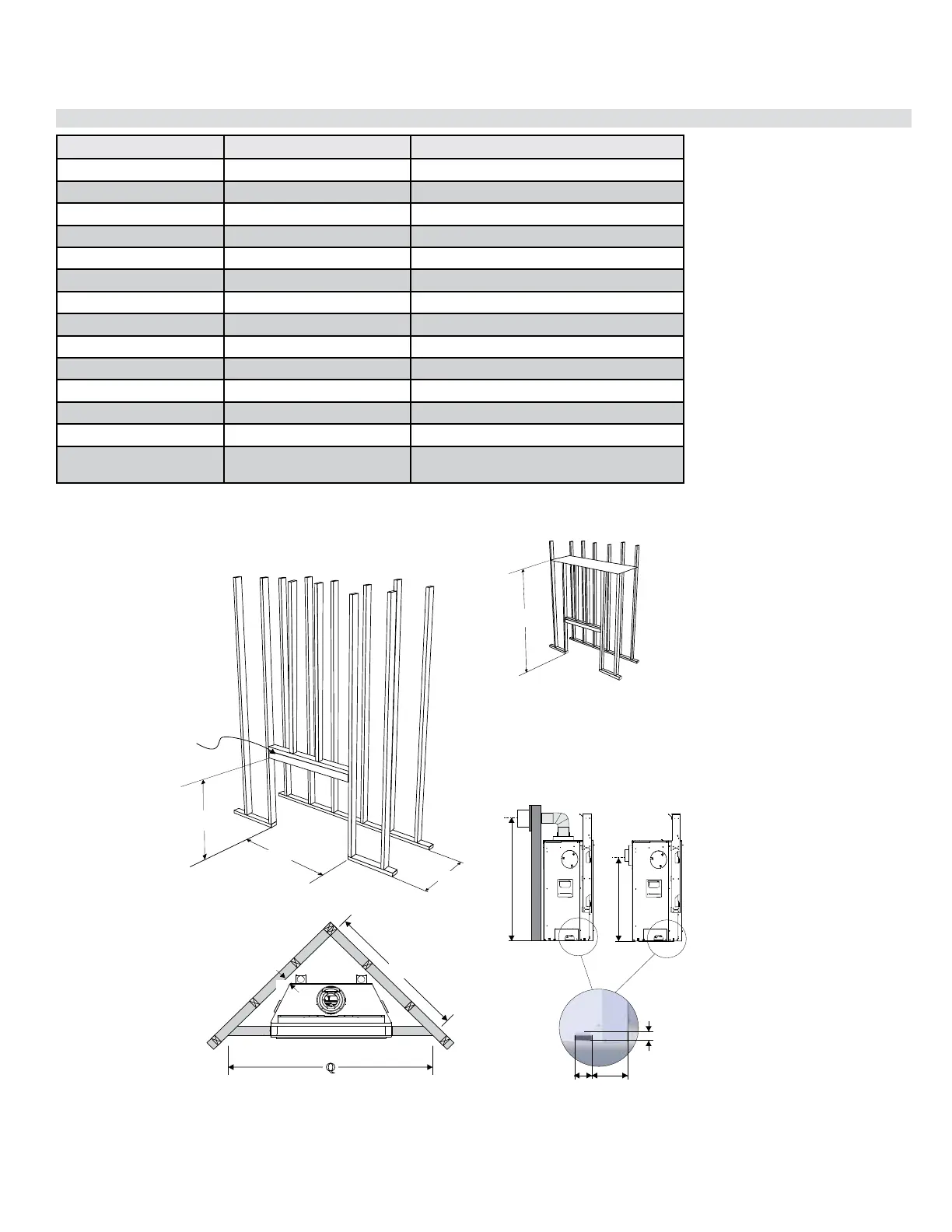

Clean Front Installation—Framing (Non Cool Wall)
Framing Dimensions Description G600C - Non Cool Wall
M Framing Width 33-1/2" (851mm)
N* Framing Height 40" (1016mm)
O Framing Depth 16-3/4" (452mm)
P (Top Vent Only) Corner Facing Wall Width 40" (1016mm)
Q (Top Vent Only) Corner Facing Wall Width 57" (1448mm)
R (Top Vent) Framed Chase Ceiling 60" (1524mm)
R (Rear Vent) Framed Chase Ceiling 43-1/2"(1105mm)
S (Rear Vent) Vent Centerline Height - Rear 25" (635mm)
S1 (Top Vent) Vent Centerline Height - Top 39-1/2" (1003mm)
T Gas Connection Height 1-7/8" (48mm)
U Gas Connection Inset 8-3/8" (213mm)
V Gas Connection Width 3-1/2" (89mm)
W Clearance to Corner of Unit 2'' (51mm)
**Non-combustible Facing
Height
13" (330mm)
* Important: Framing height requires consideration of the hearth height. Dimension N = N + the thickness of the installed hearth.
S
S
U
T
V
Q
P
M
N
O
Combustible header
R
Top Vent
Rear Vent
W
S1
** See previous page for details on non-combustible facing requirements above appliance.
