Regency Grandview G600C - Page 40

40 | Grandview
®
G600C Gas Fireplace
installation
08.06.20920-298

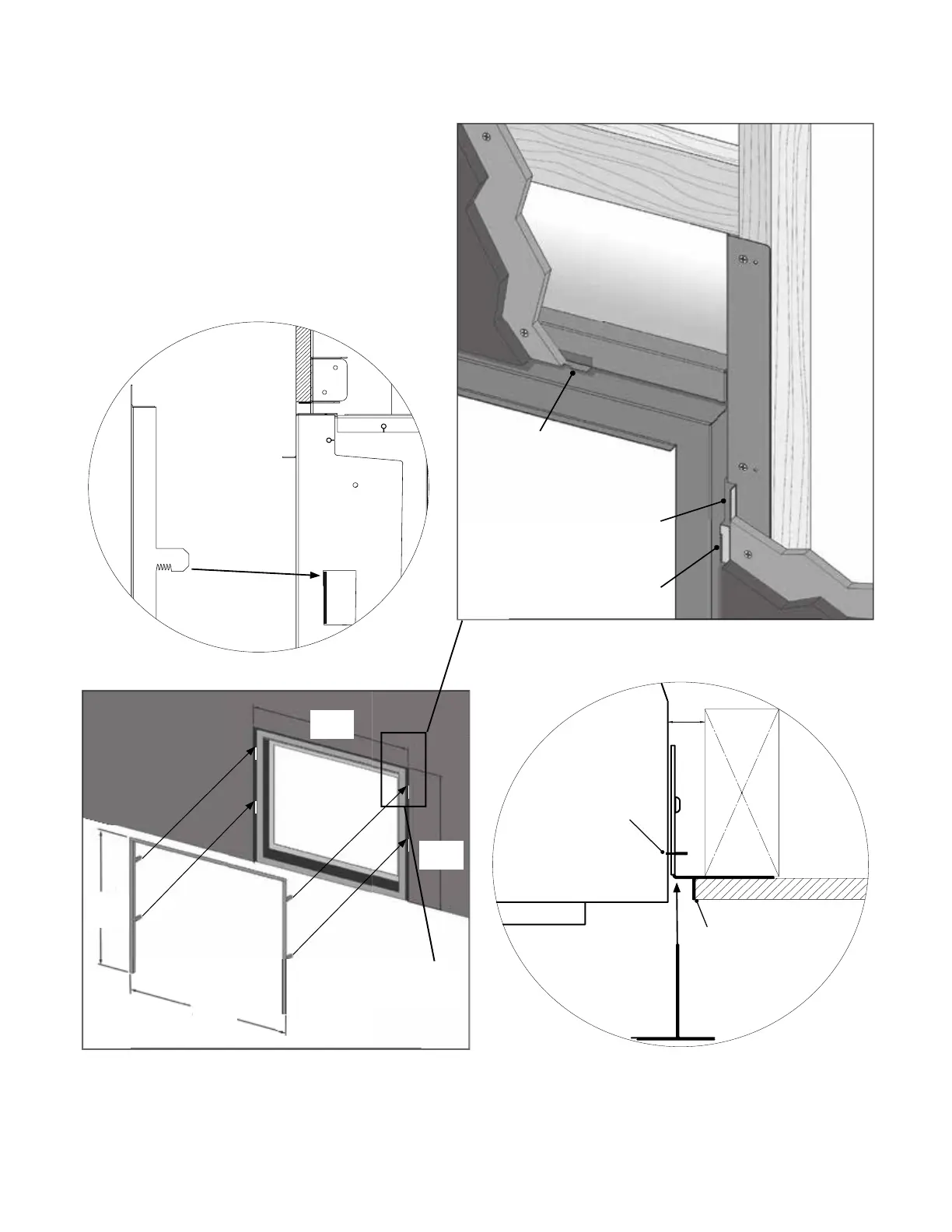

FINISHING TRIM INSTALLATION
2
Critical Finishing Gap
08.28.19920-151
FINISHING TRIM INSTALLATION
2
Nailing Flange Tabs
folded forward
Mounting Tabs folded
forward
Finishing Tr im - Finishing:
A 1/2” gap must be maintained on the sides and top of the fi replace
to allow the Finishing Tr im to be installed and removed. The fi nishing
trim has adjustment for material to protrude up to 1/4” past the front
of the fi nishing trim.
Top Nailing
Flange Tabs
folded down
3
4
"
Finishing Trim
Top View
Mounting Tab
Folded forward
Nailing Flange
folded forward
Install the faceplate by resting the arms on the fi nishing trim on the
top of the mounting tabs.
Adjust left and right to center the fi nishing trim.
Critical Finishing Gap
Side View
A 1/2” (13 mm) gap must be maintained on the sides
and top of the fireplace to allow the finishing trim to be
installed and removed. The finishing trim has adjustment
for material to protrude up to 1/4” (6 mm) past the front
of the finishing trim.
1. Install the finishing trim by resting the arms of the
finishing trim on top of the mounting tabs.
2. Adjust left and right to center the finishing trim.
G600EC/G600C
Critical Finishing
Gap
30-5/8"
(778 mm)
33-1/2"
(851 mm)
33"
(838 mm)
30-1/4"
(768 mm)
3/4"
(19 mm)
