44 | Grandview
®
G600C Gas Fireplace
installation

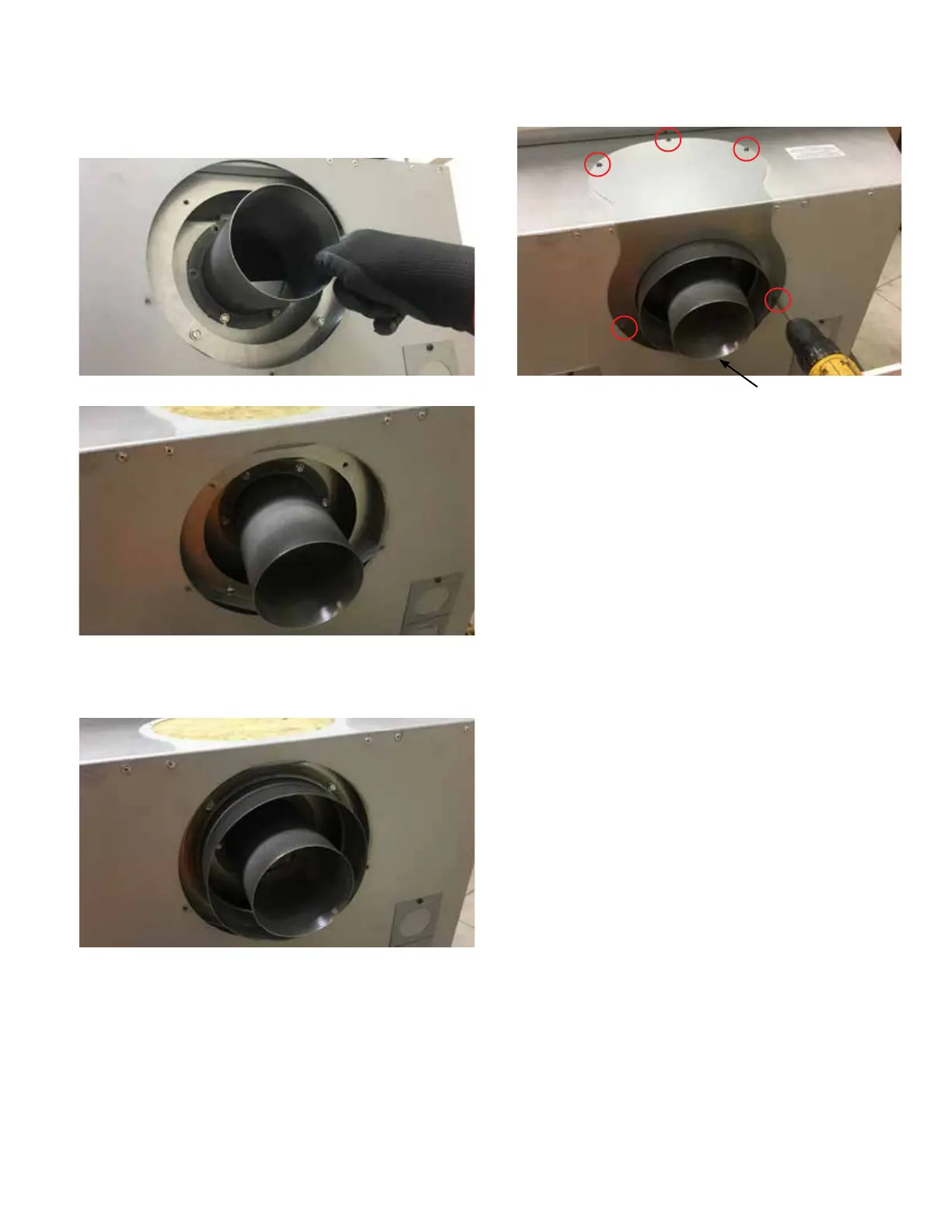

10. Install the exhaust collar onto the rear. Hang the collar onto the 2 previously
loosened bottom screws, secure in place with the 4 top screws, and then
tighten the 2 bottom screws.
Diagram 16
11. Install the intake collar onto the rear. Hang the collar onto the previously
loosened bottom screws, secure in place with the 2 top screws, and then
tighten the 2 bottom screws.
Diagram 18
12. Reinstall the collar trim piece with 6 screws.
Diagram 19
Diagram 17
Hidden screw
To Next Page
