Regency P36D-NG1 - Combustible Mantel Clearances

14
Regency
®
P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION
Drywall
12" Mantel
7 1/2" Mantel
3 1/2"
Mantel

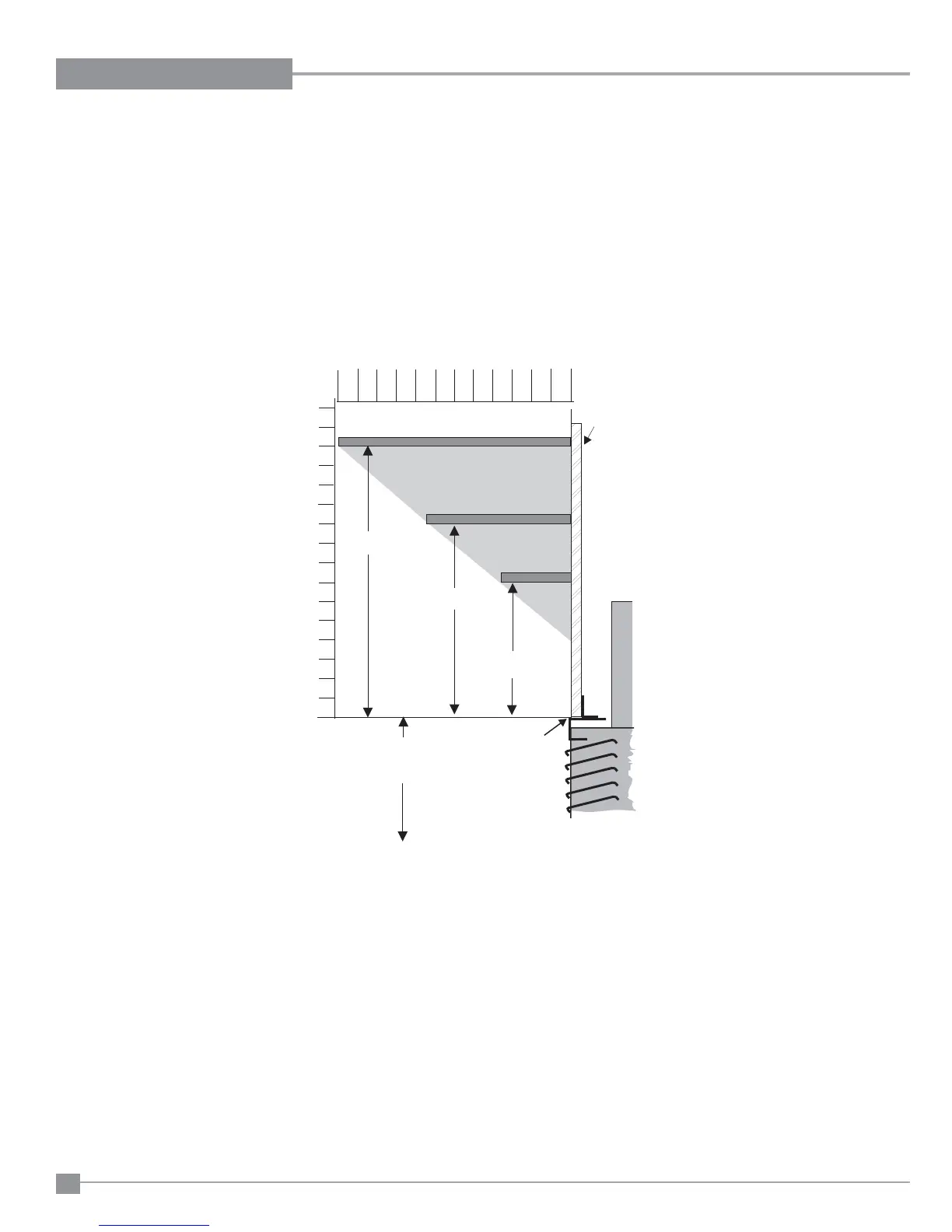

Mantel Clearances with
Flush Glass / Full Screen Doors
14"
7"
10"
30-1/2"
to floor
2
0
12
6
4
810
2
0
12
6
16
4
14
8
10
Side View
Top of
Unit
6" Standoff
Because of the extreme heat this fi replace emits, the mantel clearances are critical.
Combustible mantel clearances from top of unit are shown in Diagram 1.
Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.
REGENCY
®
COMBUSTIBLE MANTEL CLEARANCES
These drawings are to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using the above scale.
Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.
Diagram 1
