Regency P36D-NG1 - Horizontal Venting with Three (3) 90 Elbows; Horizontal Venting with Three (3) 90 O Elbows; Horizontal Venting with Two (2) 90 Elbows

28
Regency
®
P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

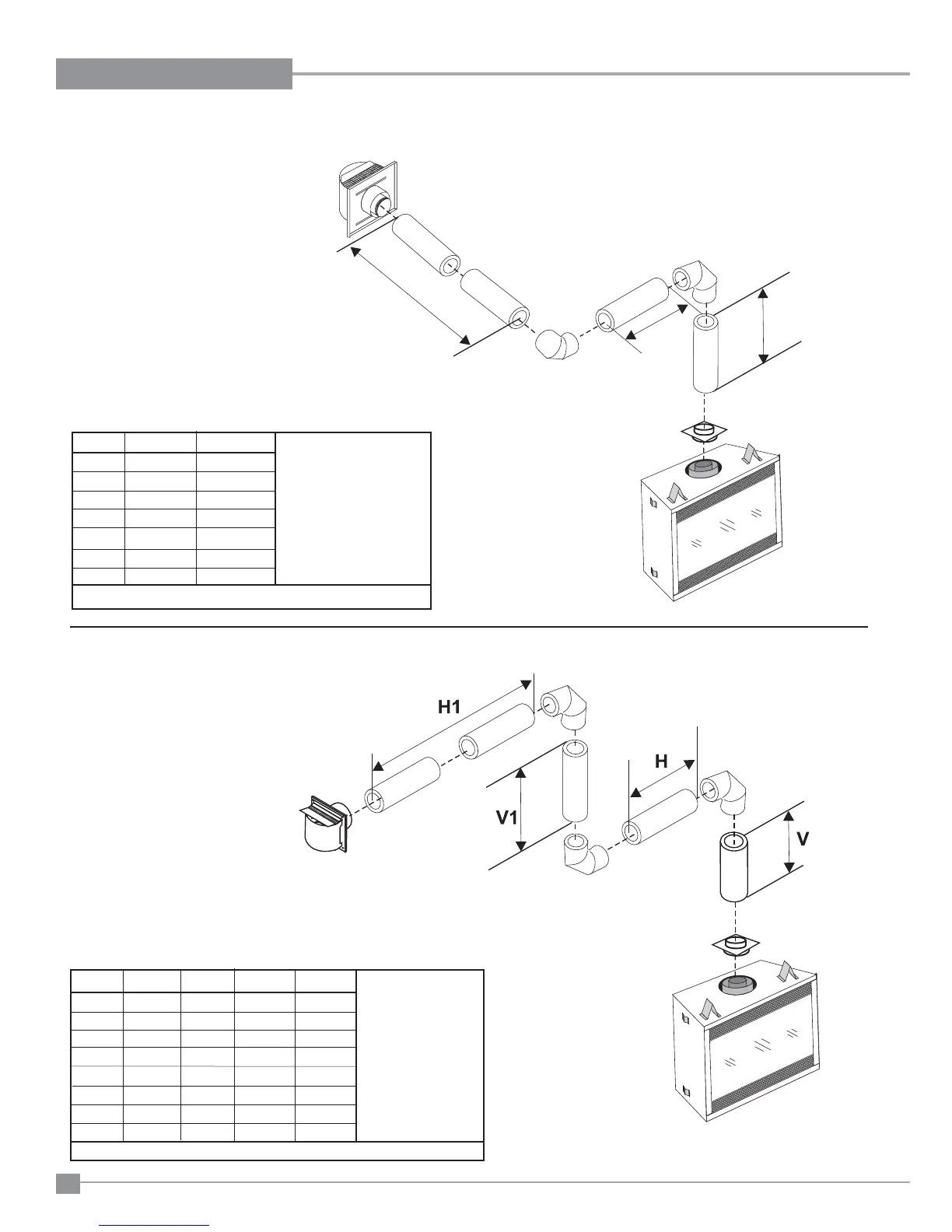

HORIZONTAL VENTING WITH TWO (2) 90
O
ELBOWS
HORIZONTAL VENTING WITH THREE (3) 90
O
ELBOWS
H
H1
V
Option V H + H1
A) 0' Min. 2' Max.
B) 1' Min. 3' Max.
C) 2' Min. 4' Max.
D) 3' Min. 5' Max.
E) 4' Min. 6' Max.
F) 5' Min. 7' Max.
G) 6' Min. 8' Max.
With these options,
maximum total pipe length
is 30 feet with minimum
of 6 feet total vertical
and maximum 8 feet total
horizontal.
Please note minimum 1
foot between 90
o
elbows
is required.
One 90
o
elbow = Two 45
o
elbows.
Lengths do not include elbow indicated.
Option V H V + V1 H + H1
A) 0' Min. 1' Max. 1' Min. 2' Max.
B) 1' Min. 2' Max. 3' Min. 3' Max.
C) 2' Min. 2' Max. 5' Min. 4' Max.
D) 3' Min. 2' Max. 7' Min. 5' Max.
E) 4' Min. 3 Max. 9' Min. 6' Max.
F) 5' Min. 4' Max. 10' Min. 7' Max.
G) 6' Min. 5' Max. 11' Min. 8' Max.
H) 7' Min. 6' Max. 12' Min. 9' Max.
With these options,
max. total pipe length
is 30 feet with min. of
12 feet total vertical
and max. 9 feet total
horizontal.
Please note min. 1
foot between 90
o
elbows is required.
One 90
o
elbow = Two 45
o
elbows.
Lengths do not include elbow indicated.
