Regency P36D-NG1 - Log Set Installation

Regency
®
P36D-1 Zero Clearance Direct Vent Gas Fireplace
41
INSTALLATION
LOG SET INSTALLATION
Rear Bracket
02-55
02-75
02-53

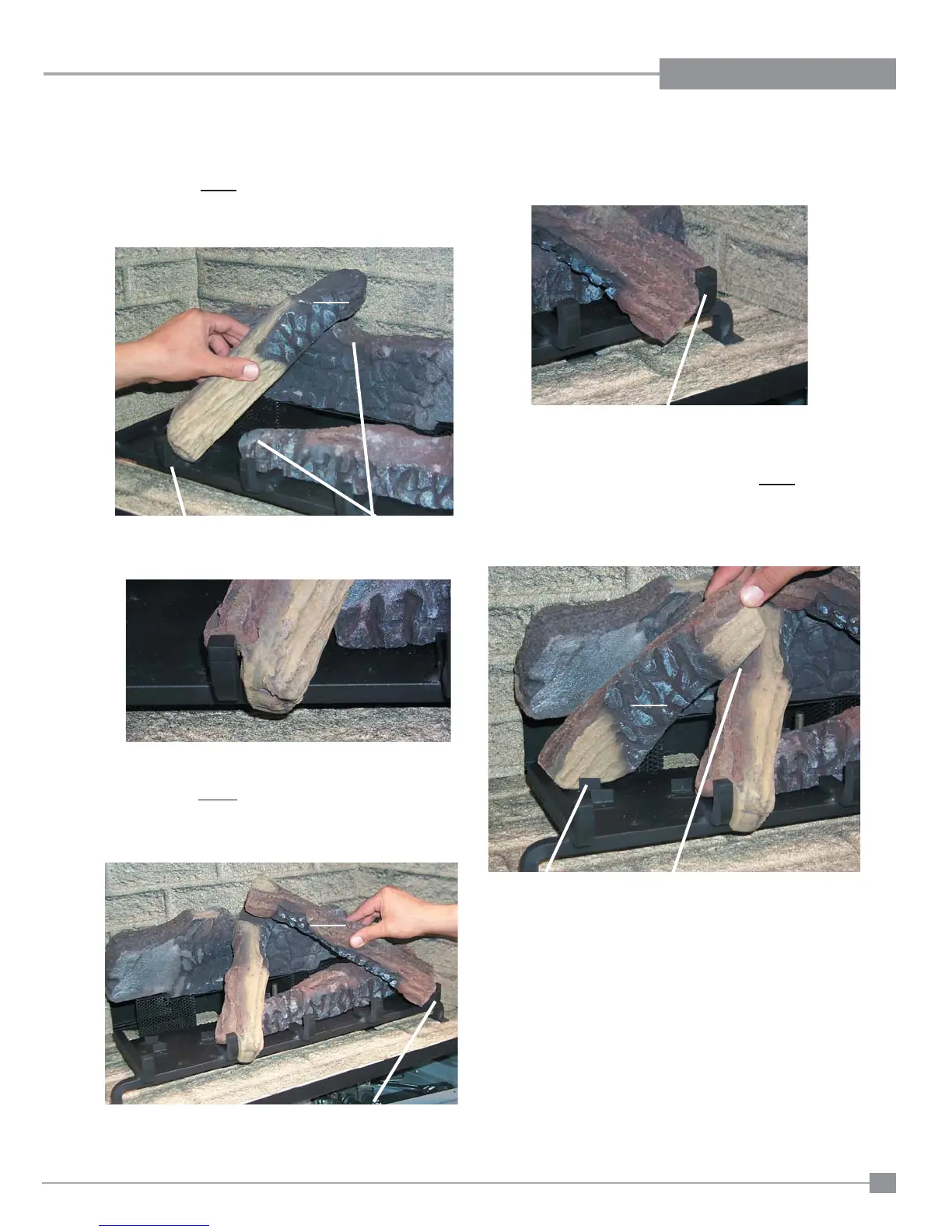

7) Place the bottom left front edge of Log 02-55 against the
rear bracket on the burner tray and rest the log on the
cutout on Log 02-53.
Cutouts
5th Grate Tab
02-54
02-53
02-51
6) Position Log 02-54 across the cutouts in Logs 02-51 and
02-53. The notch in the bottom right end fi tting against the
5th grate tab.
5) Position Log 02-53 across the cutouts in Logs 02-75 and
02-51 with the notch on the left side of the log fi tting into
the 2nd grate tab.
Cutouts
2nd Grate Tab
02-53
02-75
02-51
02-51
02-53
5th Grate Tab
