44
Regency
®
P36D-1 Zero Clearance Direct Vent Gas Fireplace
INSTALLATION

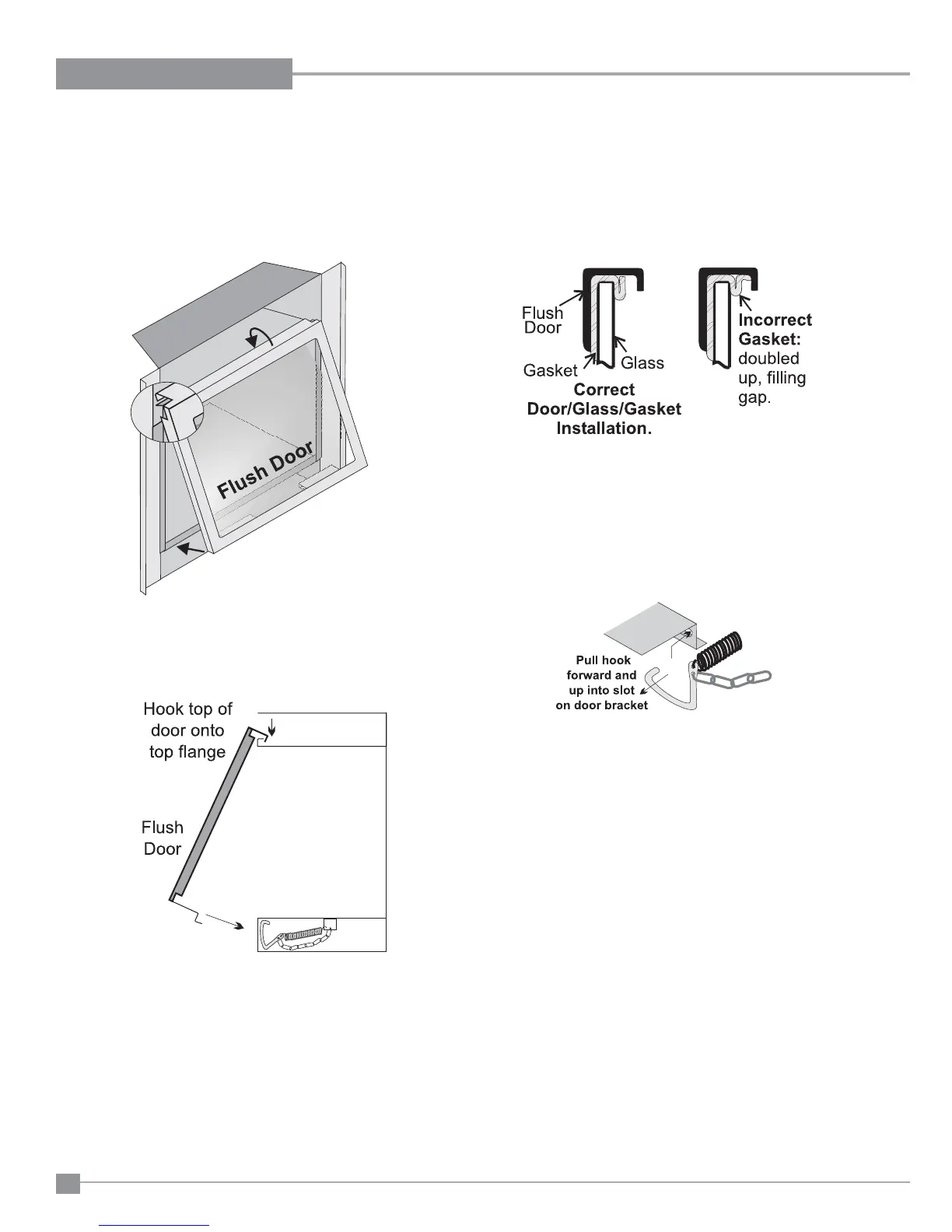

Diagram 3
Use the hook to pull the spring out until you can put the hook into the slot
on the bottom door bracket. Repeat for 2nd spring. See diagram 3.
Diagram 2
The standard fl ush door comes with a black frame. To install the frame,
simply hook the top door fl ange onto the top of the unit and swing the
door towards the unit, see diagram 1.
Be careful that the glass gasket does not roll up; there must be a gap
between the gasket and the door lip to ensure that the door sits securely
on the unit, see Diagram 2.
Diagram 1
STANDARD FLUSH DOOR
To remove the fl ush door, reverse the above steps.
