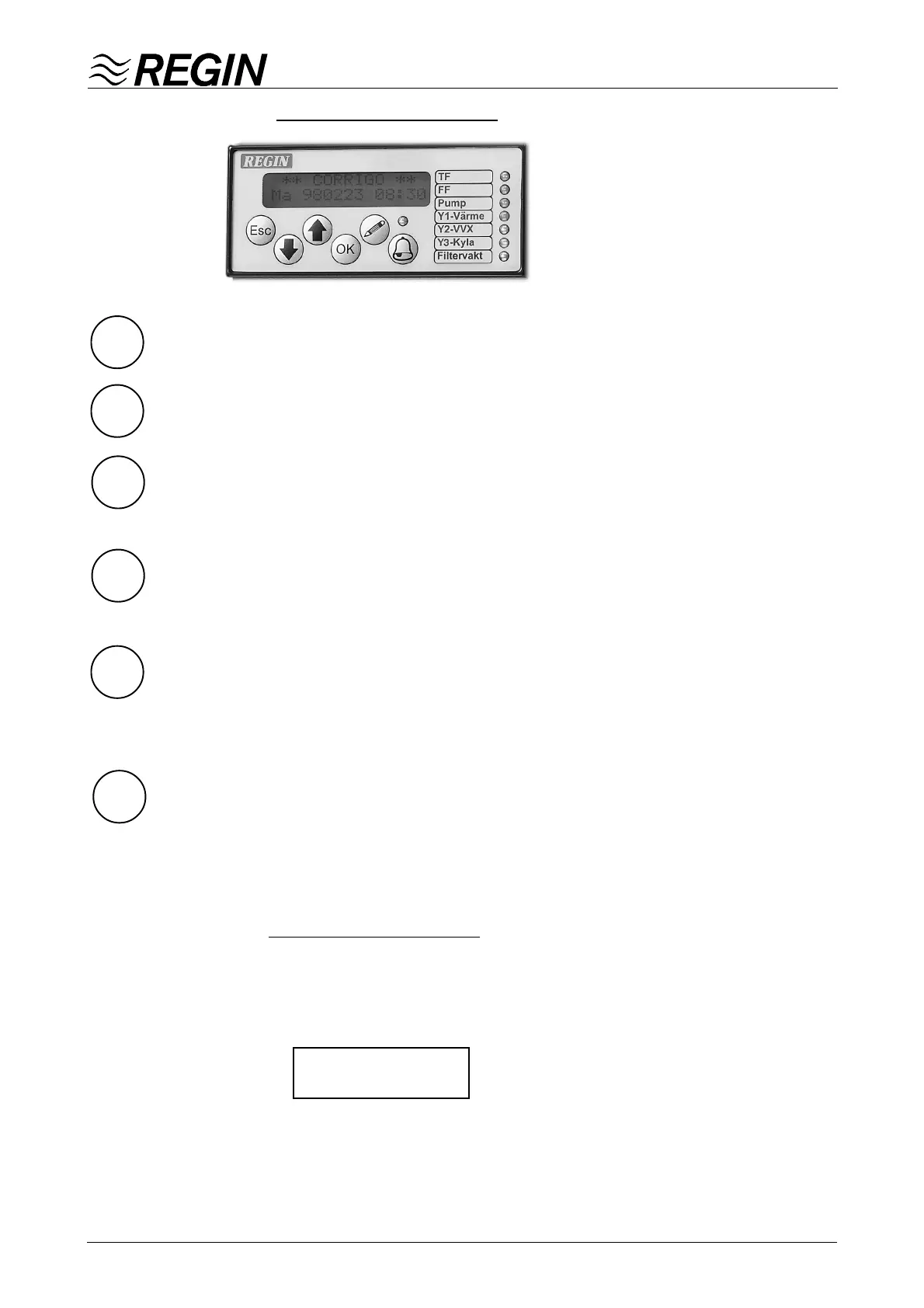

Buttons on the front
Arrow up – move upwards in the menu. In the ”Change” position the
button is used to INCREASE the value indicated. When the button is held
in a depressed position the function is repeated.
Arrow down – move downwards in the menu. In the ”Change” mode the
button is used to DECREASE the value indicated. When the button is
held in a depressed position the function is repeated.
This is used to stop an ongoing operation or to move one level upwards in
the menu. The Esc button is also used to move backwards in the menus
which contain a number of values, thus it is possible to move forwards
with OK and backwards with Esc.
(enter). Is used to confirm an item in the menu. In the ”Change” mode the
button is used to confirm a set value and/or to continue to the next set-
ting. Help menus: Press OK and the controller will show an explanatory
text for the menu in question, provided that the menu is not in the
”Change” position.
Alarm – opens the alarm queue. Press this button and active and non-
acknowledged alarms will be displayed in the menu window. The LED for
alarms placed above the alarm button is lit when there are alarms in the
queue. If there are multiple alarms use and to move between them.
An alarm can be acknowledged by using OK. To abort, press Esc.
Change – Goes over to ”Change” mode. Use this button to change
something in a menu, for example, a setpoint. You remain in the ”Change”
mode until you have confirmed the change by means of OK
or aborted the operation by means of Esc. If the buttons are not activated
the controller will stop the operation automatically after
a minute or so.
Changing language
CORRIGO is supplied with the script in English. Apart from English, CORRIGO can also
be set to use any of a number of other languages.
The language selection function is activated by holding the button depressed
during power up.The language menu is then shown:
To change language press ! again and the marker will show the current language.
Select the desired language by using the arrow buttons. Press OK to acknowlege.
When the language has been changed or if no change is to be made, press OK and
the controller’s normal menu system will start up.
