Installation in solid walls
➜ Install suction socket approx. 30 cm above
the finished floor.

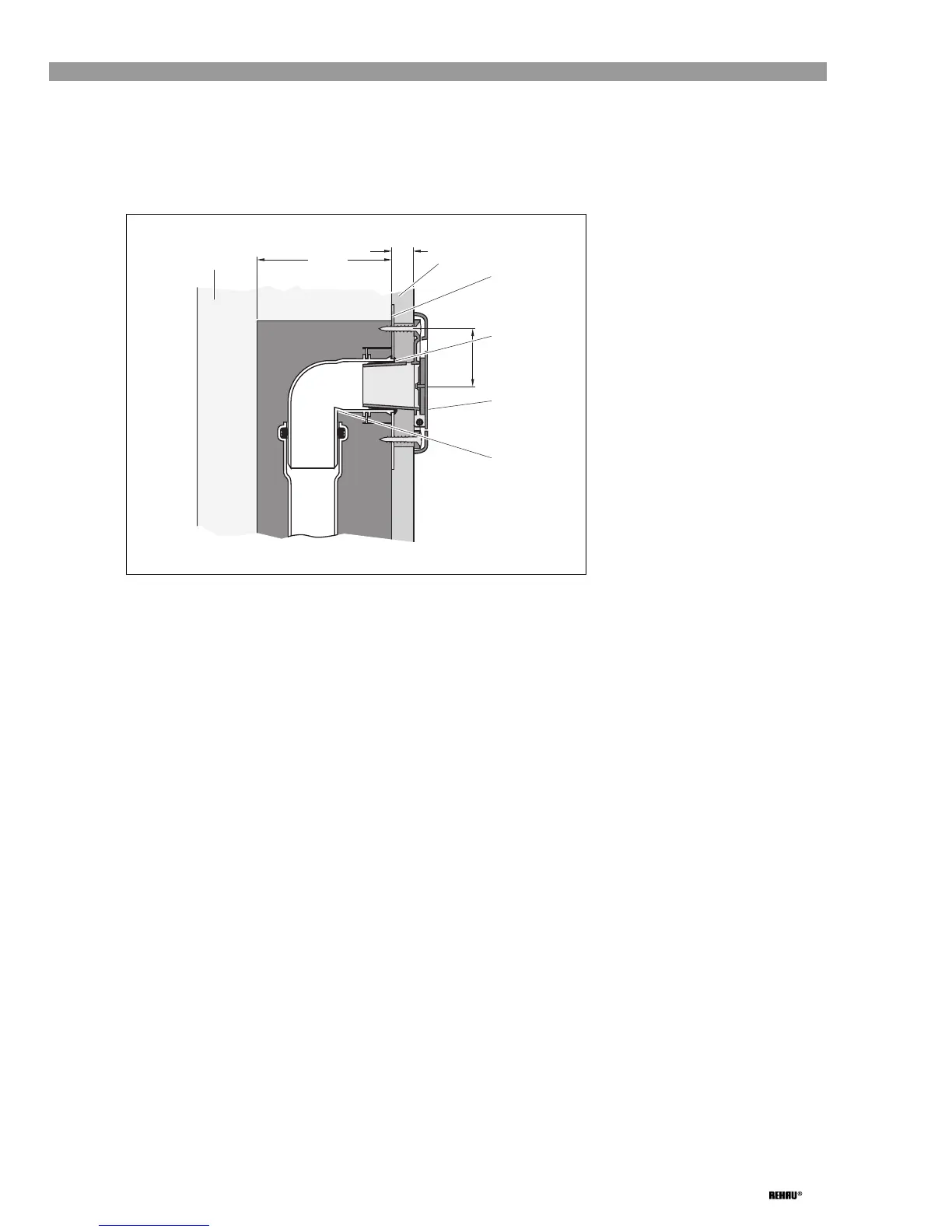

Fig. 5-5: Installation in solid walls
1Solid wall
2Plaster
3 Mounting frame
4 Suction socket adapter
5 Suction socket
6 Suction socket connecting bend
DN 50 90° with suction socket adapter
1
min. 95
max. 20
min. 10
2
3
4
50
5
6
