18
Installation in lightweight walls
■ Cladding with chip boards and gypsum
plates
➜ Install suction socket approx. 30 cm above
the finished floor.

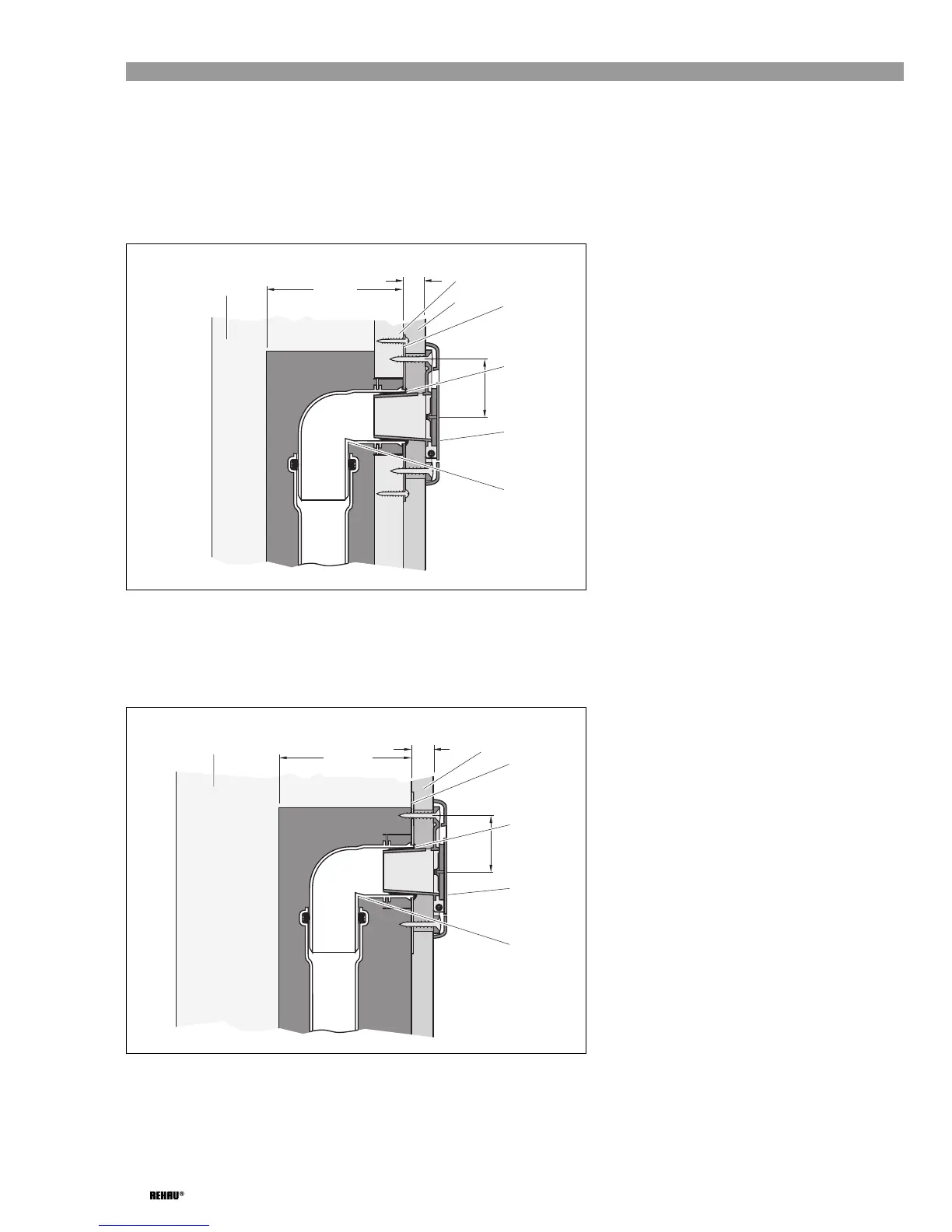

Fig. 5-6: Mounting in lightweight walls, variation 1
■ Cladding with chip boards or gypsum
plates
Fig. 5-7: Mounting in lightweight walls, variation 2
1 Lightweight wall
2Chip board
3Gypsum plate
4 Mounting frame
5 Suction socket adapter
6 Suction socket
7 Suction socket connecting bend
DN 50 90° with suction socket adapter
1
max. 20
min. 10
2
3
5
50
6
7
4
min. 95
1 Lightweight wall
2 Chip board or gypsum plate
3 Mounting frame
4 Suction socket adapter
5 Suction socket
6 Suction socket connecting bend
DN 50 90° with suction socket adapter
1
min. 95
max. 20
min. 10
2
3
4
50
5
6
