REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10

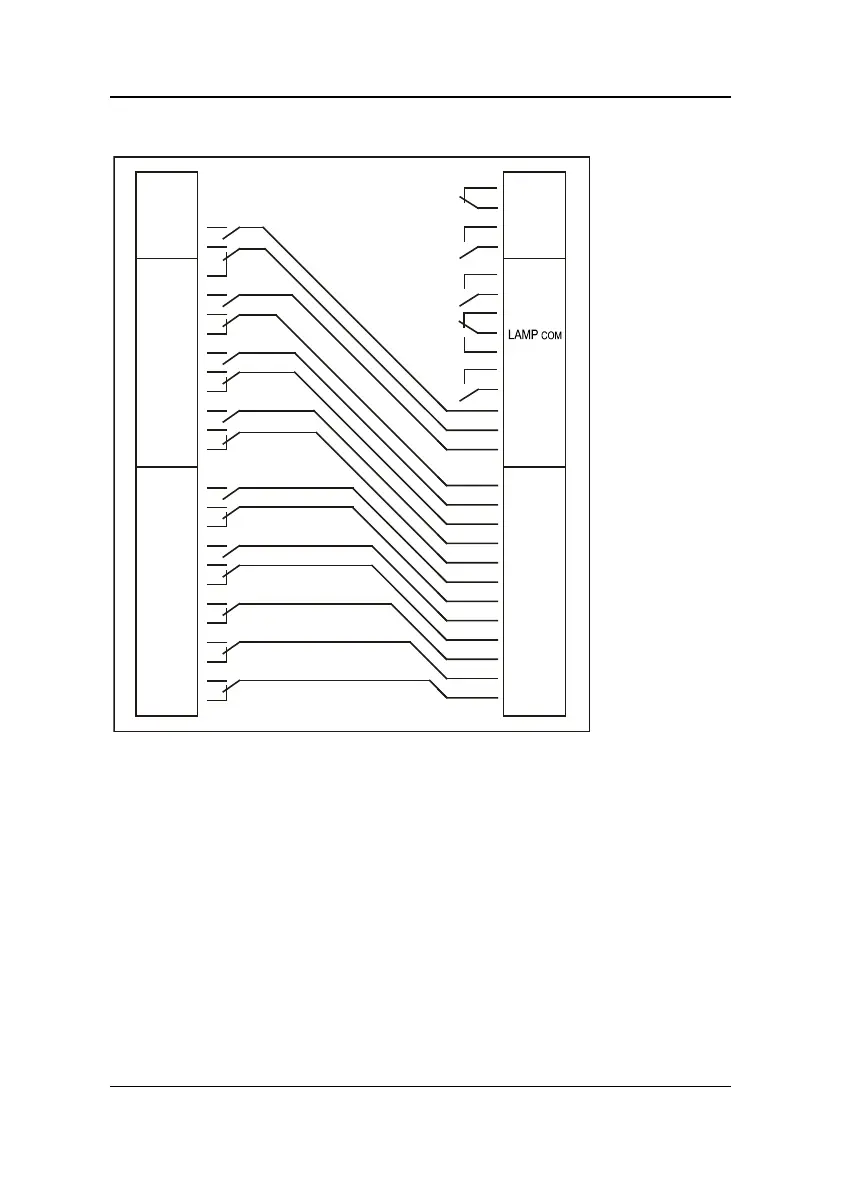

Arrangement of controls in the receiver Rx-DIN T7
A NC
A NA
B NC
B NA
CR13 NC
CR13 NA
CR12 NC
CR12 NA
CR11 NA
CR10 NC
CR10 NA
CR9 NA
CR8 NC
CR8 NA
CR7 NA
CR6 NC
CR6 NA
CR5 NA
CR4 NC
CR4 NA
CR3 NA
CR2 NC
CR1 NA
V-ALIM
V-ALIM
A
COM
CR12 COM
CR11 COM
CR10 COM
CR9 COM
CR8 COM
CR7 COM
CR6 COM
CR5 COM
CR4 COM
CR3 COM
CR2 COM
CR1 COM
ABIL
ABIL
CLAX
CLAX
START
STOP
STOP
LAMP NC
B COM
CR13 COM
START
CR2 NA
LAMP NA
V-ALIM = Receiver power supply
STOP = Stop/Emergency Contact (N.C. with transmitter active)
START= Start Contact (N.A.)
CLAX = Horn Contact (N.A., it closes with the START command)
LAMP = Contact for flashing light (N.C. with transmitter active)
ABIL = Enabling Contact (N.A., it closes with any control button)
CR1-12 =
Control relay contacts
CR13, A, B =
Contacts of the relays assigned to the auxiliary
button
N.A. =
Normally Open
N.C. =
Normally Closed
COM =
Common contact supply
Figure 10
REMdevice
®
- ITALY page 15 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
