REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10

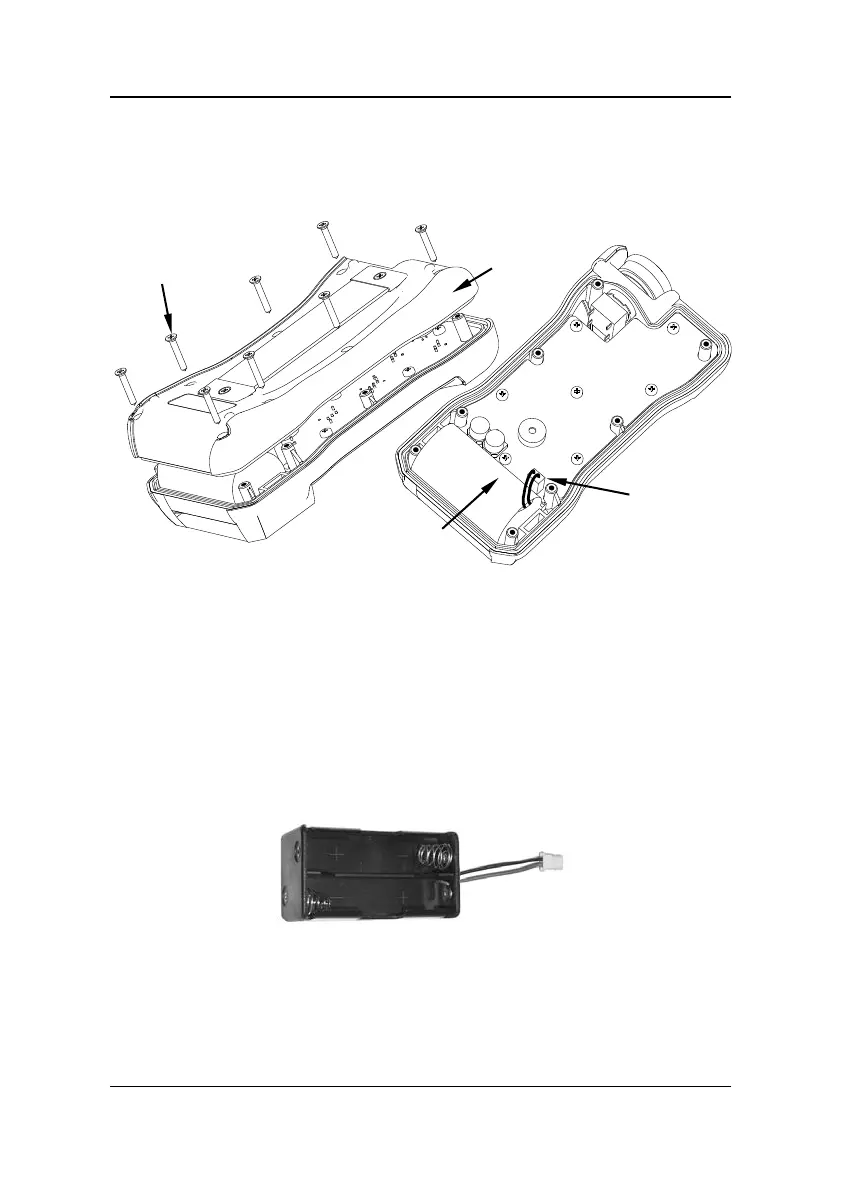

CHANGING THE BATTERY
Remove the 8 closing screws and open the transmitter cover.
Take out the battery connector and replace it with a new one.
Close the cover and retighten the closing screws.
The battery is not rechargeable, do not apply voltage to its
terminals, do not expose to high temperatures or to flames.
Do not dispose of old batteries in the environment and do not throw
them into the containers for household waste.
The batteries must be disposed of according to local regulations,
using the disposal service available in your own territory.
As an alternative to the battery provided it is possible to use alkaline
batteries or ones that can be recharged with the battery charger
provided.
BATTERY
CONNECTOR
BATTERIA
CLOSING
SCREWS
COVER
Figure 11
BATTERY
Figure 12
page 18 of 28 REMdevice
®
- ITALY

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
