OPERATING PRINCIPLE
Description of the Transmitter
The commands given with the buttons are processed by the
microprocessor which constructs the coupling telegram including the
univocal code and sends it to the radio transmission module.
Description of the Receiver
The coupling telegram received by the radio receiving module is
processed by both microprocessors μPA and μPB which check its
authenticity, comparing it with the univocal code. If the data received
are valid, microprocessor A activates the Safety Relays while
microprocessor B activates the relays of the controls.
In the case of active or passive emergency commands, lack of radio
signal or disturbance, the microprocessors A and B both block the
operating machine.
The processing of the data is carried out independently in the two
microprocessors. This means that safety is always guaranteed even
in the case of a breakdown of one of the two microprocessors
(redundant safety system).

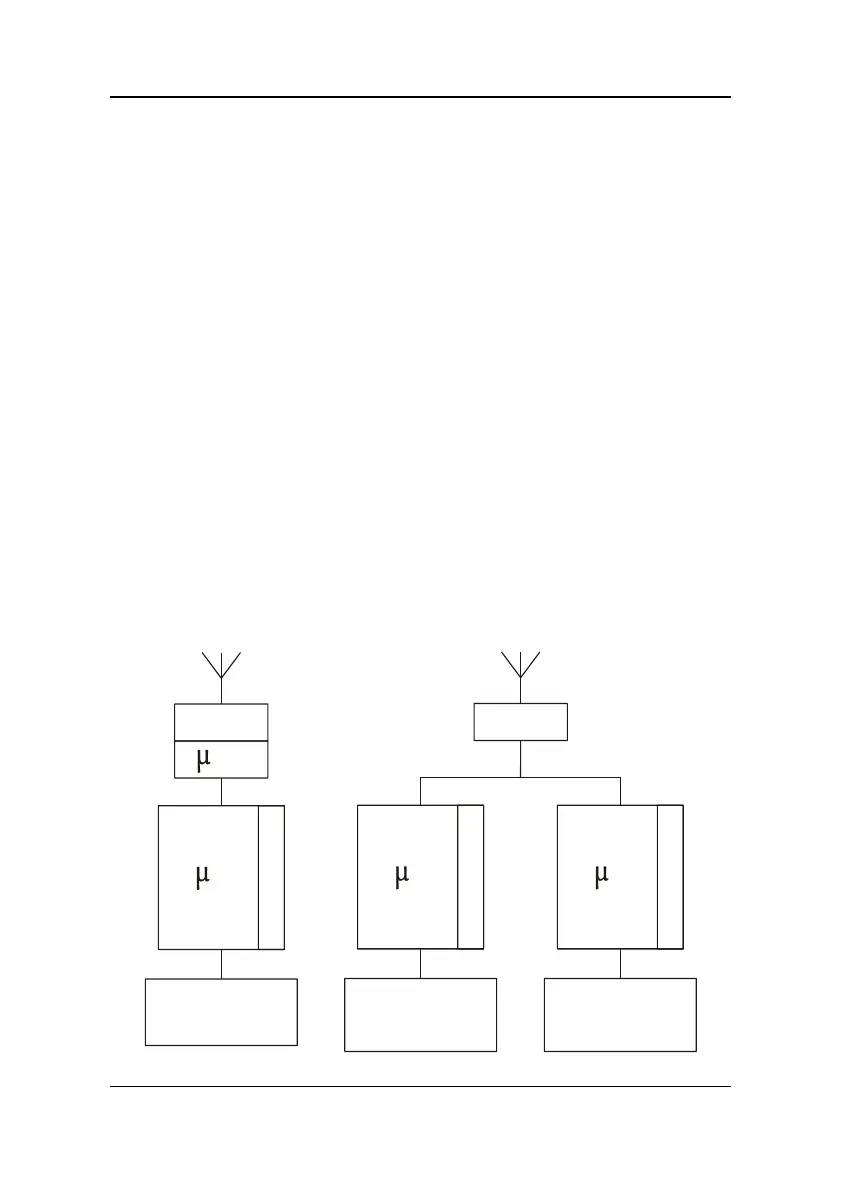

Radio control device block diagram
P A
P B
Buttons
CODE
RTX
P A
Safety
relay
CODE
RTX
Transmitter
P B
Control
relay
CODE
Receiver
REMdevice
®
- ITALY page 25 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
