REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10
CHANGING THE TRANSMITTER
In the event of malfunction, breakage or loss of the transmitter, it is
possible to replace it with a new one.
The programming of the code involves only the transmitter, while the
receiver is combined and tuned automatically, thanks to the exclusive
new patented “REMSYS CODE” System. For this reason the serial
number of the radio control device is marked only on the Receiver.
The replacement of the transmitter does not involve any operation of
modifying or labelling the transmitter itself.
• Disconnect the power from the receiver: if it is powered by the
electric panel of the machine, turn off the main switch.
• Release the red Stop/Emergency
mushroom button of the transmitter.

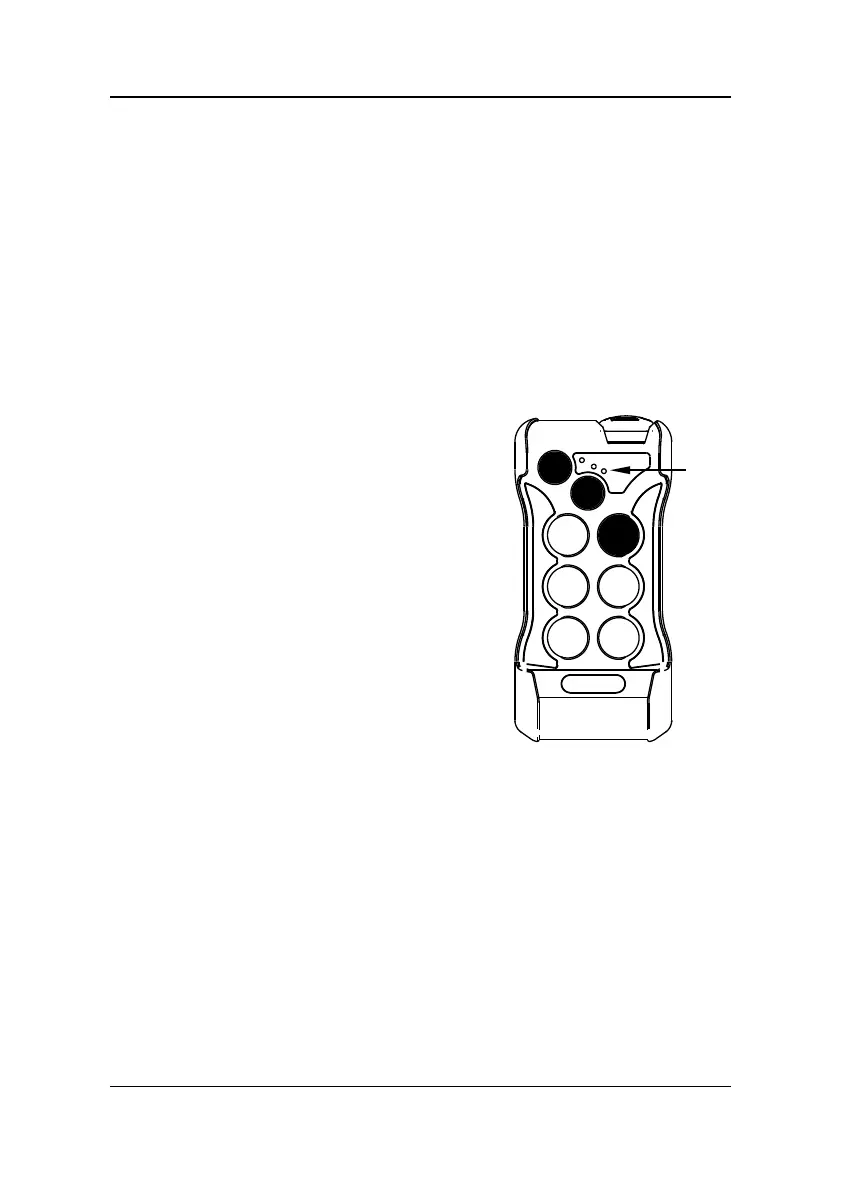

• Press the buttons 2 and 7 together and
simultaneously the Start button S, and
release.
The green led ON starts to blink
rapidly.
• Switch on the power to the receiver.
• When the transmitter recognises the
receiver, the green led ON lights with a
fixed light.
• Switch off the receiver by pressing the
red Stop/Emergency mushroom button.
• Wait about 10 seconds, after which the
new transmitter is ready for use.
If the radio control device does not work, repeat the entire
operation.
1 2
3 4
5 6
7
S
GREEN LED
(ON)
Figure 13
REMdevice
®
- ITALY page 19 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
