REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10
INSTALLATION OF THE RADIO CONTROL DEVICE
REMdevice is at the disposal of installation technicians to supply
useful information that will ensure the correct installation and
commissioning of the radio control device.
The installation of the radio control device on operating machines
must be carried out in compliance with the Machines Directive and
the harmonised regulations. Installation must be performed by
qualified technical personnel, who know the technical characteristics
of the radio control device and of the operating machine, and who
are enabled to compile the document certifying correct installation.
The installer is responsible for any damage to persons or things
resulting from receiver wiring errors, from failure to observe the
safety regulations, from the use of unsuitable material for installing
the receiver, and from non inspection or incomplete inspection of the
radio-controlled machine.

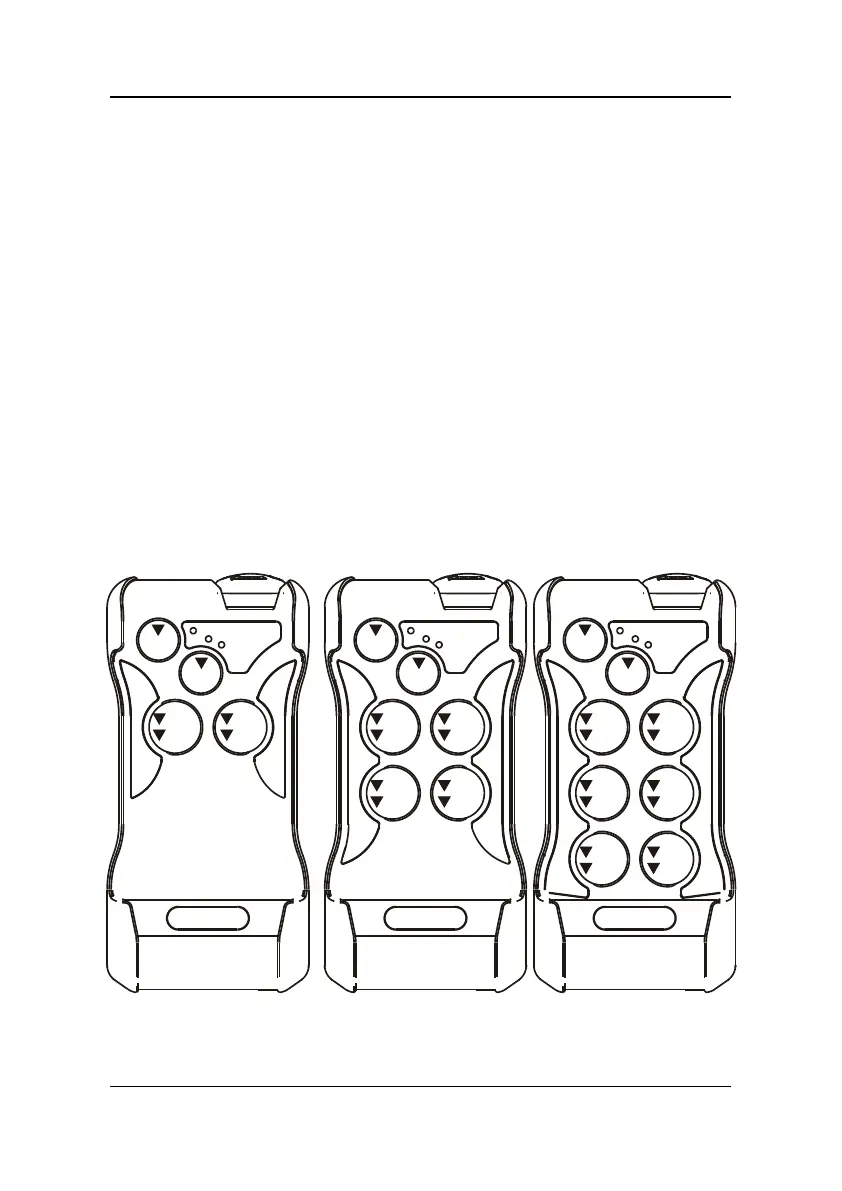

Position of the controls in the transmitter
See also the paragraph: CHANGE OF RECEIVER FUNCTIONS
CR1
CR2
CR3
CR4
CR5
CR6
CR7
CR8
CR13
START
CR1
CR2
CR3
CR4
CR13
START
CR1
CR2
CR3
CR4
CR5
CR6
CR7
CR8
CR9
CR10
CR11
CR12
CR13
START
T3 T5 T7
Figure 3
REMdevice
®
- ITALY page 7 of 28

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
