REMdevice t3 User Manual

Instruction Manual
Radio control devices T3, T5 and T7.
version 1.4 Genn. 10
TX OFF
TX ON
Command
TX ON
TX OFF
Power ON
Power OFF
REM device
RADIO CONTROL EQUIPMENT
Frequency
Serial Number
Power Supply
!
RUBY-BOX RECEIVER
TECHNICAL DATA
Protection degree: IP67
Material: ABS V0
�
REMsys CODE
Link System
PATENTED - BREVETTATO
90 mm
260 mm
ONLINKPLL
Power ONTX OFF
Power ONTX ON
Power ONCommand
Power
Supply
Serial N.
Freq.
Protection degree: IP20
Relay contact 4A 115Vac
Stop Relay: 4A 115Vac
REM device
RADIO CONTROL EQUIPMENT
TECHNICAL DATA
�
®
REM device
RADIO CONTROL EQUIPMENT
Frequency
Serial Number
Power Supply
�
REMsys CODE
PATENTED
BREVETTATO
ECOBOX-T7
!
Protection degree: IP65
166,00 mm

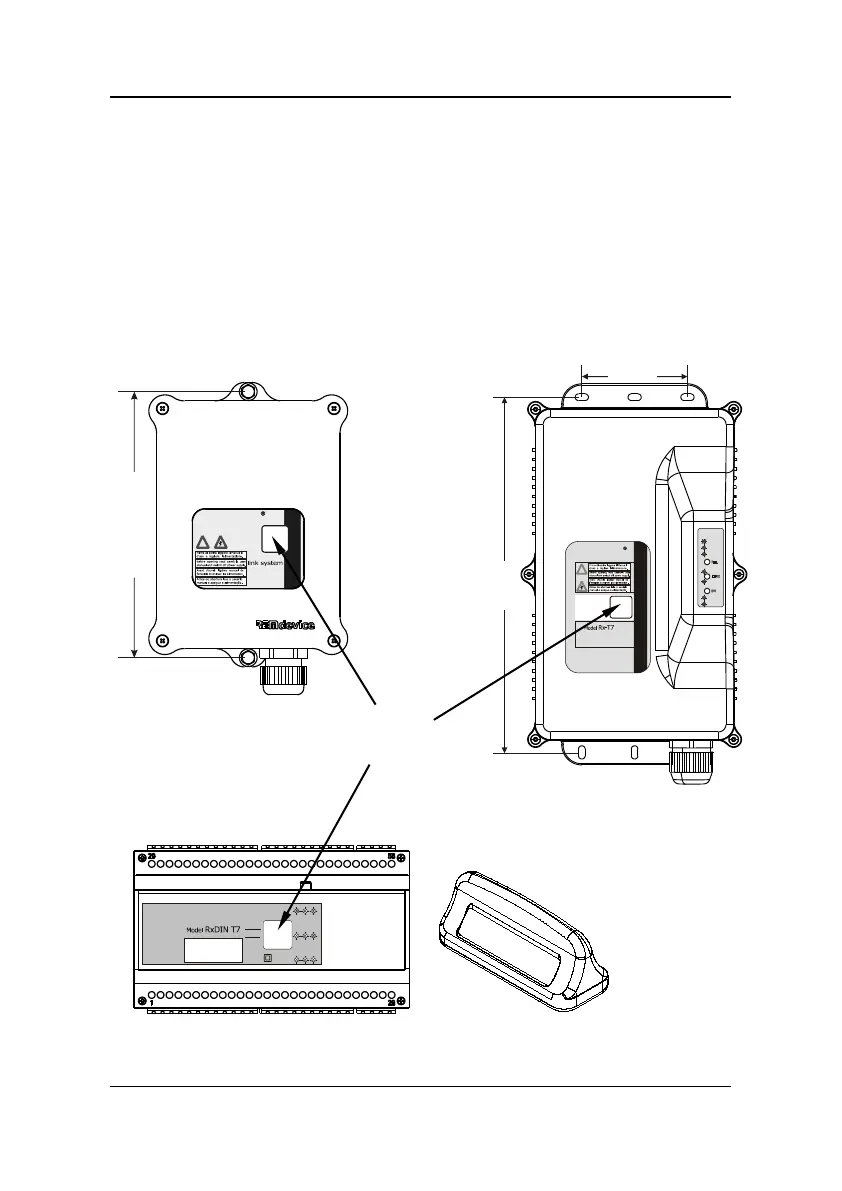

Two receiver models are available:
• ECOBOX watertight receiver for outdoor use
• Ruby-T7 watertight receiver for outdoor use
• Rx-DIN T7 DIN receiver for indoor use with external aerial
The receiver must be placed in a position where it is easily accessible
for the maintenance and repair personnel.
Receiver
Ruby-T7
Figure 4
SERIAL
NUMBER
Receiver
Rx-DIN T7
EXTERNAL
AERIAL
Receiver
ECOBOX
page 8 of 28 REMdevice
®
- ITALY

REMdevice t3 Specifications

Operating Environment

operative frequency range 1	869.700 – 870.000 MHz
operative frequency range 2	433.050 – 434.790 MHz
operating and storage temperature	-20°C / +70°C

Power

power supply option 1	12-24Vdc 1, 0A
power supply option 2	24-48Vac/dc 50-60 Hz 0.4A
power supply option 3	48-115Vac/dc 50-60 Hz 0.4A
power supply option 4	115-230Vac/dc 50-60 Hz 0.2A

Receiver Specifications

command relay contacts capacity	4A 115 Vac.
stop relay contacts capacity	4A 115 Vac.
range of control	100 mt.

Transmitter Specifications

radio frequency output power	1 to 10 mW
supply voltage	3.6 Vdc.
power consumption range	13.5 mA to 24 mA
battery	integrated lithium ions 3.6V
working autonomy	up to 1200 hours (20°C)
low battery warning	at 30 hours left

Dimensions and Weight

container dimensions	158×90×75 mm (L×H×D)
watertight case Ruby-T7 dimensions	169×266×89 mm (L×H×D)
watertight case ECOBOX dimensions	124×176×45 mm (L×H×D)
transmitter dimensions	176x85x37 mm (L×H×D)
transmitter weight	350 g
