Renault Clio Cup - Rear Axle Geometry Variations

2010 Release
E-24

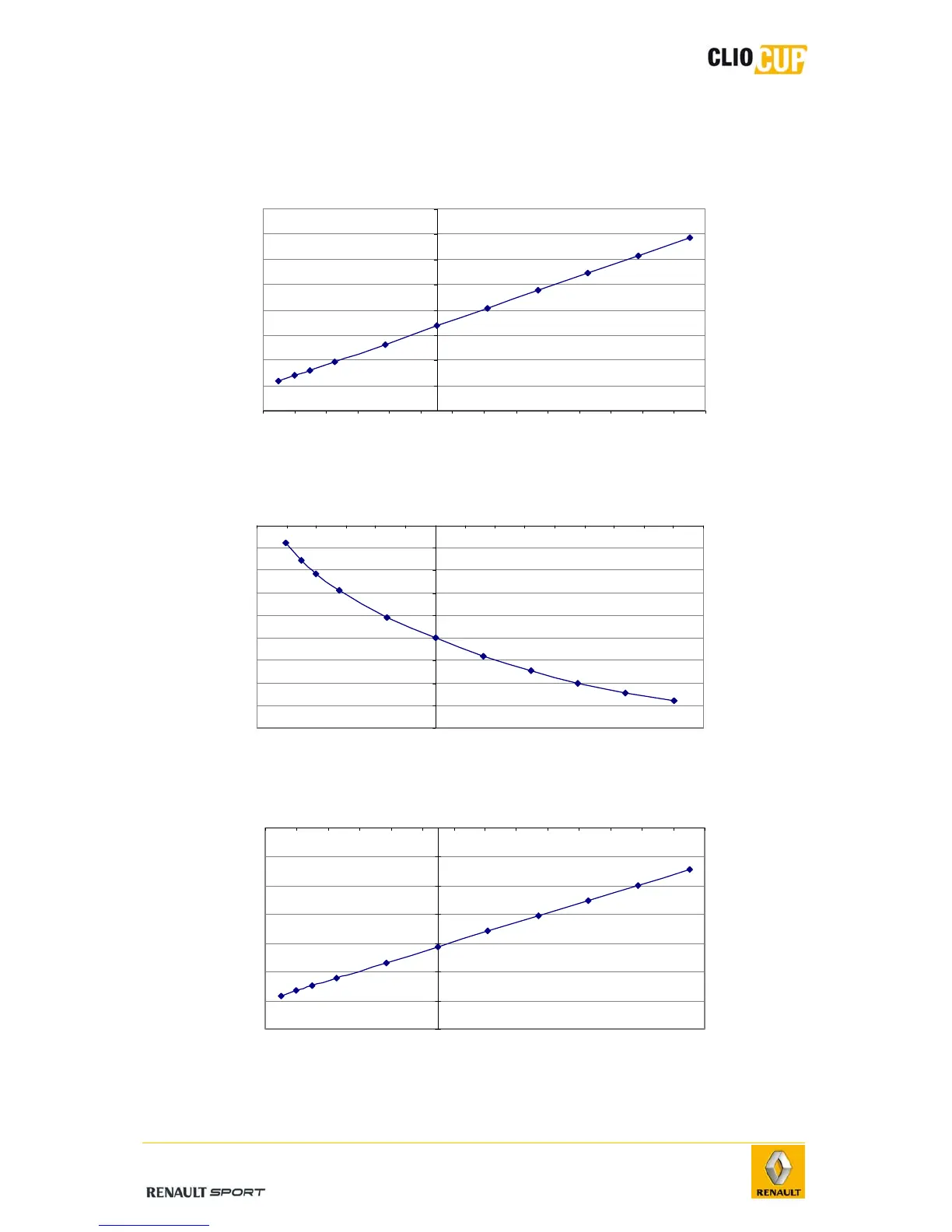

4.3.2 GEOMETRY VARIATIONS
Roll center height variation
114
115
116
117
118
119
120
121
122
-55 -45 -35 -25 -15 -5 5 15 25 35 45 55 65 75 85
Suspension travel (mm)
0 mm for 110 mm body height
Roll center height (mm)
ReboundCompression
Per-wheel camber variation
-2,08
-2,06
-2,04
-2,02
-2
-1,98
-1,96
-1,94
-1,92
-1,9
-60-50-40-30-20-100 102030405060708090
Suspension travel (mm)
0 mm for 110 mm body height
Camber (°)
ReboundCompression
Per-wheel alignment variation
-0,7
-0,6
-0,5
-0,4
-0,3
-0,2
-0,1
0
-55 -45 -35 -25 -15 -5 5 15 25 35 45 55 65 75 85
Suspension travel (mm)
0mm for 110 mm body height
Alignment (°)
ReboundCompression
