Renault Clio Cup - Clio Cup Steering System Service; Steering Unit and Axial Ball Joint Service

2010 Release
E-29
4.4 STEERING
4.4.1 STEERING UNIT
Axial ball joint
Specialist tools
 Dir. 1305-01 Axial ball joint removal-refitting tool.
 Dir. 1741 Steering unit bar retainer tool.
 TAV 476 Ball joint puller.
The axial ball joint is replaced with the steering unit in place on the vehicle. Indeed, the
Dir. 1741 or Dir. 1305-01 tool is used to connect the bar to the steering unit.
To avoid damaging the pinion teeth and steering unit bar during this operation, it
MUST be supported using the tool: Dir. 1741.

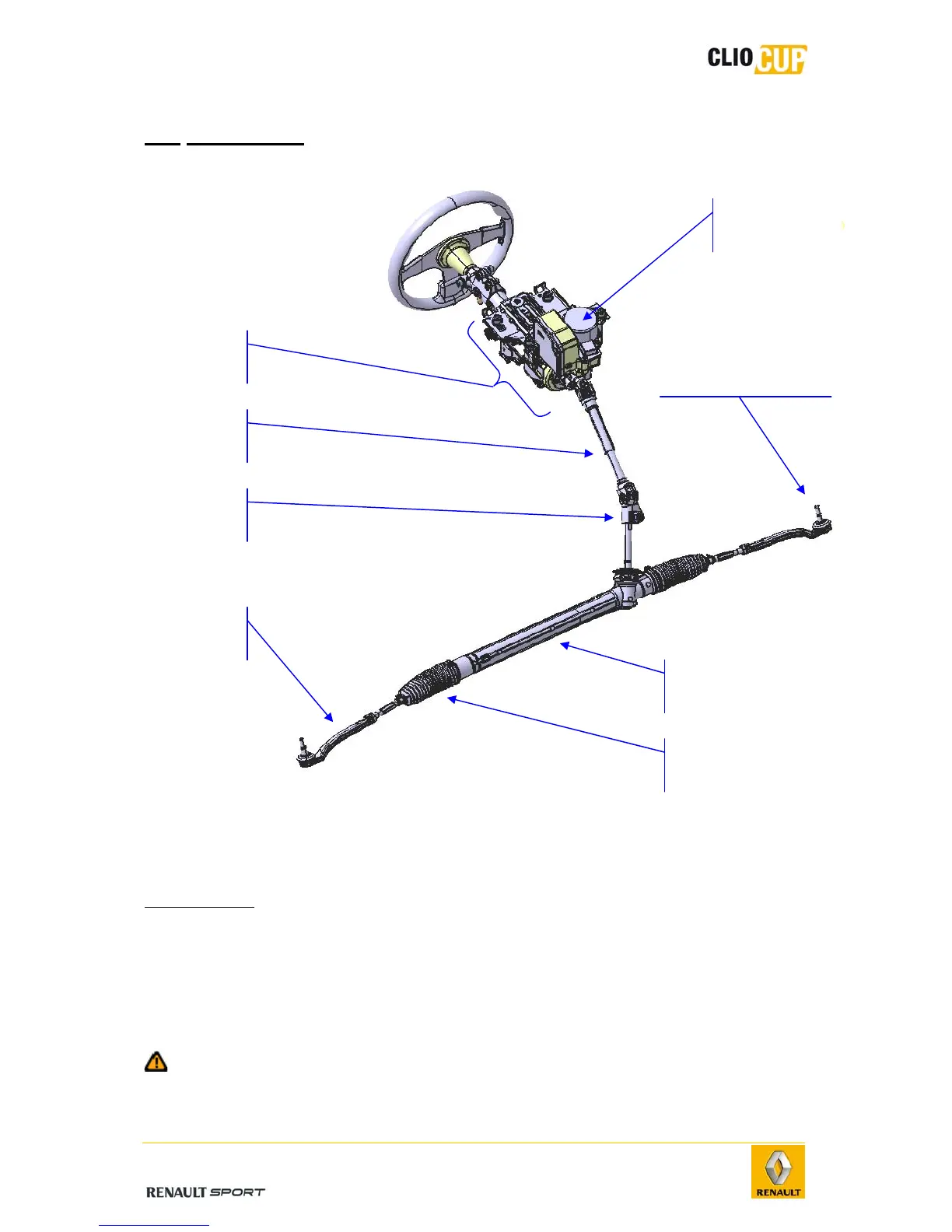

Steering tie-rod ball
joint
Power steering
module
Folding yoke
Intermediate
shaft
Steering
column
Steering unit
Bellows
Steering tie-
rod
