Renault Clio Cup - Front Axle Geometry Inspection

2010 Release
E-7

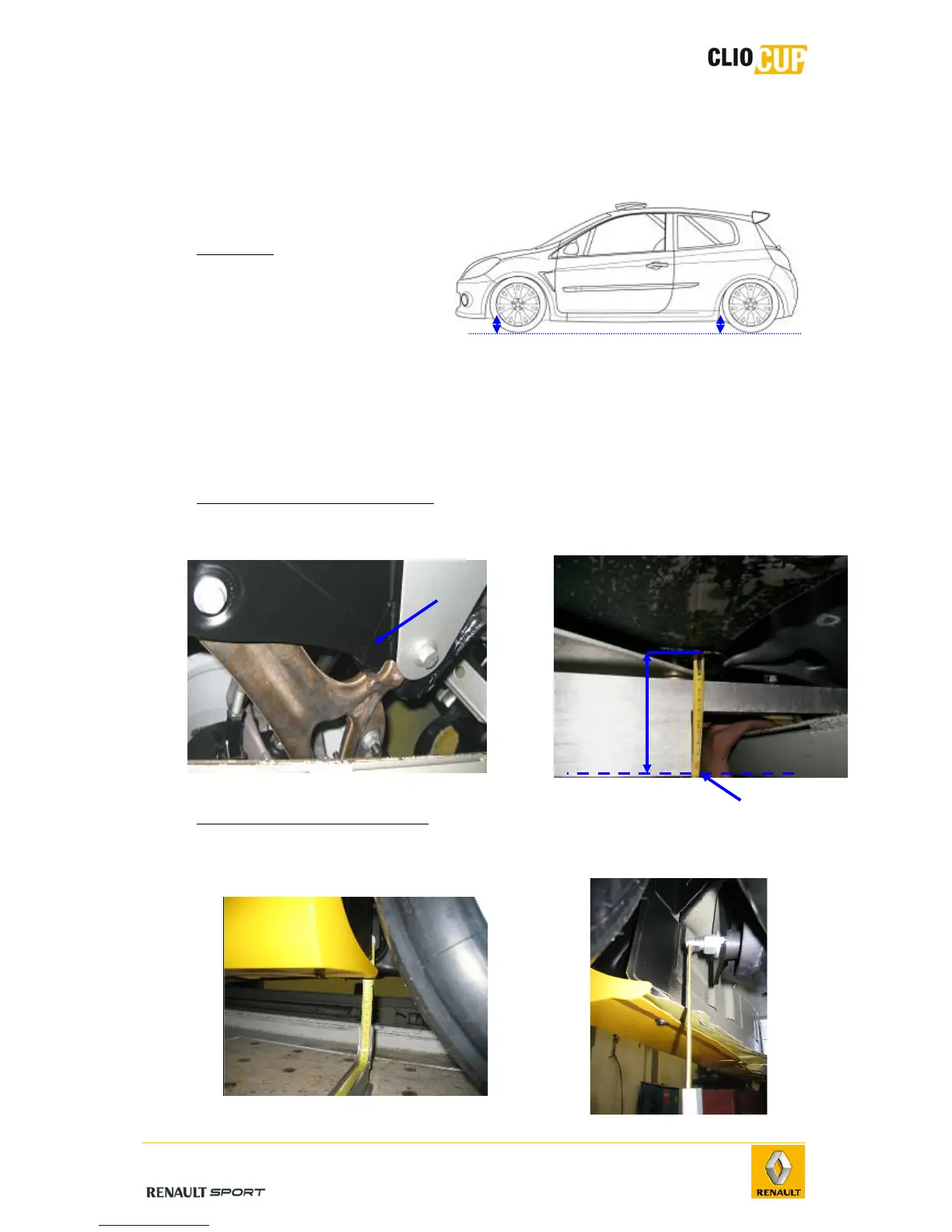

4.2.2 GEOMETRY INSPECTION
Body height measurement
points
- Conditions
Body height measurement is
performed:
 With the driver on
board.
 On a flat surface.
 With 50L of fuel in the
tank.
 With new or identically
worn tyres.
 Tyre pressure at 2 bars.
- Measuring the front body height
The front body height is measured at the level of the lower front wishbone mounting (1).
- Measuring the rear body height
The rear body height is measured at the level of the rear axle point A bolt.
1
Ground projection
under subframe
Front
body
height
Rear
body
height
