Hinges
 Wishbones (6):
• Subframe side: by ball joint link.
• Wheel side: by ball joint link.
 Upper pivot and shock absorber: by ball joint link.
Suspension
 Suspension spring: 75N/mm.
 Bump stop
• length: 35mm,
• diameter: 34mm.
Damping
The shock absorbers are not adjustable, they must not be opened.
They are provided with seal paint. The lack of, or damage to this paint can be considered
as a technical non-compliance.

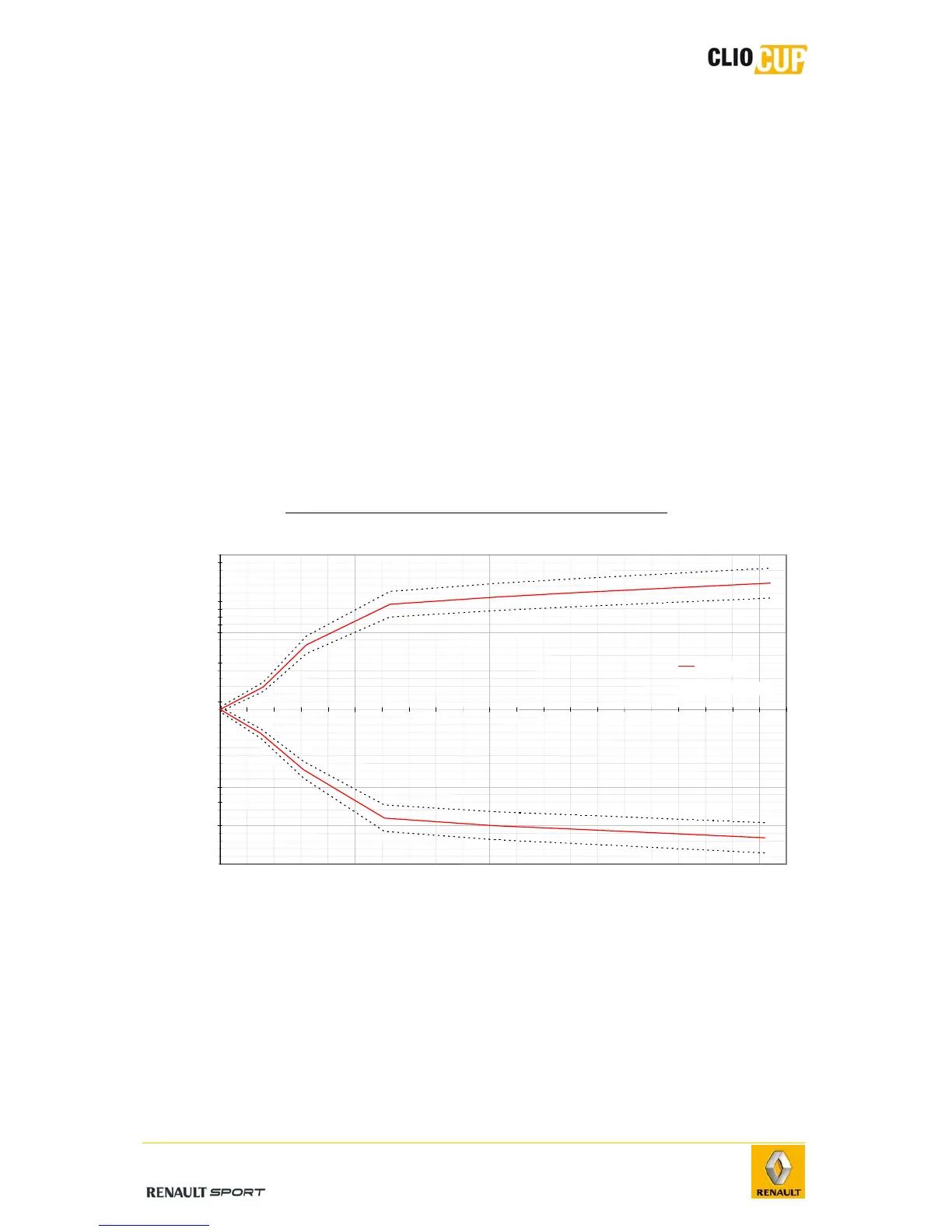

Effect of shock absorber movement speed on stress
-200
-150
-100
-50
0
50
100
150
200
0
0.05
0.1
0.15
0.2
Speed
[
m/s
]
Force
[
daN
]
---- : Tolerance
: Nominal
