Renault Clio Cup - Intermediate Shaft Replacement

2010 Release
E-33
4.4.2 INTERMEDIATE SHAFT
- Removal

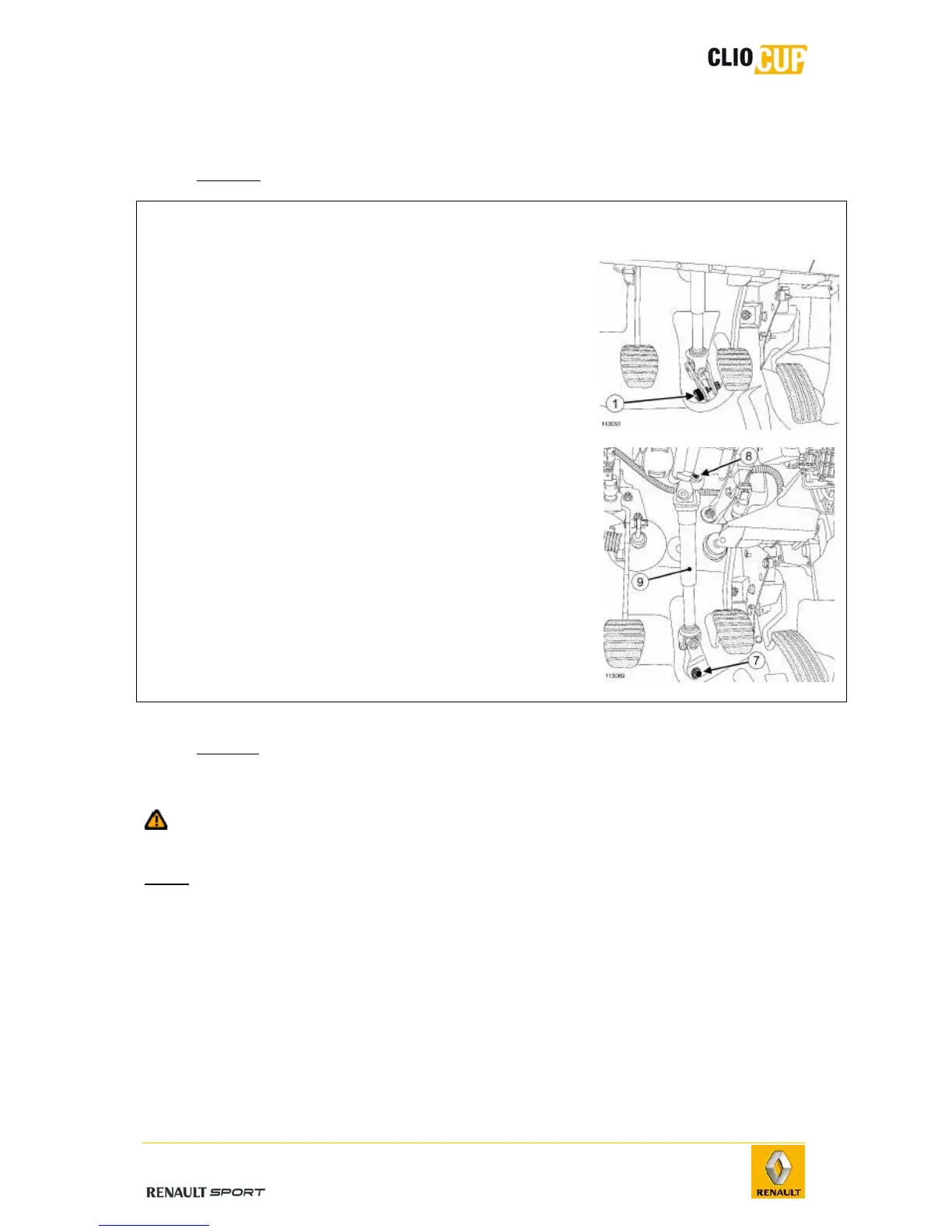

Operations Photos
1 -
Remove the folding yoke bell (1) (discard).
2 -
Set the wheels straight.
3 -
Remove the folding yoke bolt (7) (discard).
4 -
Remove the folding yoke nut (discard).
5 -
Remove the intermediate shaft bolt (8) on the
column.
6 -
Remove the intermediate shaft (9).
- Refitting
Perform the removal steps in reverse order.
Systematically replace the folding yoke bolt (ref 77 03 602 097) and cam nut
after each removal.
Note:
On a new intermediate shaft, the folding yoke cam nut is pre-assembled,
do not remove the bell.
Follow the direction of assembly of the folding yoke bolt and cam nut.
Tightening torques:
 Folding yoke bolt on steering box: 24Nm.
 Bolt on steering column: 32Nm.
