Renault Clio Cup - Rear Brake Service Procedures

2010 Release
E-44

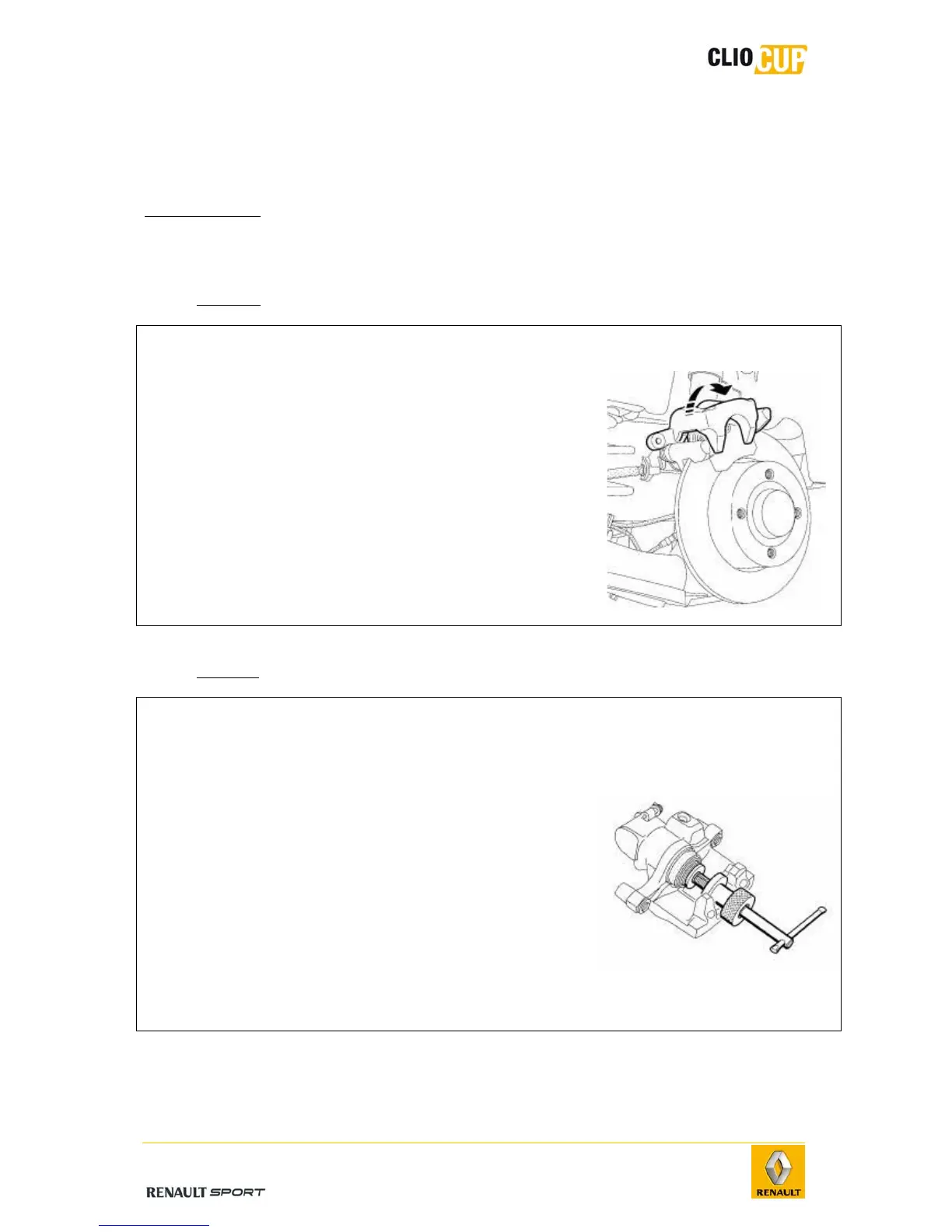

4.5.3 REAR BRAKES
Brake pads
Specialist tools:
 Fre 1190-01 Brake caliper piston driver.
- Removal
Operations Photos
1 -
Remove the wheels.
2 -
Remove the lower small column mountings.
3 -
Swivel the calipers upwards.
4 -
Remove the brake pads.
- Refitting
Operations Photos
1 -
Check pad thickness.
2 -
Clean the caliper supports and the calipers.
3 -
Push caliper piston back into its bore using the Fre
1190-01 tool.
4 -
Fit the pads.
5 -
Swivel the caliper downwards into its initial
position.
6 -
Refit a NEW small column bolt.
7 -
Tighten the small column bolt to 32Nm.
